EX3300S A (EB2) - Honda Generator, Made in Japan (SN: EB2-1000001 - EB2-1099999) CONTROL PANEL Parts Diagram

Generator, Made in Japan

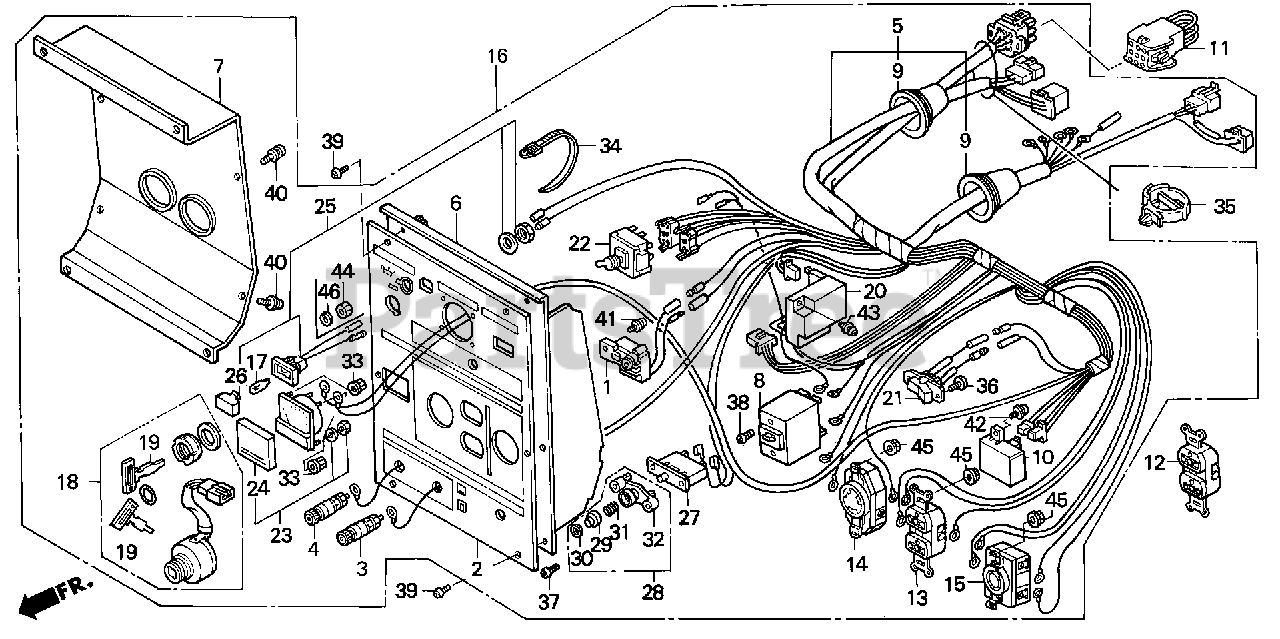

CONTROL PANEL Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

$

$

Not available

2

Honda 31406-ZB7-630

PLATE, CONTROL INDICATION

Note: Use up to Frame SN 1001955.

$

$

Not available

2

Honda 31406-ZB7-631

PLATE, CONTROL INDICATION

Note: Use from Frame SN 1001956.

$

$

Not available

3

Honda 31408-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+)

$48.99

$

Usually ships in 3-6 days

0

4

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31418-ZB7-631

HARNESS ASSY., CONTROL

$

$

Not available

6

Honda 31420-ZB8-631

PANEL, CONTROL (EXS-A)

$

$

Not available

7

Honda 31425-ZB7-003

COVER, CONTROL

$115.99

$

Usually ships in 3-6 days

0

8

Honda 31430-ZB7-630

BREAKER, CIRCUIT (13.5A)

$

$

Not available

9

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$18.99

$

Usually ships in 3-6 days

0

10

Honda 31710-ZB7-A02

SEE PART DETAILS - PRI; DIODE ASSY.

$111.99

$

Usually ships in 3-6 days

0

11

Honda 32130-ZB7-000

CONNECTOR ASSY.

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

12

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A) (MATSUSHITA)

Note: Use up to Frame SN 1002884.

$61.99

$

In Stock, only 1 left!

0

12

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

Note: Use up to Frame SN 1002884.

$61.99

$

In Stock, only 1 left!

0

13

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$72.99

$

Usually ships in 3-6 days

0

14

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$48.99

$

In Stock, only 1 left!

0

15

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

$

$

Not available

16

Honda 32340-ZB7-631

PANEL ASSY., CONTROL

Note: Use up to Frame SN 1005854.

$

$

Not available

16

Honda 32340-ZB7-632

PANEL ASSY., CONTROL

Note: Use from Frame SN 1005855.

$3291.99

$

Usually ships in 3-6 days

0

17

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) Use from Frame SN 1001725.

$3.99

$

In Stock, only 1 left!

0

18

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

$119.99

$

Usually ships in 3-6 days

0

19

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

20

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$267.99

$

Usually ships in 3-6 days

0

21

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$42.99

$

In Stock, only 1 left!

0

22

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$228.99

$

Usually ships in 3-6 days

0

23

Honda 37450-ZB4-651

METER ASSY., VOLT (300V)

$325.99

$

Usually ships in 3-6 days

0

24

Honda 37451-ZB4-003

LENS, METER

$20.99

$

Usually ships in 3-6 days

0

25

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN) Use from Frame SN 1001725.

$47.99

$

Usually ships in 3-6 days

0

26

Honda 37563-ZA0-801

LENS (GREEN) Use from Frame SN 1001725.

$5.49

$

Usually ships in 3-6 days

0

27

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$38.99

$

In Stock, only 4 left!

0

28

Honda 38250-898-000

LENS ASSY., PROTECTOR

$25.99

$

Usually ships in 3-6 days

0

29

Honda 38251-898-000

LENS

$8.99

$

Usually ships in 3-6 days

0

30

Honda 38252-898-000

CAP, LENS

$7.49

$

Usually ships in 3-6 days

0

31

Honda 38253-898-000

SPRING, COIL

$1.99

$

Usually ships in 3-6 days

0

32

Honda 38254-898-000

HOLDER, LENS

$10.99

$

Usually ships in 3-6 days

0

33

Honda 90201-ZB4-003

NUT, FLANGE (3MM) Use from Frame SN 1001725.

Note: Use from Frame SN 1003715.

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

35

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK) (Honda Code 1181965).

$9.99

$

Usually ships in 3-6 days

0

36

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

37

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

39

Honda 93500-05010-0G

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93892-04008-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X8) (Honda Code 0634618).

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

42

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

42

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

44

Honda 94001-03080-0S

NUT, HEX. (3MM)

Note: Use up to Frame SN 1003714.

$

$

Not available

45

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

46

Honda 94111-03800

WASHER, SPRING (3MM) (Honda Code 0285668).

Note: Use up to Frame SN 1003649.

$0.99

$

Usually ships in 3-6 days

0
