Ex3200 (54ACC4M-727) - Cub Cadet Yanmar Ex Series Compact Tractor Side Cover Parts Diagram

Ex Series Compact Tractor

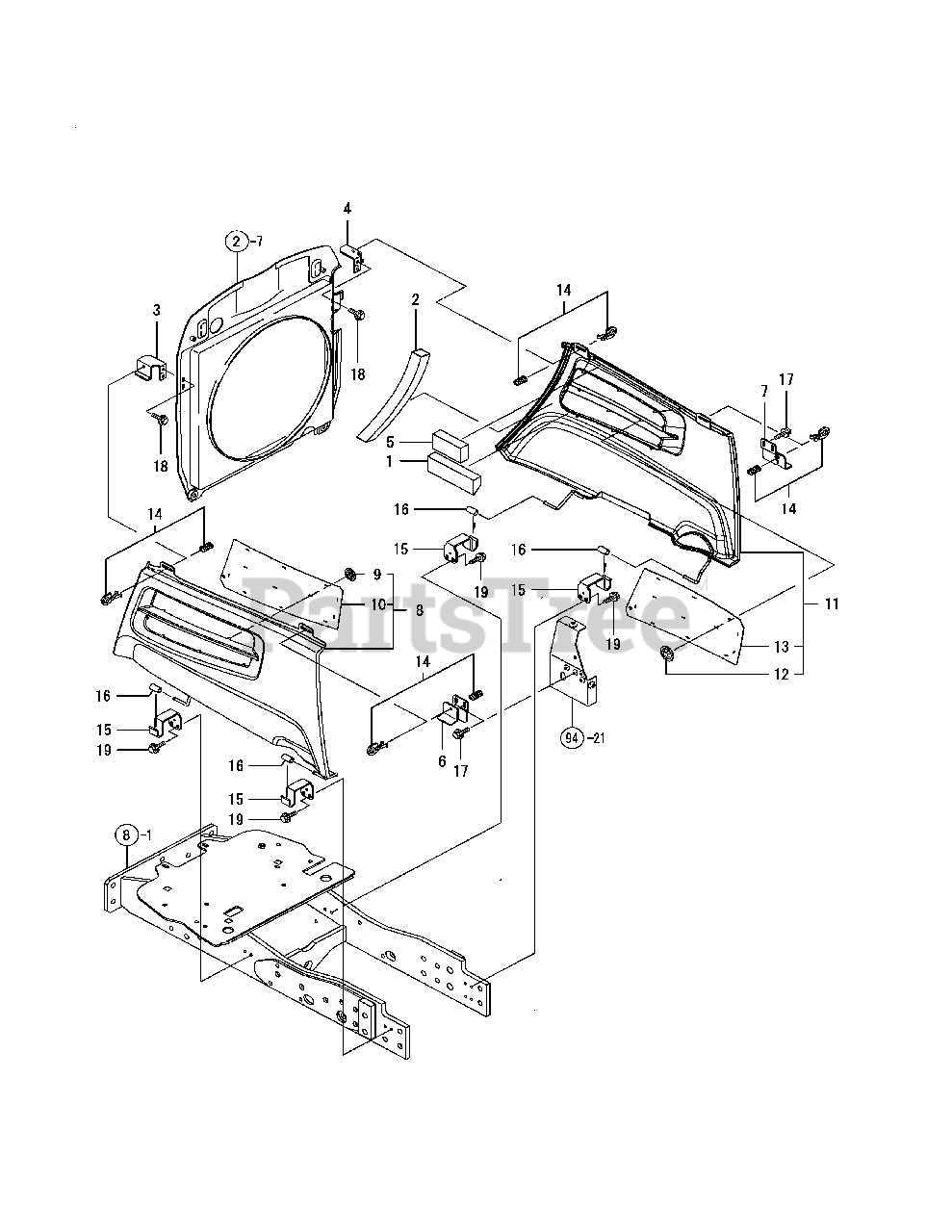

Side Cover Parts Diagram

  • Title

1

Cub Cadet CY-1A7260-60640

URETHANE, A COVER

$

$

Not available

2

Cub Cadet CY-1A7260-60670

URETHANE, B COVER

$

$

Not available

3

Cub Cadet CY-1A7260-60780

BRACKET, L
(Superseded to CY-1A7260607801)

$

$

Not available

4

Cub Cadet CY-1A7260-60790

BRACKET, R
(Superseded to CY-1A7260607901)

$

$

Not available

5

Cub Cadet CY-1A7260-60900

URETHANE, C COVER

$

$

Not available

6

Cub Cadet CY-1A7260-60920

BRACKET, L.H. COVER
(Superseded to CY-1A7260609201)

$

$

Not available

7

Cub Cadet CY-1A7260-60930

BRACKET, R.H. COVER
(Superseded to CY-1A7260609301)

$

$

Not available

8

Cub Cadet CY-1A8160-61000

COVER (M ASSY SIDE L)

$

$

Not available

9

Cub Cadet CY-198129-05190

NUT, PUSH 6

$

$

Not available

10

Cub Cadet CY-1A7260610601

NET, L SIDE COVER

$

$

Not available

11

Cub Cadet CY-1A8160-61010

COVER (M ASSY,SIDE R)

$

$

Not available

12

Cub Cadet CY-198129-05190

NUT, PUSH 6

$

$

Not available

13

Cub Cadet CY-1A7260610701

NET, R SIDE COVER

$

$

Not available

14

Cub Cadet CY-198220-61351

LOCK COMP.,CAM

$

$

Not available

15

Cub Cadet CY-1A8160-61400

STAY, SIDE COVER

$

$

Not available

16

Cub Cadet CY-198220-61800

RUBBER, CUSHION

$

$

Not available

17

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

18

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

19

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

Note: 2-7 Refer to ENGINE ACCESSORIES MOUNTING, Ref No 7

$

$

Not available

Note: 8-1 Refer to FRONT FRAME COMPLETE, Ref No 1

$

$

Not available

Note: 94-21 Refer to HOOD FRAME, Ref No 21

$

$

Not available
