Ex3200 (54ABC4ML727) - Cub Cadet Yanmar Ex Series Compact Tractor Hydrostatic Transmission (HST) 1 Parts Diagram

Ex Series Compact Tractor

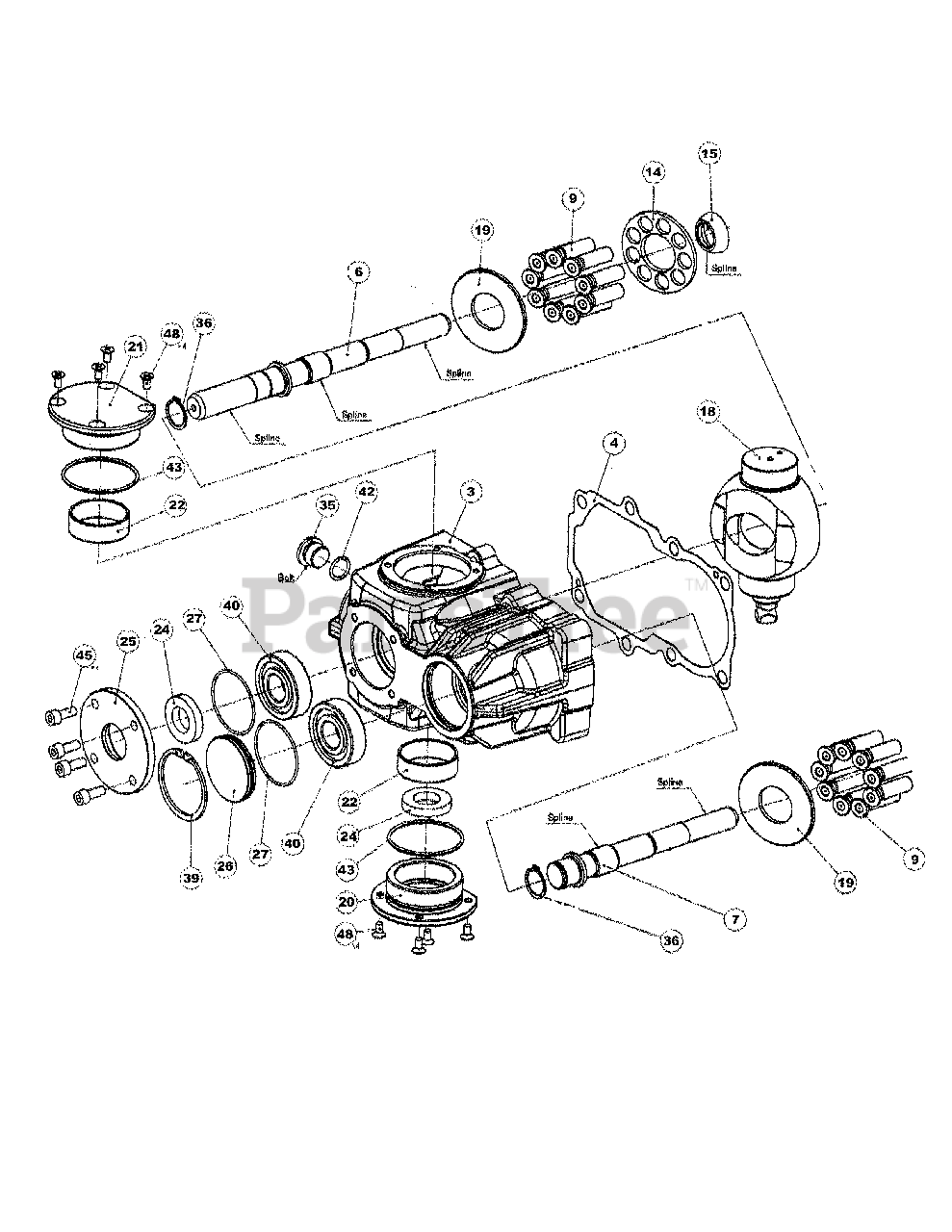

Hydrostatic Transmission (HST) 1 Parts Diagram

  • Title

1

Cub Cadet CY-1A6750-29850

Plug PF3/8

Note: Included in Center Section Kit (CY-168HJ1-29030)

$

$

Not available

2

Cub Cadet N/A

Center section

Note: Included in Center Section Kit (CY-168HJ1-29030)

$

$

Currently unavailable

3

Cub Cadet N/A

Housing

Note: Included in Housing Kit (CY-168HJ1-29040)

$

$

Currently unavailable

4

Cub Cadet N/A

Housing packing

Note: Included in Seal Kit (CY-168HJ1-29060)

$

$

Currently unavailable

5

Cub Cadet N/A

Pin 4 x 14

Note: Included in Center Section Kit (CY-168HJ1-29030)

$

$

Currently unavailable

6

Cub Cadet N/A

Input shaft

Note: Included in Input Kit (CY-168HJ1-29070)

$

$

Currently unavailable

7

Cub Cadet N/A

Shaft

Note: Included in Output Kit (CY-168HJ1-29080)

$

$

Currently unavailable

8

Cub Cadet CY-158800-85071

Needle bearing

Note: Included in Center Section Kit (CY-168HJ1-29030)

$

$

Not available

9

Cub Cadet N/A

Plunger assembly

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

10

Cub Cadet N/A

Plunger spring

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

11

Cub Cadet N/A

Spring retainer

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

12

Cub Cadet N/A

Plunger block

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

13

Cub Cadet N/A

Pin

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

14

Cub Cadet N/A

Retainer

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

15

Cub Cadet N/A

Retainer washer

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Currently unavailable

16

Cub Cadet CY-158805-85211

Valve plate

$

$

Not available

17

Cub Cadet CY-158805-85221

Valve plate

$

$

Not available

18

Cub Cadet CY-158805-85300

Plate

$

$

Not available

19

Cub Cadet CY-158800-85320

Thrust plate

$

$

Not available

20

Cub Cadet N/A

Cover

Note: Included in Trunion Cover A Kit (CY-168HJ1-29090)

$

$

Currently unavailable

21

Cub Cadet N/A

Cover

Note: Included in Trunion Cover B Kit (CY-168HJ1-29100)

$

$

Currently unavailable

22

Cub Cadet N/A

Bush

Note: Included in Trunion Cover A Kit (CY-168HJ1-29090), Included in Trunion Cover B Kit (CY-168HJ1-29100)

$

$

Currently unavailable

23

Cub Cadet CY-158802-85421

Seal 20 x 35 x 8

Note: Included in Seal Kit (CY-168HJ1-29060)

$

$

Not available

24

Cub Cadet CY-158805-85420

Seal 25 x 45 x 8

Note: Included in Seal Kit (CY-168HJ1-29060)

$

$

Not available

25

Cub Cadet CY-168HJ1-85460

Seal cover

$

$

Not available

26

Cub Cadet CY-168HJ1-85480

Cap

$

$

Not available

27

Cub Cadet CY-168HJ1-85490

O-ring S58.2

Note: Included in Seal Kit (CY-168HJ1-29060)

$

$

Not available

28

Cub Cadet N/A

Neutral and Check Relief (NCR) valve + 0.7

Note: Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

29

Cub Cadet N/A

Spring (Check valve)

Note: Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

30

Cub Cadet N/A

Plug

Note: Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

31

Cub Cadet N/A

Retainer

Note: Included in Center Section Kit (CY-168HJ1-29030), Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

32

Cub Cadet N/A

Valve spring

Note: Included in Center Section Kit (CY-168HJ1-29030), Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

33

Cub Cadet N/A

Valve assembly

Note: Included in Center Section Kit (CY-168HJ1-29030), Included in Valve Kit (CY-168HJ1-29050)

$

$

Currently unavailable

34

Cub Cadet CY-158802-85880

Pin 6 x 12

$

$

Not available

35

Cub Cadet CY-158830-85960

Plug

$

$

Not available

36

Cub Cadet CY-22242-000250

Ring 25

Note: Included in Input Kit (CY-168HJ1-29070), Included in Output Kit (CY-168HJ1-29080)

$

$

Not available

37

Cub Cadet CY-22252-000320

Ring 32

Note: Included in Plunger Block Kit (CY-158810-85140)

$

$

Not available

38

Cub Cadet CY-22252-000360

Ring 36

$

$

Not available

39

Cub Cadet CY-22252-000650

Ring 65

$

$

Not available

40

Cub Cadet N/A

Bearing 6305 C3NTN

Note: Included in Input Kit (CY-168HJ1-29070), Included in Output Kit (CY-168HJ1-29080)

$

$

Currently unavailable

41

Cub Cadet CY-24315-000140

Packing P 14.0

Note: Included in Seal Kit (CY-168HJ1-29060)

$

$

Not available

42

Cub Cadet CY-24315-000180

Packing P 18.0

Note: Included in Valve Kit (CY-168HJ1-29050), Included in Seal Kit (CY-168HJ1-29060)

$

$

Not available

43

Cub Cadet CY-24321-000650

Packing G 65.0

Note: Included in Seal Kit (CY-168HJ1-29060), Included in Trunion Cover A Kit (CY-168HJ1-29090), Included in Trunion Cover B Kit (CY-168HJ1-29100)

$

$

Not available

44

Cub Cadet N/A

Bolt 6 x 10

Note: Included in Center Section Kit (CY-168HJ1-29030)

$

$

Currently unavailable

45

Cub Cadet CY-26450-080202

Bolt 8 x 20

$

$

Not available

46

Cub Cadet CY-26450-100402

Bolt 10 x 40

$

$

Not available

47

Cub Cadet CY-26450-100452

Bolt 10 x 45

$

$

Not available

48

Cub Cadet CY-26577-060122

Screw 6 x 12

Note: Included in Trunion Cover A Kit (CY-168HJ1-29090), Included in Trunion Cover B Kit (CY-168HJ1-29100)

$

$

Not available

Cub Cadet CY-168HJ1-29030

Center section kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29040

Housing kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-158810-85140

Plunger block kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29050

Valve kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29060

Seal kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29070

Input kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29080

Output kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29090

Trunion cover A kit

Note: Not Shown

$

$

Not available

Cub Cadet CY-168HJ1-29100

Trunion cover B kit

Note: Not Shown

$

$

Not available
