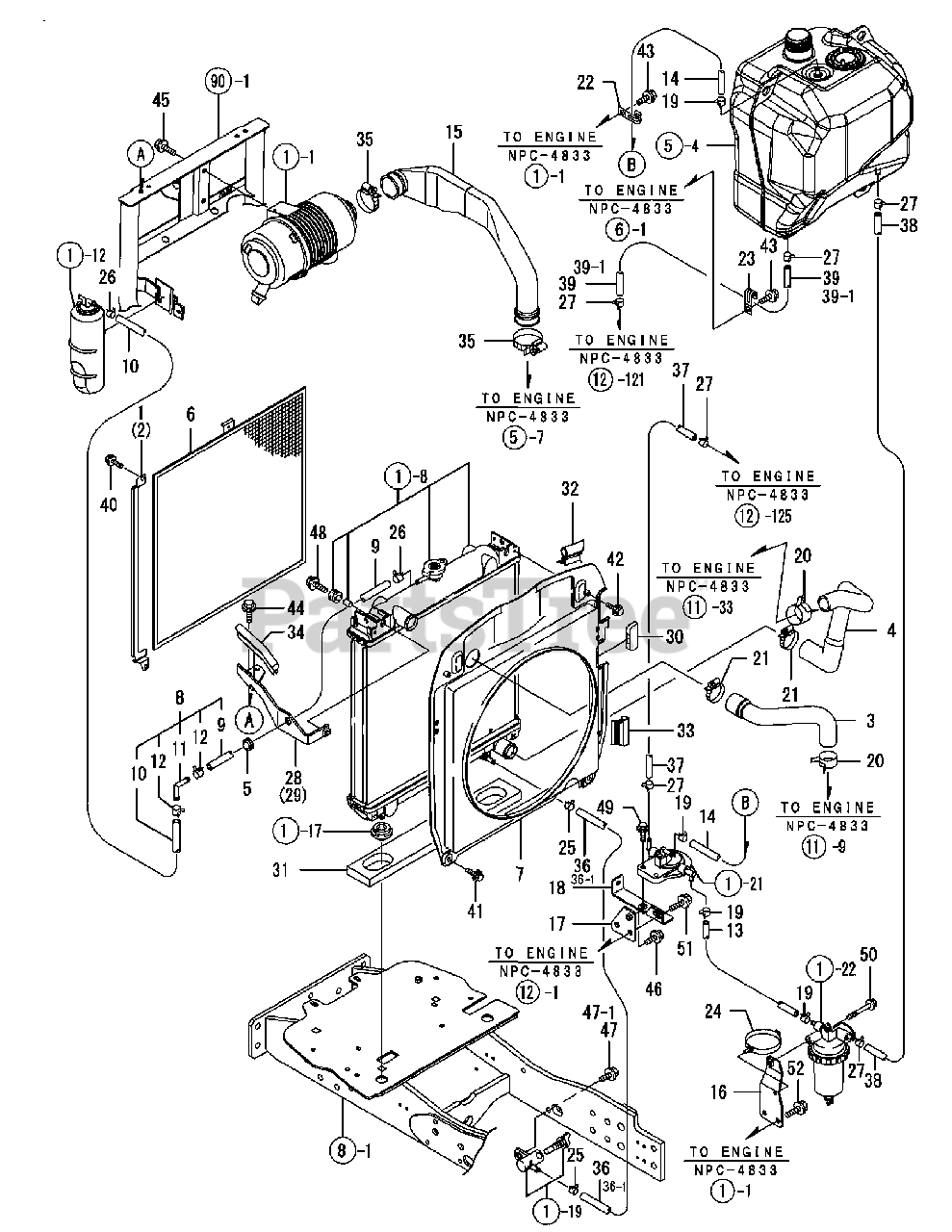

Ex3200 (54AAC4MK727) - Cub Cadet Yanmar Ex Series Compact Tractor Engine Accessories Mounting Parts Diagram

Ex Series Compact Tractor

Engine Accessories Mounting Parts Diagram

  • Title

1

Cub Cadet CY-1A7260-01030

RAIL, RADIATOR L

$

$

Not available

2

Cub Cadet CY-1A7260-01040

RAIL, RADIATOR R

$

$

Not available

3

Cub Cadet CY-1A8160-01210

HOSE, UPPER

$

$

Not available

4

Cub Cadet CY-1A7260-01220

HOSE, LOWER

$

$

Not available

5

Cub Cadet CY-194180-01240

GROMMET 13
(Superseded to CY-1E6140-75260)

$

$

Not available

6

Cub Cadet CY-1A7260-01250

SCREEN, RADIATOR

$

$

Not available

7

Cub Cadet CY-1A8160-01300

SHROUD, FAN

$

$

Not available

8

Cub Cadet CY-1A7260-03151

HOSE ASSY, OVERFLOW

$

$

Not available

9

Cub Cadet CY-1A7260-03160

HOSE, OVERFLOW A

$

$

Not available

10

Cub Cadet CY-1A7260-03170

HOSE, OVERFLOW B

$

$

Not available

11

Cub Cadet CY-1A7260-03180

ELBOW,

$

$

Not available

12

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

13

Cub Cadet CY-1A8160-04430

HOSE A,FUEL

$

$

Not available

14

Cub Cadet CY-1A8160-04440

HOSE B,FUEL

$

$

Not available

15

Cub Cadet CY-1A8160-06200

INTAKE PIPE

$

$

Not available

16

Cub Cadet CY-1A8160-11240

BRACKET, SEPARETOR

$

$

Not available

17

Cub Cadet CY-1A8160-11270

BRACKET A, FILTER

$

$

Not available

18

Cub Cadet CY-1A8160-11290

BRACKET B, FILTER

$

$

Not available

19

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

20

Cub Cadet CY-121267-49500

BAND, HOSE 38
(Superseded to CY-23010-038001)

$

$

Not available

21

Cub Cadet CY-175022-49750

CLIP 37, HOSE

$

$

Not available

22

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

23

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

24

Cub Cadet CY-194680-51670

BAND

$

$

Not available

25

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

26

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

27

Cub Cadet CY-124766-59050

CLAMP 12

$

$

Not available

28

Cub Cadet CY-1A7260-60211

STAY ASSY, L.H.

$

$

Not available

29

Cub Cadet CY-1A7260-60221

STAY ASSY, R.H.

$

$

Not available

30

Cub Cadet CY-1A8160-60720

GROMMET SHROUD

$

$

Not available

31

Cub Cadet CY-1A7260-60860

URETHANE, RADIATOR

$

$

Not available

32

Cub Cadet CY-1A7260-61860

WEATHER-STRIP, A

$

$

Not available

33

Cub Cadet CY-1A7260-61970

WEATHER-STRIP, B

$

$

Not available

34

Cub Cadet CY-174570-63620

WEATHER-STRIP, 195

$

$

Not available

35

Cub Cadet CY-23000-070000

CLAMP 70

$

$

Not available

36

Cub Cadet CY-23980-730270

HOSE, 7.3 X 270

Note: S/N F000155 & BELOW

$

$

Not available

36-1

Cub Cadet CY-23980-730250

HOSE, 7.3 X 250

Note: S/N F000156 & ABOVE

$

$

Not available

37

Cub Cadet CY-23980-730270

HOSE, 7.3 X 270

$

$

Not available

38

Cub Cadet CY-23980-730330

HOSE 7.3,BRAIDED

$

$

Not available

39

Cub Cadet CY-23980-730850

HOSE, 7.3 X 850

Note: S/N F000155 & BELOW

$

$

Not available

39-1

Cub Cadet CY-23980-730890

HOSE, 7.3 X 890

Note: S/N F000156 & ABOVE

$

$

Not available

40

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

41

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

42

Cub Cadet CY-26106-060252

BOLT M 6X 25 PLATED

$

$

Not available

43

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

44

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

45

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

46

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

47

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

Note: S/N F000155 & BELOW

$

$

Not available

47-1

Cub Cadet CY-26106-080302

BOLT M 8X 30 PLATED

Note: S/N F000156 & ABOVE

$

$

Not available

48

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

49

Cub Cadet CY-26106-080252

BOLT M 8X 25 PLATED

$

$

Not available

50

Cub Cadet CY-26106-080702

BOLT M 8X 70 PLATED

$

$

Not available

51

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

52

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

Cub Cadet CY-29622-140001

BAND 140

Note: S/N F000156 & ABOVE, Not shown

$

$

Not available

Note: 1-1 Refer to ENGINE ACCESSORIES, Ref No 1

$

$

Not available

Note: 1-8 Refer to ENGINE ACCESSORIES, Ref No 8

$

$

Not available

Note: 1-12 Refer to ENGINE ACCESSORIES, Ref No 12

$

$

Not available

Note: 1-17 Refer to ENGINE ACCESSORIES, Ref No 17

$

$

Not available

Note: 1-19 Refer to ENGINE ACCESSORIES, Ref No 19

$

$

Not available

Note: 1-21 Refer to ENGINE ACCESSORIES, Ref No 21

$

$

Not available

Note: 1-22 Refer to ENGINE ACCESSORIES, Ref No 22

$

$

Not available

Note: 8-1 Refer to FRONT FRAME COMPLETE, Ref No 1

$

$

Not available

Note: 90-1 Refer to FRONT FRAME ASSEMBLY, Ref No 1

$

$

Not available

Note: (NPC-4833) 1-1 CYLINDER BLOCK, Ref No 1

$

$

Not available

Note: (NPC-4833) 5-7 INTAKE MANIFOLD, Ref No 7

$

$

Not available

Note: (NPC-4833) 6-1 EXHAUST MANIFOLD & MUFFLER, Ref No 1

$

$

Not available

Note: (NPC-4833) 11-9 COOLING WATER SYSTEM, Ref No 9

$

$

Not available

Note: (NPC-4833) 11-33 COOLING WATER SYSTEM, Ref No 33

$

$

Not available

Note: (NPC-4833) 12-1 FUEL INJECTION PUMP, Ref No 1

$

$

Not available

Note: (NPC-4833) 12-121 FUEL INJECTION PUMP, Ref No 121

$

$

Not available

Note: (NPC-4833) 12-125 FUEL INJECTION PUMP, Ref No 125

$

$

Not available
