Ex3200 (54AAC4M-727) - Cub Cadet Yanmar Ex Series Compact Tractor Power Steering Valve Parts Diagram

Ex Series Compact Tractor

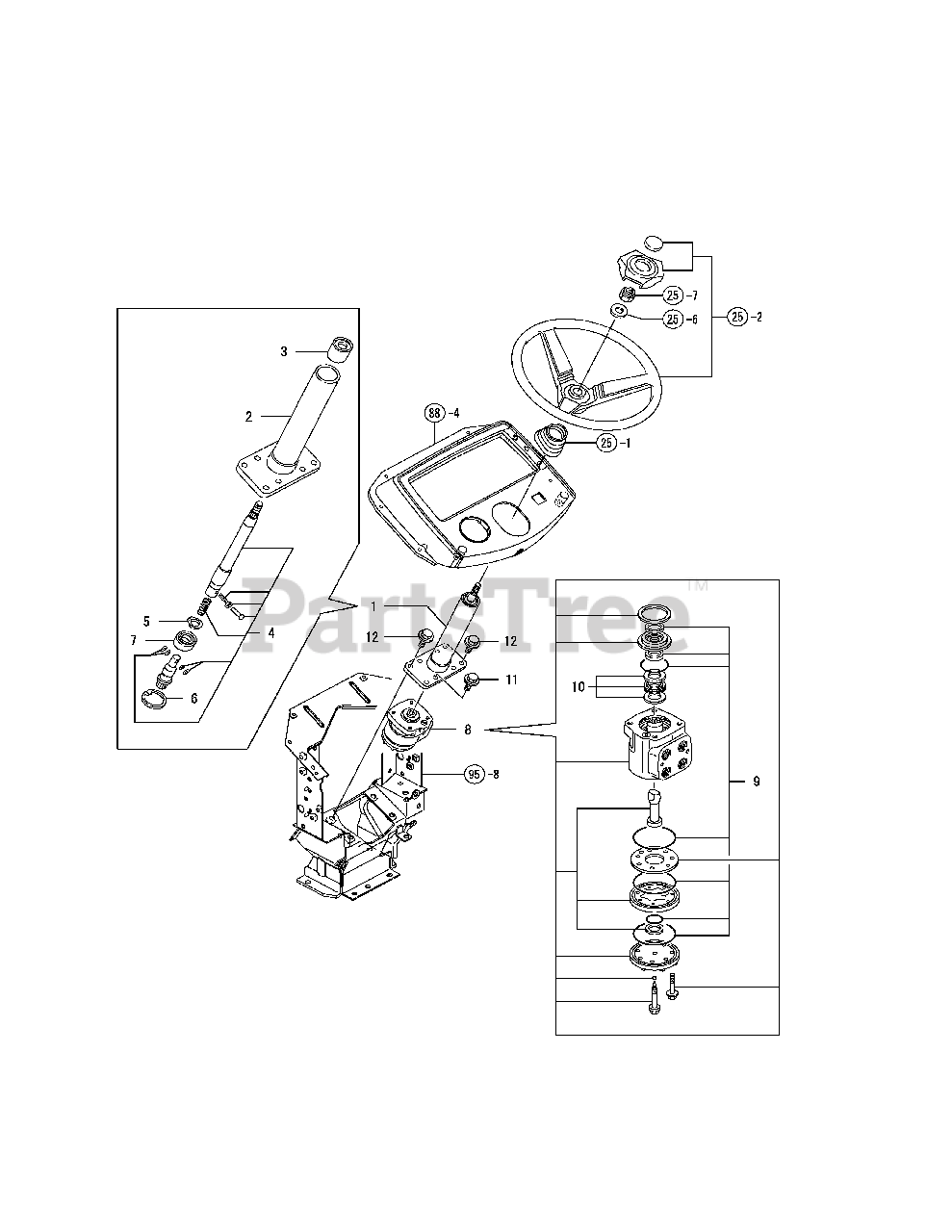

Power Steering Valve Parts Diagram

  • Title
1

Cub Cadet CY-198230-17301

COLUMN, STEERING

$

$

Not available

$

$

Not available

3

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

7

$

$

Not available

8

Cub Cadet CY-1A8160-17500

VALVE ASSY, STEERING

$

$

Not available

$

$

Not available

10

Cub Cadet CY-198153-17630

BEARING COMP., NEEDLE

$

$

Not available

11

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

12

Cub Cadet CY-26106-100202

BOLT M10X 20 PLATED

$

$

Not available

Note: 25-1 Refer to STEERING WHEEL, Ref No 1

$

$

Not available

Note: 25-2 Refer to STEERING WHEEL, Ref No 2

$

$

Not available

Note: 25-6 Refer to STEERING WHEEL, Ref No 6

$

$

Not available

Note: 25-7 Refer to STEERING WHEEL, Ref No 7

$

$

Not available

Note: 88-4 Refer to INSTRUMENT PANEL, Ref No 4

$

$

Not available

Note: 95-8 Refer to DASHBOARD, Ref No 8

$

$
