EX300D52011 (EX30) - Subaru Robin Engine 640 Carburetor Parts Diagram

Engine

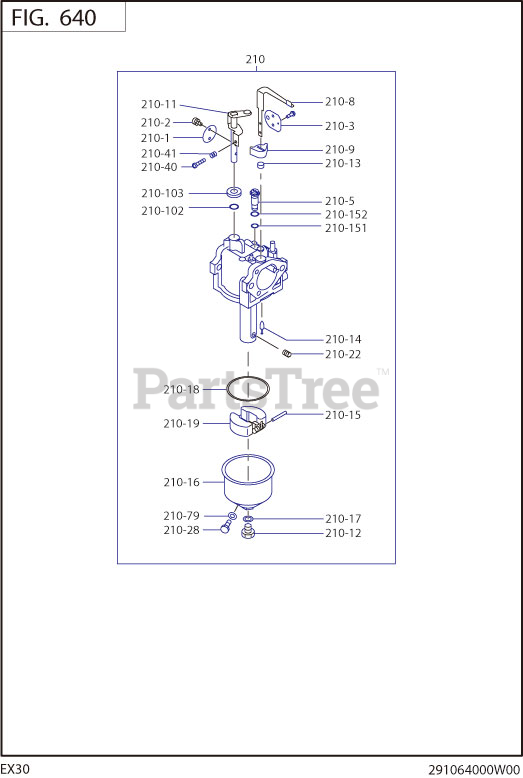

640 Carburetor Parts Diagram

  • Title

210-28

Subaru Robin 285-62551-08

DRAIN SCREW

Note: End Code: 7084.

$11.99

$

In Stock, only 1 left!

0

210-40

Subaru Robin 279-62353-18

SCREW ADJUSTING

Note: End Code: 7084.

$3.99

$

Usually ships in 2-12 days

0

210-41

Subaru Robin 279-62445-08

SPRING

Note: End Code: 7084.

$6.49

$

Usually ships in 2-12 days

0

210-79

Subaru Robin 285-62552-08

GASKET

Note: End Code: 7084.

$

$

Not available

210-102

Subaru Robin 279-62561-08

BUSH

Note: End Code: 7084.

$10.99

$

Usually ships in 2-12 days

0

210-103

Subaru Robin 279-62562-08

COLLAR

Note: End Code: 7084.

$4.49

$

Usually ships in 2-12 days

0

210-151

Subaru Robin 279-62451-08

O-RING

Note: End Code: 7084.

$6.99

$

In Stock, only 1 left!

0

210-19

Subaru Robin 279-62505-08

FLOAT SUB ASSY

Note: End Code: 7084.

$45.99

$

In Stock, only 1 left!

0

210-152

Subaru Robin 279-62452-08

O-RING

Note: End Code: 7084.

$10.99

$

Usually ships in 2-12 days

0

210-8

Subaru Robin 279-62570-18

LEVER CHOKE

Note: End Code: 7084.

$40.99

$

Usually ships in 2-12 days

0

210-0

Subaru Robin 279-62304-40

CARBURETOR AY

Note: End Code: 7084.

$229.99

$

In Stock, only 2 left!

0

210-1

Subaru Robin 279-62535-08

VALVE THROTTLE

Note: End Code: 7084.

$6.99

$

Usually ships in 2-12 days

0

210-2

Subaru Robin 251-62450-08

SCREW

Note: End Code: 7084.

$3.49

$

Usually ships in 2-12 days

0

210-5

Subaru Robin 279-62420-08

JET SLOW

Note: End Code: 7084. Remarks: #40.

$18.99

$

Usually ships in 2-12 days

0

210-22

Subaru Robin 279-62400-08

JET MAIN

Note: End Code: 7084. Remarks: #98.

$

$

Not available

210-9

Subaru Robin 279-62563-18

COLLER SHAFT1

Note: End Code: 7084.

$7.99

$

Usually ships in 2-12 days

0

210-11

Subaru Robin 279-62530-08

SHAFT SUB ASSY(TH)

Note: End Code: 7084.

$

$

Not available

210-12

Subaru Robin 251-62453-08

SCREW

Note: End Code: 7084.

$11.99

$

Usually ships in 2-12 days

0

210-13

Subaru Robin 279-62564-08

COLLAR SHAFT2

Note: End Code: 7084.

$4.49

$

Usually ships in 2-12 days

0

210-14

Subaru Robin 279-62500-08

VALVE ASSY NEEDLE

Note: End Code: 7084.

$43.99

$

In Stock, only 1 left!

0

210-15

Subaru Robin 279-62515-08

PIN FLOAT LEVER

Note: End Code: 7084.

$10.99

$

Usually ships in 2-12 days

0

210-16

Subaru Robin 285-62550-08

FLOAT CHAMBER SUB AY

Note: End Code: 7084.

$66.99

$

In Stock, only 1 left!

0

210-17

Subaru Robin 251-62350-08

GASKET

Note: End Code: 7084.

$3.49

$

Usually ships in 2-12 days

0

210-18

Subaru Robin 279-62540-08

GASKET CHAMBER

Note: End Code: 7084.

$14.99

$

Usually ships in 2-12 days

0

210-3

Subaru Robin 279-62526-08

VALVE CHOKE

Note: End Code: 7084.

$5.00

$

Usually ships in 2-12 days

0
