EX300D52011 (EX30) - Subaru Robin Engine 200 Crankshaft Parts Diagram

Engine

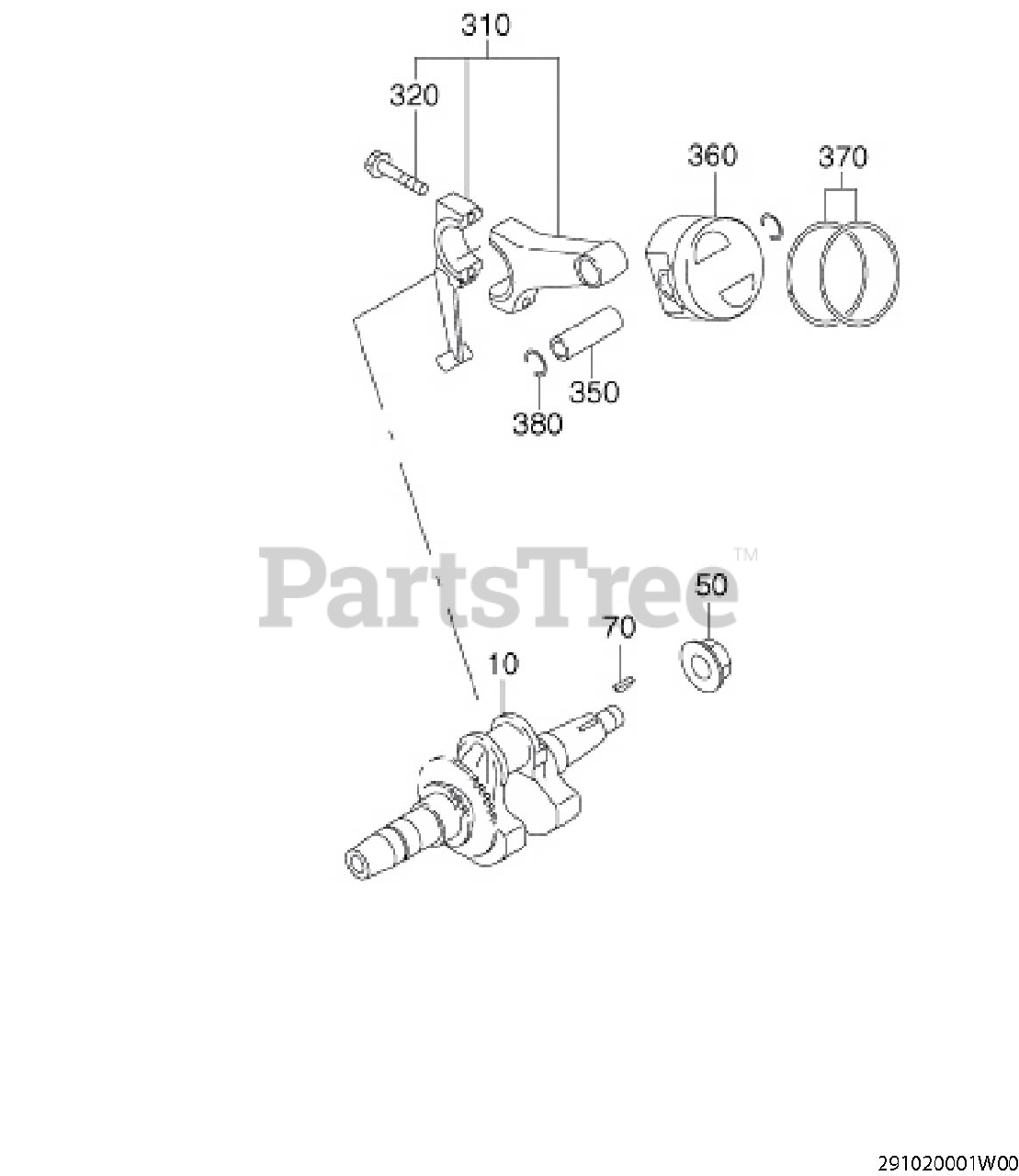

200 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 291-21201-01

CRANK SHAFT CP

Note: Remarks: L=342 22.1DX1/5.3TAP.

$620.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 018-01800-10

FLANGE NUT

Note: Remarks: M18X1.5X31DX14H.

$11.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$4.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 291-22501-00

CONNECTING ROD AY

Note: Remarks: 104.5CDX26B 34.5D-18.

$187.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 279-23001-03

CONNECTING ROD BOLT

Note: Remarks: M7X1.0X13.8DX40L.

$12.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 279-23301-13

PISTON PIN

Note: Remarks: 18DX13DX53L.

$16.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 291-23401-H3

PISTON

Note: Remarks: STD (75DX38.5H).

$78.99

$

Usually ships in 2-12 days

0

370

Subaru Robin 291-23501-07

PISTON RING SET

Note: Remarks: STD (75D).

$60.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51800-10

CLIP

Note: Remarks: 18.9DX1.6D.

$1.49

$

In Stock, Qty 10

0
