Subaru Robin EX300D20110 (EX30) - Subaru Robin Engine 302 Intake & Exhaust Parts Lookup with Diagrams

10

Subaru Robin 279-31602-11

CAM SHAFT CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 93DX2.9B N=44.

$140.58

$

Usually ships in 2-12 days

23

Subaru Robin 277-35101-01

PIN(CAM SHAFT)CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$21.99

$

Usually ships in 2-12 days

27

Subaru Robin 024-00600-10

O RING

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.8DX9.6D.

$2.49

$

In Stock, only 1 left!

34

Subaru Robin 277-38601-03

PIN(SPRING)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4DX8DX9L.

$1.49

$

Usually ships in 2-12 days

35

Subaru Robin 279-36401-03

RELEASE LEVER

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$26.99

$

Usually ships in 2-12 days

37

Subaru Robin 277-36501-03

CLIP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 13.8DX20.3DX0.4T.

$1.99

$

In Stock, Qty 10

38

Subaru Robin 279-38701-13

RETURN SPRING

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5.3DX0.6DX5.5L N=5.7.

$1.49

$

Usually ships in 2-12 days

60

Subaru Robin 279-33601-03

VALVE SPRING

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 19.2DX2.3DX27.4L.

$10.99

$

Usually ships in 2-12 days

70

Subaru Robin 269-33701-03

SPRING RETAINER

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.99

$

In Stock, only 1 left!

80

Subaru Robin 279-33401-H3

INTAKE VALVE

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 28.5DX5.5DX67.8L.

$

Not available 

90

Subaru Robin 279-33501-H3

EXHAUST VALVE

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 26.5DX5.5DX67.8L.

$

Not available 

95

Subaru Robin 132-10KA0-31

COLLET-VALVE

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.99

$

In Stock, only 1 left!

150

Subaru Robin 291-35601-01

TIMING CHAIN CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$61.99

$

Usually ships in 2-12 days

160

Subaru Robin 277-36911-03

TENTIONER

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.49

$

In Stock, only 1 left!

163

Subaru Robin 277-37101-03

SPRING(TENTIONER)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10DX1.8DX14L N=4.5.

$

Not available 

166

Subaru Robin 277-36902-03

PIN(TENTIONER)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX13DX34L.

$5.49

$

In Stock, only 2 left!

170

Subaru Robin 277-36913-13

CHAIN GUIDE

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

200

Subaru Robin 277-35004-01

PIN(ROCKER) CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

202

Subaru Robin 003-13050-00

CLIP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX11DX0.6T.

$0.99

$

In Stock, only 4 left!

220

Subaru Robin 277-36201-00

ROCKER ARM(IN) AY

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$45.99

$

In Stock, only 1 left!

225

Subaru Robin 277-36202-00

ROCKER ARM(EX) AY

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

230

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X23L.

$4.49

$

Usually ships in 2-12 days

231

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X23L.

$4.49

$

Usually ships in 2-12 days

240

Subaru Robin 017-00500-30

NUT

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X4.1H.

$1.49

$

In Stock, only 2 left!

241

Subaru Robin 017-00500-30

NUT

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.5X4.1H.

$1.49

$

In Stock, only 2 left!

290

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.99

$

In Stock, only 4 left!

310

Subaru Robin 279-30502-01

MUFFLER CP

Note: Start Date: 1/9/2010 0:00:00. Start Date: 12/31/9999 0:00:00.

$308.06

$

Usually ships in 2-12 days

315

Subaru Robin 31C-14001-01

SPARK ARRESTER CP

Note: Start Date: 1/9/2010 0:00:00. Start Date: 12/31/9999 0:00:00.

$93.99

$

Usually ships in 2-12 days

317

Subaru Robin 015-00400-10

TAPPING SCREW

Note: Start Date: 1/9/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M4X8L.

$0.99

$

Usually ships in 2-12 days

320

Subaru Robin 279-34702-01

MUFFLER COVER CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$76.00

$

Usually ships in 2-12 days

330

Subaru Robin 279-39101-11

MUFFLER BRACKET CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.60

$

Usually ships in 2-12 days

340

Subaru Robin 277-35201-13

GASKET(MUFFLER)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2 26D 9DX58P.

$3.99

$

In Stock, only 2 left!

341

Subaru Robin 277-35201-01

GASKET CP(EXHAUST)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.6 28D 8.5DX52P.

$12.99

$

Usually ships in 2-12 days

350

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 11/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$2.49

$

In Stock, only 4 left!

351

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 11/1/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X17DX7.5H.

$2.49

$

In Stock, only 4 left!

360

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X14DX8L.

$2.99

$

In Stock, only 4 left!

370

Subaru Robin 001-14082-00

BOLT AND WASHER AY

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X20L W/W,SW.

$0.99

$

Usually ships in 2-12 days

375

Subaru Robin 001-14081-60

BOLT AND WASHER AY

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X16L W/W,SW.

$1.49

$

Usually ships in 2-12 days

405

Subaru Robin 277-34001-01

EXHAUST PIPE CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$67.99

$

Usually ships in 2-12 days

415

Subaru Robin 010-50802-90

STUD

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X30L.

$1.99

$

Usually ships in 2-12 days

540

Subaru Robin 279-32902-J1

INSULATOR CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: W/GASKET.

$20.99

$

Usually ships in 2-12 days

550

Subaru Robin 279-35903-J3

GASKET2(INSULATOR)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$2.49

$

In Stock, only 2 left!

560

Subaru Robin 279-35902-J3

GASKET1(INSULATOR)

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5.

$2.49

$

In Stock, Qty 5

570

Subaru Robin 002-38060-00

FLANGE NUT

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 9

580

Subaru Robin 001-04062-00

FLANGE BOLT

Note: Start Date: 1/1/2010 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX20L.

$1.49

$

In Stock, only 3 left!

620

Subaru Robin 279-39001-01

BRACKET(A/C) CP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$17.99

$

In Stock, only 1 left!

850

Subaru Robin 291-66001-H0

RUBBER PIPE AY

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$34.99

$

In Stock, only 1 left!

860

Subaru Robin 056-60002-50

CLAMP

Note: Start Date: 4/27/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6.5DX10BX95LX0.6T.

$3.99

$

Usually ships in 2-12 days

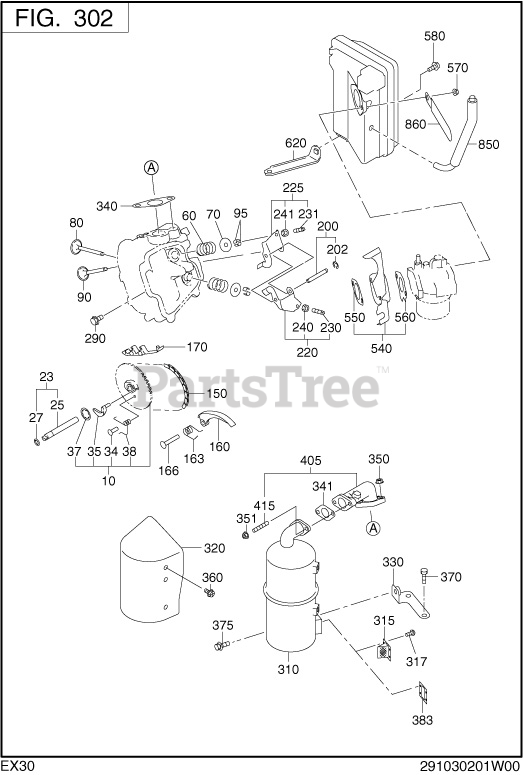

EX300D20110 (EX30) - Subaru Robin Engine 302 Intake & Exhaust Parts Diagram

302 Intake & Exhaust Parts Diagram
