Ex2900 (54AAC4OK727) - Cub Cadet Yanmar Ex Series Compact Tractor Front Grille Ex2900 Parts Diagram

Ex Series Compact Tractor

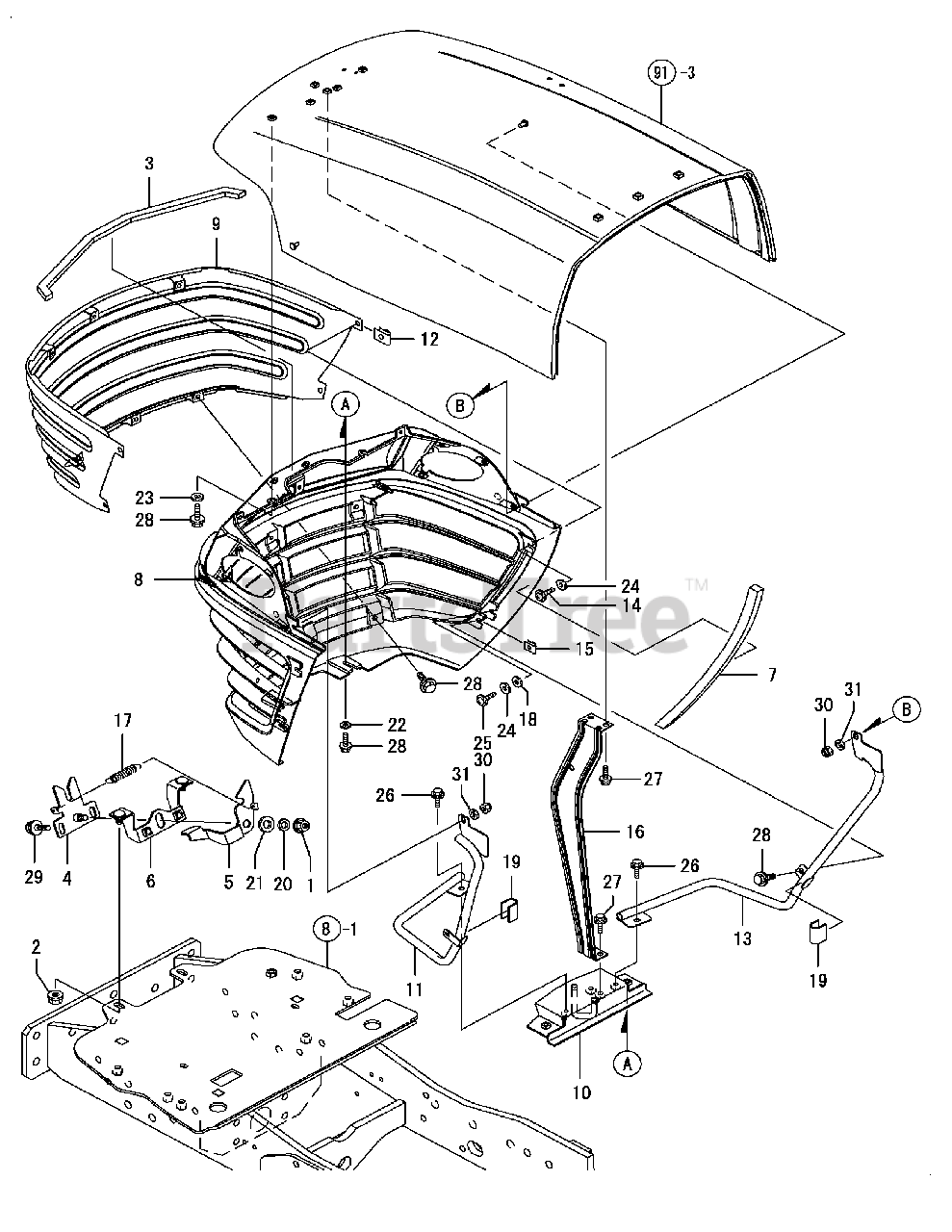

Front Grille Ex2900 Parts Diagram

  • Title
1

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

2

Cub Cadet CY-194990-22140

NUT W/WASHER 8

$

$

Not available

3

Cub Cadet CY-1A7260-60680

URETHANE, GRILLE

$

$

Not available

$

$

Not available

5

Cub Cadet CY-1A7260-60810

LEVER, GRILLE LOCK

$

$

Not available

6

Cub Cadet CY-1A7260-60820

PLATE, BASE LOCK

$

$

Not available

7

Cub Cadet CY-1A7260-60870

SEAL, GRILLE SIDE

$

$

Not available

8

$

$

Not available

9

Cub Cadet CY-1A7260613101

NET ASSY, GRILLE

$

$

Not available

10

Cub Cadet CY-1A7260-61550

STAY ASSY, LOCK
(Superseded to CY-1A7260615501)

$

$

Not available

11

Cub Cadet CY-1A7260-61650

FRAME ASSY, L GRILLE
(Superseded to CY-1A7260616501)

$

$

Not available

$

$

Not available

13

Cub Cadet CY-1A7260-61660

FRAME ASSY, R GRILLE
(Superseded to CY-1A7260616601)

$

$

Not available

14

Cub Cadet CY-194940-61790

SCREW 5X16
(Superseded to CY-194420-61640)

$

$

Not available

15

$

$

Not available

16

Cub Cadet CY-1A7260-61920

STAY, FRONT GRILLE
(Superseded to CY-1A7260619201)

$

$

Not available

$

$

Not available

$

$

Not available

19

$

$

Not available

20

Cub Cadet CY-22137-080000

WASHER 8, POLISHED

$

$

Not available

21

Cub Cadet CY-22137-120000

WASHER 12, POLISHED

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

25

Cub Cadet CY-22859-500202

SCREW, 5.0 X 20

$

$

Not available

26

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

27

Cub Cadet CY-26106-060122

BOLT M 6X 12 PLATED

$

$

Not available

28

Cub Cadet CY-26106-060162

BOLT M 6X 16 PLATED

$

$

Not available

29

Cub Cadet CY-26106-080122

BOLT M 8X 12 PLATED

$

$

Not available

30

Cub Cadet CY-26346-060002

U-NUT M 6 PLATED

$

$

Not available

31

Cub Cadet CY-22137-060000

WASHER 6, POLISHED

Note: S/N F000156 & ABOVE

$

$

Not available

Note: 8-1 Refer to FRONT FRAME COMPLETE, Ref No 1

$

$

Not available

Note: 91-3 Refer to HOOD, Ref No 3

$

$

Not available
