Ex2900 (54AAC4O-727) - Cub Cadet Yanmar Ex Series Compact Tractor Transmission Case Parts Diagram

Ex Series Compact Tractor

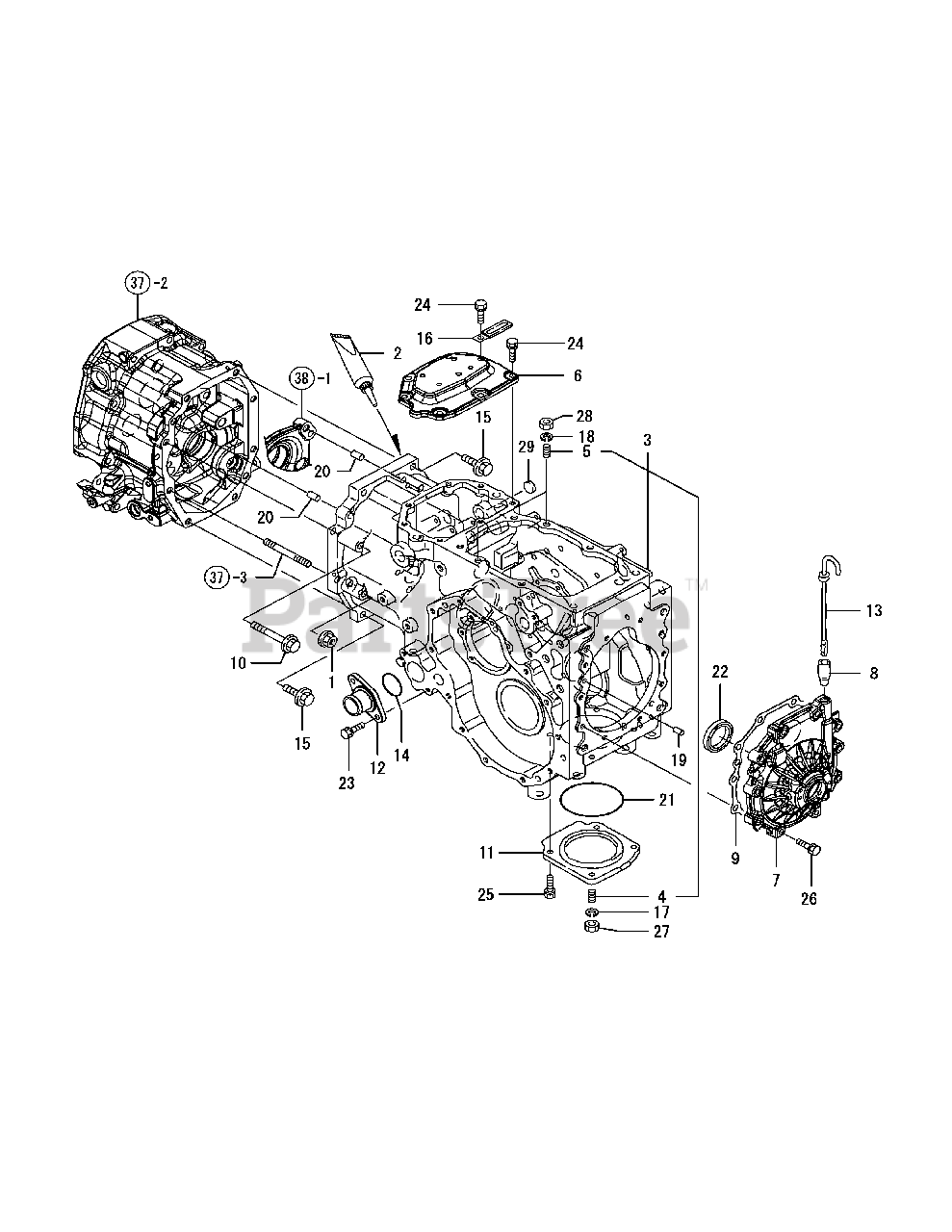

Transmission Case Parts Diagram

  • Title

1

Cub Cadet CY-1A8160-13930

NUT 10

$

$

Not available

2

Cub Cadet CY-194855-24020

SEALANT, TUBE
(Superseded to YA-977770-1207F)

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet CY-1A8160-24100

CASE, MISSION CMP

$

$

Not available

4

Cub Cadet CY-26216-100252

STUD M10X 25 PLATED

$

$

Not available

5

Cub Cadet CY-26216-100252

STUD M10X 25 PLATED

$

$

Not available

6

Cub Cadet CY-198220-24211

COVER, MISSION CASE

$

$

Not available

7

Cub Cadet CY-198220-24341

COVER, REAR COMP.

$

$

Not available

8

Cub Cadet CY-119860-34810

GUIDE, DIPSTICK

$

$

Not available

9

Cub Cadet CY-198220-24360

GASKET, REAR COVER

$

$

Not available

10

Cub Cadet CY-1A8160-24390

BOLT, 10X75

$

$

Not available

11

Cub Cadet CY-198220-24480

COVER, BOTTOM

$

$

Not available

12

Cub Cadet CY-1A8160-24920

FLANGE, STRAINER

$

$

Not available

13

Cub Cadet CY-194850-24960

GAUGE COMP, OIL

$

$

Not available

14

Cub Cadet CY-194180-26690

O-RING 2035

$

$

Not available

15

Cub Cadet CY-198266-28390

BOLT, 10X35

$

$

Not available

16

Cub Cadet CY-194440-51620

CLAMP, WIRE HARNESS

$

$

Not available

17

Cub Cadet CY-22217-100000

SPRING WASHER 10

$

$

Not available

18

Cub Cadet CY-22217-100000

SPRING WASHER 10

$

$

Not available

19

Cub Cadet CY-22312-080160

PARALLEL PIN 8X 16

$

$

Not available

20

Cub Cadet CY-22312-100180

PARALLEL PIN 10X 18

$

$

Not available

21

Cub Cadet CY-24321-000950

O-RING 1A G-95.0

$

$

Not available

22

Cub Cadet CY-24421-405508

SEAL TC40 55 08, OIL

$

$

Not available

23

Cub Cadet CY-26013-080202

BOLT W/WASHER M8X20

$

$

Not available

24

Cub Cadet CY-26013-080202

BOLT W/WASHER M8X20

$

$

Not available

25

Cub Cadet CY-26013-100302

BOLT M10X 30
(Superseded to CY-26013-100252)

$

$

Not available

26

Cub Cadet CY-26013-080352

BOLT M 8X 35

$

$

Not available

27

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

28

Cub Cadet CY-26716-100002

NUT 10

$

$

Not available

29

Cub Cadet CY-27260-200000

PLUG 20, BORE

$

$

Not available

Note: 37-2 Refer to CENTER PLATE, Ref No 2

$

$

Not available

Note: 37-3 Refer to CENTER PLATE, Ref No 3

$

$

Not available

Note: 38-1 Refer to BEARING RETAINER, Ref No 1

$

$

Not available
