Ex2900 (54AAC4O-727) - Cub Cadet Yanmar Ex Series Compact Tractor Labels (Safety) Ex2900 Parts Diagram

Ex Series Compact Tractor

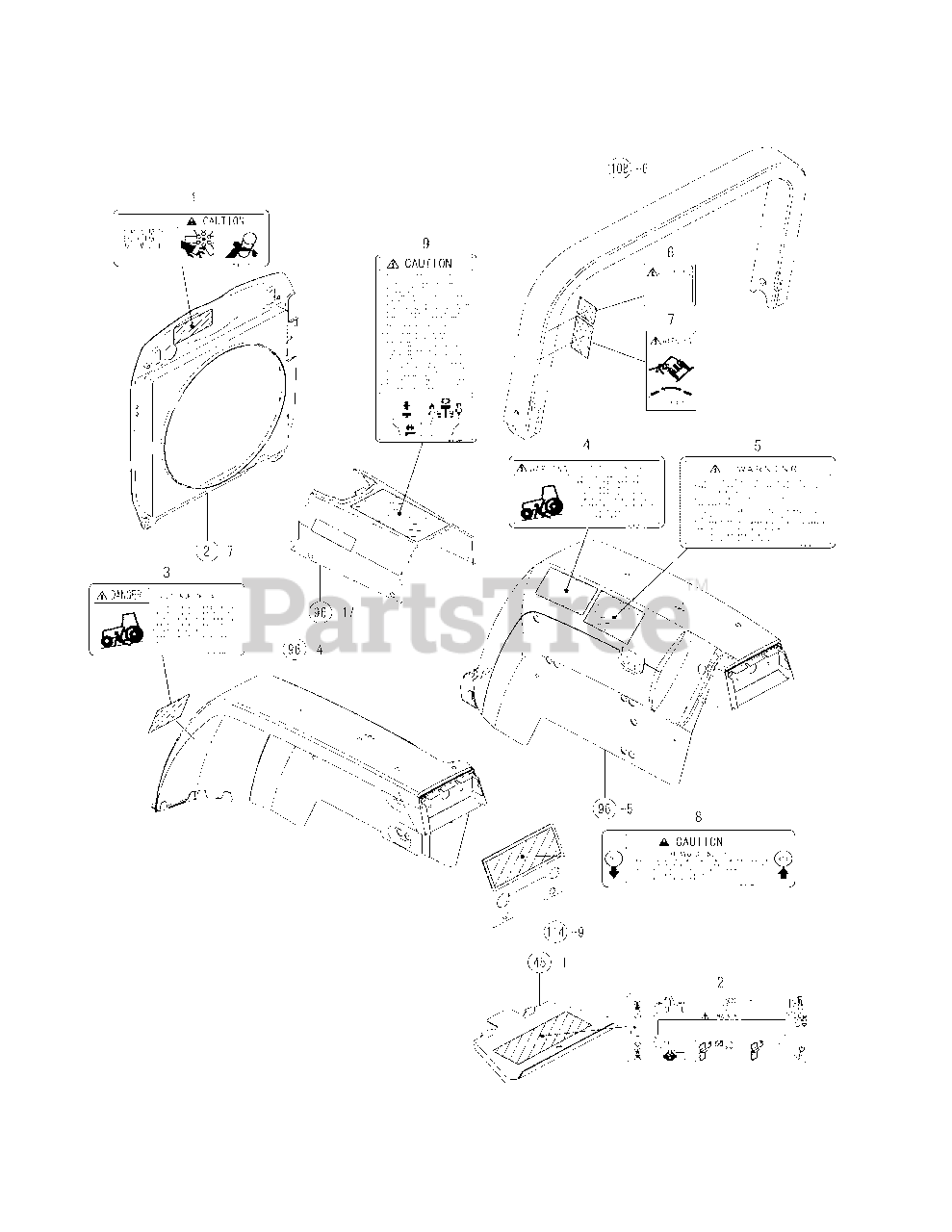

Labels (Safety) Ex2900 Parts Diagram

  • Title
1

Cub Cadet CY-1A7880-65620

LABEL, CAUTION, FAN

$

$

Not available

2

Cub Cadet CY-198220-65621

LABEL, P.T.O. WARNING

$

$

Not available

3

Cub Cadet CY-1A8160-65300

LABEL, DANGER, START

$

$

Not available

4

Cub Cadet CY-1A8160-65310

LABEL, WARNIBG, STOP

$

$

Not available

5

Cub Cadet CY-1A8160-65350

LABEL, WARNING, ROPS

$

$

Not available

6

Cub Cadet N/A

SAFETY DECAL

$

$

Currently unavailable

7

Cub Cadet N/A

SAFETY DECAL (BELT)

$

$

Currently unavailable

8

Cub Cadet CY-1A8160-65400

LABEL, CAUTION, REAR

$

$

Not available

9

Cub Cadet CY-1A8160-65321

LABEL, CAUTION

$

$

Not available

Note: 2-7 Refer to ENGINE ACCESSORIES MOUNTING, Ref No 7

$

$

Not available

Note: 45-1 Refer to P.T.O. SHIELD, Ref No 1

$

$

Not available

Note: 96-4 Refer to FENDER, Ref No 4

$

$

Not available

Note: 96-5 Refer to FENDER, Ref No 5

$

$

Not available

Note: 96-17 Refer to FENDER, Ref No 17

$

$

Not available

Note: 108-6 Refer to SAFETY FRAME, Ref No 6

$

$

Not available

Note: 114-9 Refer to WORK LAMP, Ref No 9

$

$

Not available
