EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

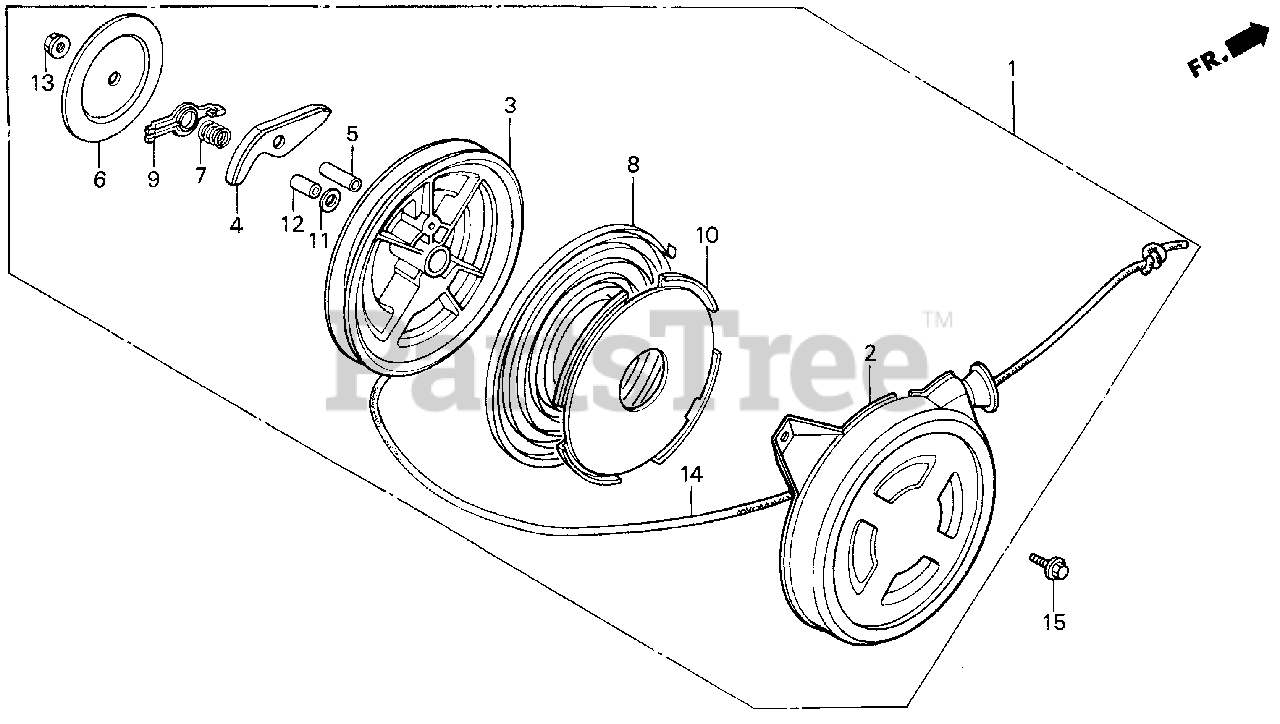

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZB6-003ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28410-ZE1-811ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-ZE1-003

PULLEY, RECOIL STARTER

$45.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-003

RATCHET, STARTER

$6.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-003

PIN, STARTER RATCHET

$9.49

$

Usually ships in 3-6 days

0

6

Honda 28431-ZE1-003

PLATE, FRICTION

$6.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZE1-003

SPRING, FRICTION

$6.99

$

Usually ships in 3-6 days

0

8

Honda 28442-ZE1-003

SPRING, RECOIL STARTER

$22.99

$

Usually ships in 3-6 days

0

9

Honda 28443-ZE1-003

GUIDE, RATCHET

$15.99

$

Usually ships in 3-6 days

0

10

Honda 28445-ZE1-003

CASE, RECOIL STARTER SPRING

$16.99

$

Usually ships in 3-6 days

0

11

Honda 28446-ZE1-003

WASHER, STARTER

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28447-ZE1-003

SHAFT, SUB

$6.49

$

Usually ships in 3-6 days

0

13

Honda 28448-ZE1-003

NUT

$

$

Not available

14

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.49

$

In Stock, Qty 20+

0
