EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) REAR HOUSING Parts Diagram

Generator, Made in Japan

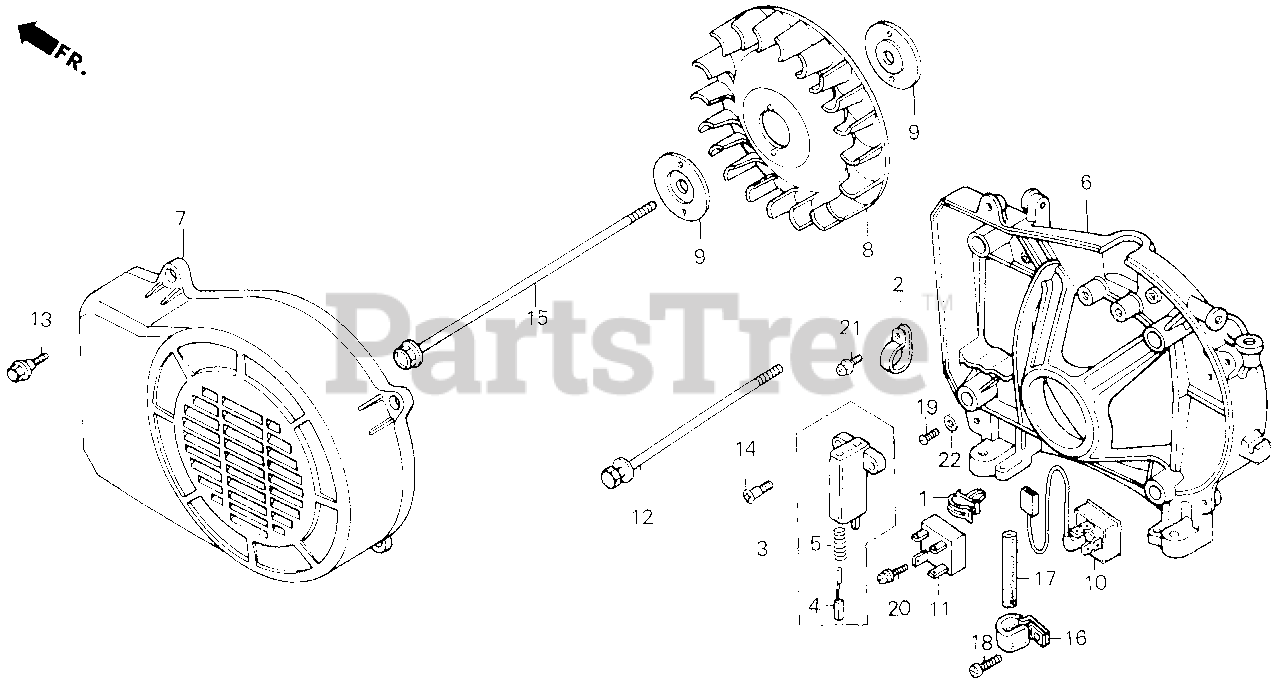

REAR HOUSING Parts Diagram

  • Title

1

Honda 30566-ZA5-000

CLAMP, D.C. CABLE

$

$

Not available

2

Honda 30566-895-000

CLAMP C, CABLE

$5.49

$

Usually ships in 3-6 days

0

3

Honda 31160-ZA5-000

HOLDER ASSY., BRUSH

$86.99

$

In Stock, only 1 left!

0

4

Honda 31162-ZA5-000

BRUSH

$

$

Not available

5

Honda 31163-ZA5-300

SPRING, BRUSH

$2.49

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-900

SEE PART DETAILS - SUP; HOUSING, RR.
(Superseded to 31170-ZB2-902)

Note: Use up to Frame SN 1007230.

$270.99

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-902

SEE PART DETAILS - PRI; HOUSING, RR.

$270.99

$

Usually ships in 3-6 days

0

7

Honda 31180-ZB3-741

COVER, ALTERNATOR END

$

$

Not available

8

Honda 31190-ZA5-000

FAN, COOLING

$

$

Not available

9

Honda 31191-ZA5-000

PLATE, FAN

$9.49

$

Usually ships in 3-6 days

0

10

Honda 31700-ZB3-700

DIODE, D.C.

Note: Use from Frame SN 1007231.

$

$

Not available

11

Honda 31710-ZA5-004

SEE PART DETAILS - SUP; DIODE, D.C.
(Superseded to 317W1-ZA5-004)

Note: Use up to Frame SN 1007230.

$64.99

$

Usually ships in 3-6 days

0

12

Honda 90013-ZB3-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X137)

$10.99

$

In Stock, only 2 left!

0

13

Honda 90015-ZA5-000

BOLT, GENERATOR END COVER

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90018-ZA5-000

BOLT, STATOR COVER SETTING

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90021-ZB3-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X175)

$15.99

$

Usually ships in 3-6 days

0

16

Honda 91405-ZB3-700

CLIP, WIRE

Note: Use from Frame SN 1007231.

$

$

Not available

17

Honda 91407-ZB3-700

TUBE, WIRE

Note: Use from Frame SN 1007231.

$

$

Not available

18

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: Use from Frame SN 1007231.

$1.49

$

In Stock, Qty 7

0

19

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93891-04018-08

SCREW-WASHER (4X18)

$

$

Not available

21

Honda 93891-05012-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
