EX2200 A (EA2) - Honda Generator, Made in Japan (SN: EA2-1000001 - EA2-9999999) CRANKSHAFT + PISTON + RINGS Parts Diagram

Generator, Made in Japan

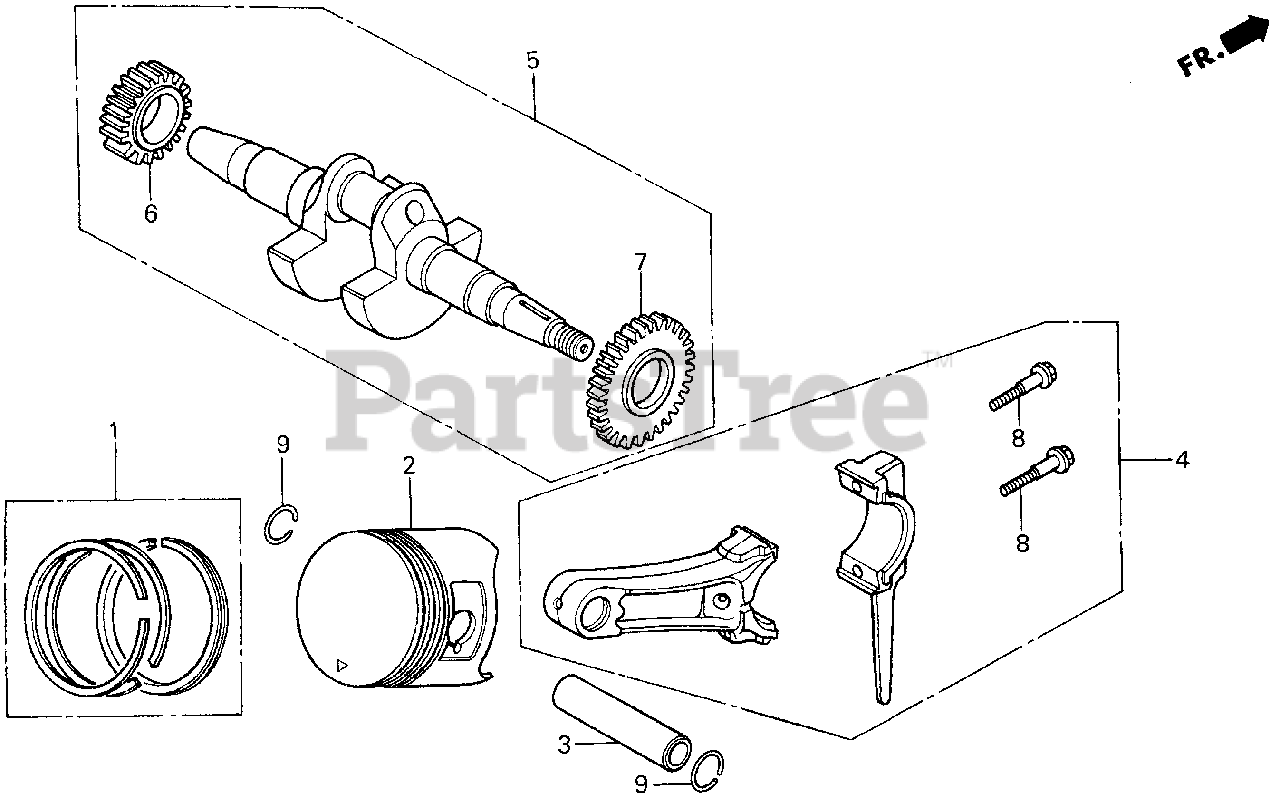

CRANKSHAFT + PISTON + RINGS Parts Diagram

  • Title

1

Honda 130A1-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A1-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 2120317.
(Superseded to 13011-ZE1-013)

$

$

Not available

1

Honda 130A2-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 2120317.
(Superseded to 13011-ZE1-013)

$

$

Not available

1

Honda 130A3-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 2120317.
(Superseded to 13012-ZE1-013)

$

$

Not available

1

Honda 130A3-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 2120317.
(Superseded to 13012-ZE1-014)

$

$

Not available

1

Honda 130A4-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) Use up to Engine SN 2120317.
(Superseded to 13013-ZE1-013)

$

$

Not available

1

Honda 130A4-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) Use up to Engine SN 2120317.
(Superseded to 13013-ZE1-014)

$

$

Not available

1

Honda 13010-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13012-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13012-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)
(Superseded to 13012-ZE1-013)

$

$

Not available

1

Honda 13013-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-ZE1-000

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZE1-010)

Note: Use up to Engine SN 2120317.

$

$

Not available

2

Honda 13101-ZE1-010

SEE PART DETAILS - PRI; PISTON (STD)

$

$

Not available

2

Honda 13102-ZE1-010

SEE PART DETAILS - PRI; PISTON (OS 0.25)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE1-010

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-ZE1-010

PISTON (0.75)

$

$

Currently unavailable

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-ZE1-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z0T-800)

$13.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZB2-000

CRANKSHAFT (VE-TYPE)

$280.99

$

Usually ships in 3-6 days

0

6

Honda 14311-ZE1-300

GEAR, TIMING

$40.99

$

Usually ships in 3-6 days

0

7

Honda 16505-ZE1-300

GEAR, GOVERNOR DRIVE

$22.99

$

Usually ships in 3-6 days

0

8

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

9

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: Use from Engine SN 1894373.

$1.49

$

In Stock, Qty 20+

0

9

Honda 94601-18000

CLIP, PISTON PIN (18MM)

Note: Use up to Engine SN 1894372.

$1.49

$

Usually ships in 3-6 days

0
