EX210DM2160 (EX21) - Subaru Robin Engine 640 Carburetor Parts Diagram

Engine

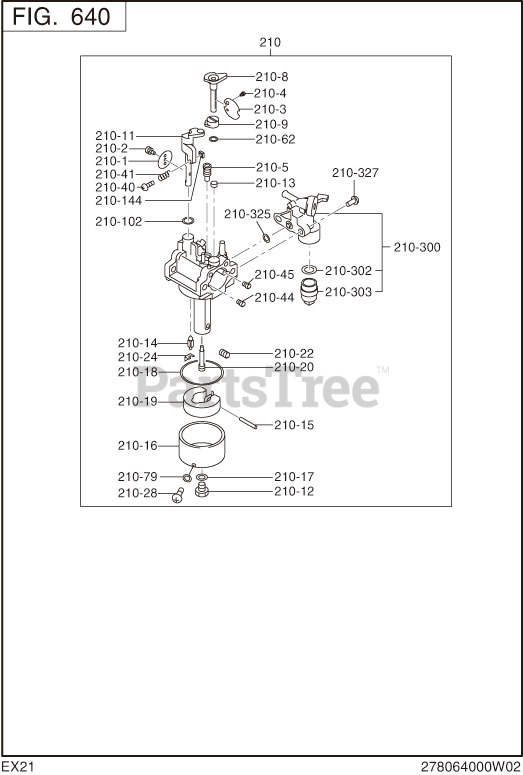

640 Carburetor Parts Diagram

  • Title

210-20

Subaru Robin 278-62440-08

MAIN NOZZLE

$43.99

$

Usually ships in 2-12 days

0

210-22

Subaru Robin 277-62405-08

MAIN JET

Note: Remarks: #83.8.

$24.99

$

Usually ships in 2-12 days

0

210-24

Subaru Robin 226-62701-18

CLIP

$6.99

$

Usually ships in 2-12 days

0

210-28

Subaru Robin 277-62360-08

BOLT

$12.99

$

In Stock, only 1 left!

0

210-40

Subaru Robin 106-62556-08

SCREW

$2.49

$

Usually ships in 2-12 days

0

210-41

Subaru Robin 283-62357-08

SPRING

$9.49

$

In Stock, only 1 left!

0

210-44

Subaru Robin 106-62411-08

AIR JET

$21.99

$

Usually ships in 2-12 days

0

210-45

Subaru Robin 106-62410-08

AIR JET(PILOT)

$15.99

$

Usually ships in 2-12 days

0

210-62

Subaru Robin 236-62680-08

SEAL

$7.49

$

Usually ships in 2-12 days

0

210-79

Subaru Robin 236-62541-08

PACKING

$7.99

$

In Stock, only 2 left!

0

210-102

Subaru Robin 246-62390-08

SEAL

$

$

Not available

210-144

Subaru Robin 277-62553-08

NUT

$9.99

$

In Stock, only 1 left!

0

210-300

Subaru Robin 279-62103-10

COCK BODY-A

$17.48

$

Usually ships in 2-12 days

0

210-302

Subaru Robin 277-62110-18

PACKING

$3.99

$

In Stock, Qty 7

0

210-303

Subaru Robin 277-62100-18

CUP

$8.99

$

Usually ships in 2-12 days

0

210-325

Subaru Robin 277-62552-08

O-RING

$4.99

$

In Stock, only 2 left!

0

210-327

Subaru Robin 165-62377-08

SCREW

$1.99

$

In Stock, only 4 left!

0

210-0

Subaru Robin 278-62302-30

CARBURETOR AY

$268.99

$

In Stock, only 1 left!

0

210-1

Subaru Robin 277-62535-08

THROTTLE VALVE

Note: Remarks: #160.

$24.99

$

Usually ships in 2-12 days

0

210-2

Subaru Robin 209-62351-08

SCREW

$1.49

$

In Stock, only 2 left!

0

210-3

Subaru Robin 277-62525-08

CHOKE VALVE

$17.99

$

Usually ships in 2-12 days

0

210-5

Subaru Robin 278-62420-08

PILOT JET

Note: Remarks: #41.3.

$24.99

$

Usually ships in 2-12 days

0

210-8

Subaru Robin 277-62520-08

CHOKE LEVER

$33.99

$

Usually ships in 2-12 days

0

210-11

Subaru Robin 277-62531-18

THROTTLE SHAFT-A

$43.99

$

Usually ships in 2-12 days

0

210-12

Subaru Robin 227-62451-08

BOLT

$16.99

$

Usually ships in 2-12 days

0

210-14

Subaru Robin 277-62500-08

NEEDLE

$55.99

$

In Stock, only 1 left!

0

210-15

Subaru Robin 277-62515-08

PIN

$5.49

$

Usually ships in 2-12 days

0

210-16

Subaru Robin 277-62506-08

FLOAT BODY AY

$66.99

$

Usually ships in 2-12 days

0

210-17

Subaru Robin 214-62450-08

PACKING

$1.49

$

In Stock, Qty 11

0

210-18

Subaru Robin 214-62540-08

CHAMBER PACKING

$6.99

$

Usually ships in 2-12 days

0

210-19

Subaru Robin 226-62506-08

FLOAT

$59.99

$

Usually ships in 2-12 days

0
