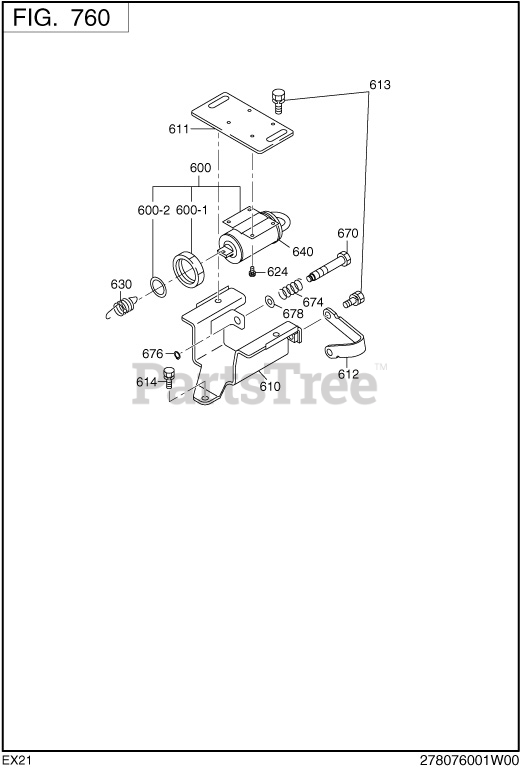

EX210D52290 (EX21) - Subaru Robin Engine 760 Electric Device Parts Diagram

Engine

760 Electric Device Parts Diagram

  • Title

600

Subaru Robin 246-77303-01

SOLENOID CP

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$203.99

$

Usually ships in 2-12 days

0

600

Subaru Robin 224-76506-08

NUT

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

0

600

Subaru Robin 224-76507-08

WASHER

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

610

Subaru Robin 277-76511-01

BRACKET,SOLENOID CP

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

0

613

Subaru Robin 001-14062-00

BOLT AND WASHER AY

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X20L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

630

Subaru Robin 277-78211-13

SPRING,SOLENOID

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 9DX1.6DX49L N=8.

$5.76

$

Usually ships in 2-12 days

0

640

Subaru Robin 056-30000-10

WIRE BAND

Note: Start Date: 2/4/2009 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5BX1.2TX200L.

$4.49

$

Usually ships in 2-12 days

0
