EX20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 130000 - 149999) (1997) Caster Wheel Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

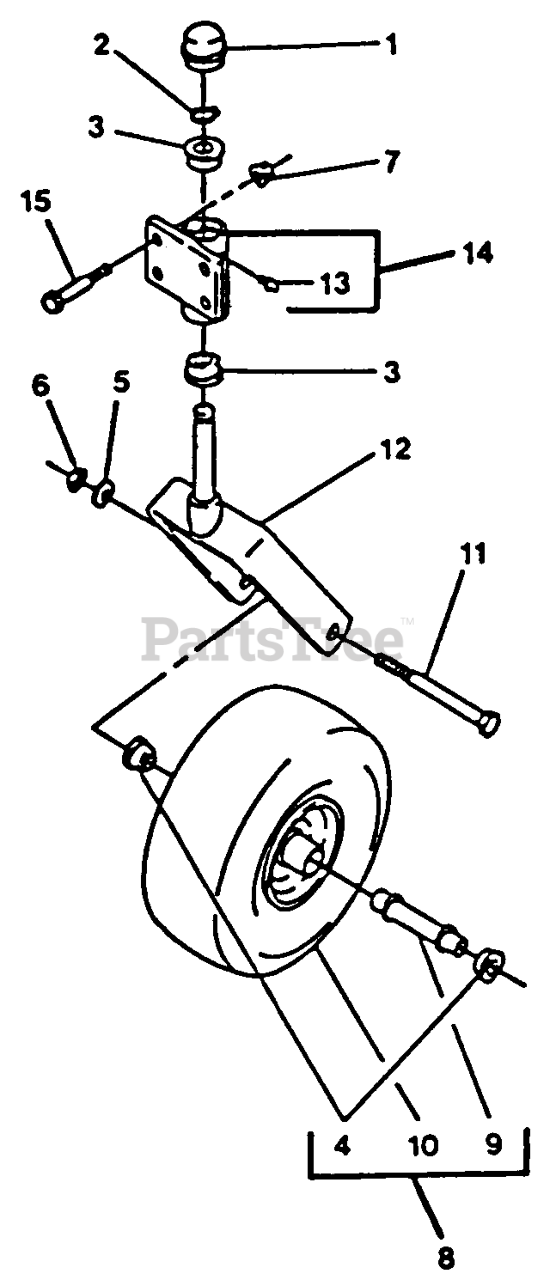

Caster Wheel Parts Diagram

  • Title

1

Exmark 1-513649

CAP,GREASE

$11.99

$

Usually ships in 3-6 days

0

2

Exmark 1-808508

32151-36
(Superseded to 32151-36)

$4.99

$

In Stock, only 4 left!

0

3

Exmark 1-513104

BEARING,FLANGED

$71.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513009

1-631560
(Superseded to 1-631560)

$63.99

$

Usually ships in 3-6 days

0

5

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

7

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-522036

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-522011

SPACER WLDMT,WHEEL

$

$

Not available

10

Exmark 1-523007

1-522036
(Superseded to 1-522036)

$

$

Not available

Exmark 1-523008

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

11

Exmark 1-800335

325-24
(Superseded to 325-24)

$14.99

$

In Stock, only 2 left!

0

12

Exmark 1-522016-03

WLD,CASTER FORK

$

$

Not available

13

Exmark 1-811006

302-19
(Superseded to 302-19)

Note: straight

$2.49

$

In Stock, Qty 8

0

14

Exmark 1-522006-03

WLD,CASTER MOUNT

$

$

Not available

15

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
