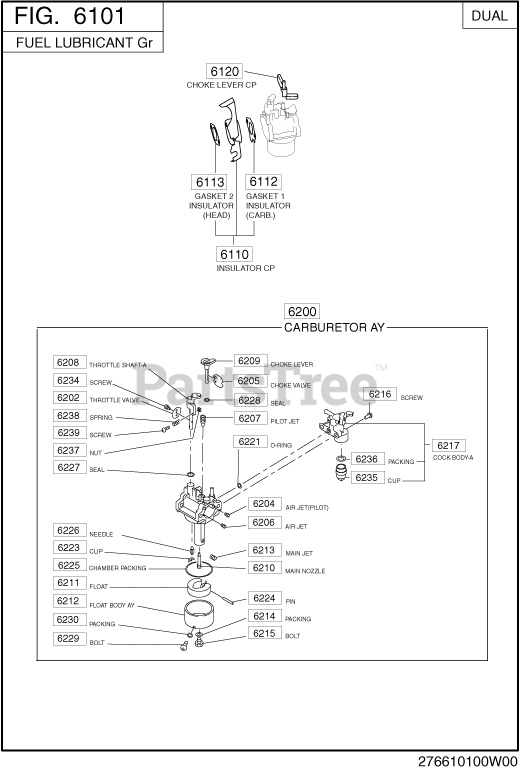

EX130D70210 (EX13) - Subaru Robin Engine 6101 Parts Diagram

Engine

6101 Parts Diagram

  • Title

6110

Subaru Robin 277-32902-J1

INSULATOR CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$18.99

$

In Stock, only 1 left!

0

6112

Subaru Robin 277-35902-J3

GASKET1(INSULATOR)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.5 .

$1.99

$

In Stock, Qty 18

0

6113

Subaru Robin 277-35903-J3

GASKET2(INSULATOR)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.5 .

$1.99

$

In Stock, Qty 11

0

6120

Subaru Robin 277-43801-01

CHOKE LEVER CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$9.99

$

In Stock, only 3 left!

0

6200

Subaru Robin 276-62302-30

CARBURETOR AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: BOUZIN.

$261.99

$

In Stock, only 1 left!

0

6202

Subaru Robin 106-62538-08

THROTTLE VALVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$17.99

$

Usually ships in 2-12 days

0

6204

Subaru Robin 106-62410-08

AIR JET(PILOT)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$15.99

$

Usually ships in 2-12 days

0

6205

Subaru Robin 277-62525-08

CHOKE VALVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$17.99

$

Usually ships in 2-12 days

0

6206

Subaru Robin 207-62410-08

AIR JET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$17.99

$

Usually ships in 2-12 days

0

6207

Subaru Robin 246-62420-08

PILOT JET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$18.99

$

In Stock, only 1 left!

0

6208

Subaru Robin 276-62531-18

THROTTLE SHAFT-A

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$45.99

$

Usually ships in 2-12 days

0

6209

Subaru Robin 277-62520-08

CHOKE LEVER

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$33.99

$

Usually ships in 2-12 days

0

6210

Subaru Robin 276-62440-08

MAIN NOZZLE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$31.99

$

Usually ships in 2-12 days

0

6211

Subaru Robin 226-62506-08

FLOAT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$59.99

$

Usually ships in 2-12 days

0

6212

Subaru Robin 277-62506-08

FLOAT BODY AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$66.99

$

Usually ships in 2-12 days

0

6213

Subaru Robin 252-62405-08

MAIN JET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$24.99

$

Usually ships in 2-12 days

0

6214

Subaru Robin 214-62450-08

PACKING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$1.49

$

In Stock, Qty 11

0

6215

Subaru Robin 227-62451-08

BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$16.99

$

Usually ships in 2-12 days

0

6216

Subaru Robin 165-62377-08

SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$1.99

$

In Stock, only 4 left!

0

6217

Subaru Robin 279-62103-10

COCK BODY-A

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$17.48

$

Usually ships in 2-12 days

0

6221

Subaru Robin 277-62552-08

O-RING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$4.99

$

Usually ships in 2-12 days

0

6223

Subaru Robin 226-62701-18

CLIP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$6.99

$

Usually ships in 2-12 days

0

6224

Subaru Robin 277-62515-08

PIN

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$5.49

$

Usually ships in 2-12 days

0

6225

Subaru Robin 214-62540-08

CHAMBER PACKING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$6.99

$

Usually ships in 2-12 days

0

6226

Subaru Robin 277-62500-08

NEEDLE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$55.99

$

In Stock, only 1 left!

0

6227

Subaru Robin 246-62390-08

SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$

$

Not available

6228

Subaru Robin 236-62680-08

SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$7.49

$

Usually ships in 2-12 days

0

6229

Subaru Robin 277-62360-08

BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$12.99

$

In Stock, only 1 left!

0

6230

Subaru Robin 236-62541-08

PACKING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$7.99

$

In Stock, only 2 left!

0

6234

Subaru Robin 209-62351-08

SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$1.49

$

In Stock, only 2 left!

0

6235

Subaru Robin 277-62100-18

CUP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$8.99

$

Usually ships in 2-12 days

0

6236

Subaru Robin 277-62110-18

PACKING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$3.99

$

In Stock, Qty 7

0

6237

Subaru Robin 277-62553-08

NUT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$9.99

$

In Stock, only 1 left!

0

6238

Subaru Robin 283-62357-08

SPRING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$9.49

$

In Stock, only 1 left!

0

6239

Subaru Robin 106-62556-08

SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$2.49

$

Usually ships in 2-12 days

0
