EX130D70210 (EX13) - Subaru Robin Engine 1000 Ship Loose Parts Diagram

Engine

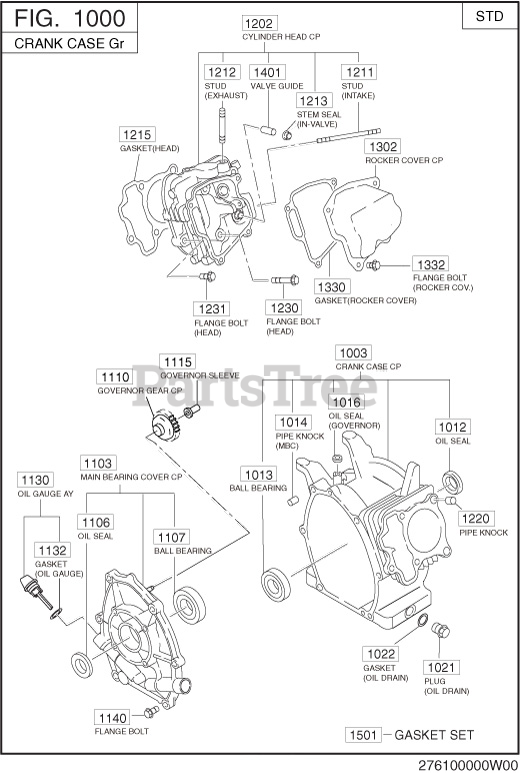

1000 Ship Loose Parts Diagram

  • Title
1003

Subaru Robin 276-10101-41

CRANK CASE CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: STD .

$467.93

$

Usually ships in 2-12 days

0

1012

Subaru Robin 044-02502-00

OIL SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 25DX38DX7B .

$15.99

$

In Stock, only 1 left!

0

1013

Subaru Robin 060-02800-21

BALL BEARING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 28DX58DX16B .

$32.99

$

Usually ships in 2-12 days

0

1014

Subaru Robin 277-15011-03

PIPE KNOCK

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: MBC .

$2.49

$

Usually ships in 2-12 days

0

1016

Subaru Robin 044-00600-20

OIL SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 6DX10DX2.5B .

$7.99

$

Usually ships in 2-12 days

0

1021

Subaru Robin 040-11400-30

PLUG

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 14D X 12L OIL DRAIN .

$3.99

$

In Stock, only 3 left!

0

1022

Subaru Robin 021-11400-20

GASKET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.4 OIL DRAIN .

$0.99

$

Usually ships in 2-12 days

0

1103

Subaru Robin 277-11001-31

MAIN BEARING COVER C

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: STD .

$

$

Not available

1106

Subaru Robin 044-02502-10

OIL SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 24.5X41.25X6 .

$16.99

$

Usually ships in 2-12 days

0

1107

Subaru Robin X60-02501-40

BALL BEARING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 25DX52DX15B .

$

$

Not available

1110

Subaru Robin 277-45004-J1

GOVERNOR GEAR CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$38.99

$

Usually ships in 2-12 days

0

1115

Subaru Robin 277-41901-03

GOVERNOR SLEEVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$28.99

$

In Stock, only 1 left!

0

1130

Subaru Robin 277-63601-30

OIL GAUGE AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$12.99

$

In Stock, only 1 left!

0

1132

Subaru Robin 277-63601-08

GASKET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$1.49

$

In Stock, Qty 9

0

1140

Subaru Robin 001-04083-50

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$2.49

$

Usually ships in 2-12 days

0

1202

Subaru Robin 276-13001-11

CYLINDER HEAD CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: STD .

$

$

Not available

1211

Subaru Robin 010-50603-51

STUD

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 6DX98LX20S INTAKE .

$9.99

$

Usually ships in 2-12 days

0

1212

Subaru Robin 010-50802-50

STUD

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M8X1.25X25L EXHAUST .

$

$

Not available

1213

Subaru Robin 277-16010-01

STEM SEAL

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: IN-VALVE.

$8.49

$

In Stock, only 1 left!

0

1215

Subaru Robin 276-15001-33

GASKET (HEAD)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$

$

Not available

1220

Subaru Robin 277-15011-03

PIPE KNOCK

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$2.49

$

Usually ships in 2-12 days

0

1230

Subaru Robin 011-00802-40

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M8X1.25X68L HEAD .

$5.99

$

In Stock, only 4 left!

0

1231

Subaru Robin 011-00803-10

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M8X1.25X33L HEAD .

$2.49

$

In Stock, only 1 left!

0

1302

Subaru Robin 277-15503-01

ROCKER COVER CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$

$

Not available

1330

Subaru Robin 277-16001-13

GASKET(ROCKER COVER)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.5 .

$

$

Not available

1332

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M6X1.0X12L ROCKER COV. .

$2.99

$

In Stock, Qty 7

0

1401

Subaru Robin 237-14202-03

VALVE GUIDE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: O.S..

$41.99

$

Usually ships in 2-12 days

0

1501

Subaru Robin 276-99001-37

GASKET SET

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$14.18

$

Usually ships in 2-12 days

0
