EX130D70190 (EX13) - Subaru Robin Engine 300 Intake & Exhaust Parts Diagram

Engine

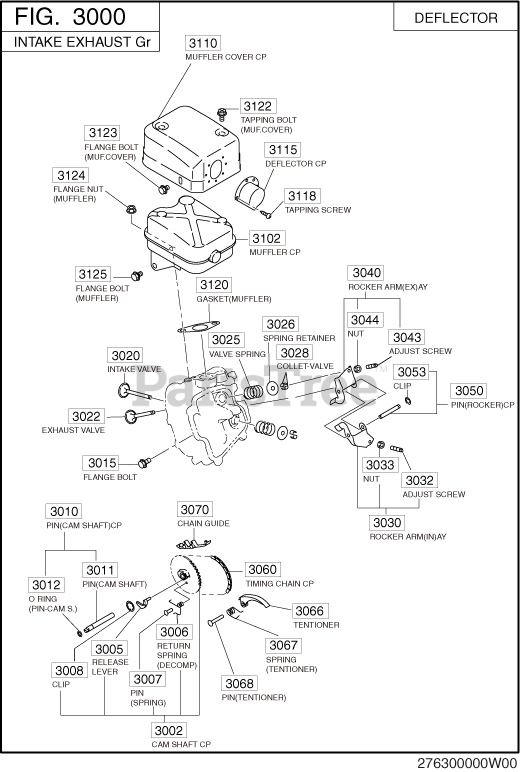

300 Intake & Exhaust Parts Diagram

  • Title

3002

Subaru Robin 277-31601-31

CAM SHAFT CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: STD .

$116.15

$

Usually ships in 2-12 days

0

3005

Subaru Robin 277-36401-03

RELEASE LEVER

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$

$

Not available

3006

Subaru Robin 277-38702-03

RETURN SPRING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: D=0.55 DECOMP .

$2.49

$

In Stock, Qty 6

0

3007

Subaru Robin 277-38601-03

PIN(SPRING)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: RETURN SP .

$1.49

$

Usually ships in 2-12 days

0

3008

Subaru Robin 277-36501-03

CLIP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$1.99

$

In Stock, Qty 10

0

3010

Subaru Robin 277-35101-01

PIN(CAM SHAFT)CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$19.99

$

Usually ships in 2-12 days

0

3011

Subaru Robin 277-35101-03

PIN(CAM SHAFT)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$19.99

$

Usually ships in 2-12 days

0

3012

Subaru Robin 024-00600-10

O RING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: D1.9X5.8 .

$2.49

$

In Stock, only 1 left!

0

3015

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M6X1.0,L=8.

$2.49

$

In Stock, only 2 left!

0

3020

Subaru Robin 276-33401-H3

INTAKE VALVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$

$

Not available

3022

Subaru Robin 276-33501-H3

EXHAUST VALVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$

$

Not available

3025

Subaru Robin 279-33601-03

VALVE SPRING

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$9.49

$

Usually ships in 2-12 days

0

3026

Subaru Robin 269-33701-03

SPRING RETAINER

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$7.49

$

In Stock, only 1 left!

0

3028

Subaru Robin 132-10KA0-31

COLLET-VALVE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: VIVIO .

$2.99

$

In Stock, only 1 left!

0

3030

Subaru Robin 277-36201-00

ROCKER ARM(IN) AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$41.99

$

In Stock, only 1 left!

0

3032

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M5X0.5T2 .

$3.99

$

Usually ships in 2-12 days

0

3033

Subaru Robin 017-00500-30

NUT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M5X0.5T2 .

$1.49

$

In Stock, only 2 left!

0

3040

Subaru Robin 277-36202-00

ROCKER ARM(EX) AY

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$38.99

$

Usually ships in 2-12 days

0

3043

Subaru Robin 014-90500-20

ADJUST SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M5X0.5T2 .

$3.99

$

Usually ships in 2-12 days

0

3044

Subaru Robin 017-00500-30

NUT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M5X0.5T2 .

$1.49

$

In Stock, only 2 left!

0

3050

Subaru Robin 277-35004-01

PIN(ROCKER) CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$3.99

$

Usually ships in 2-12 days

0

3053

Subaru Robin 003-13050-00

CLIP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$0.99

$

In Stock, Qty 6

0

3060

Subaru Robin 276-35601-11

TIMING CHAIN CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: 86LINK .

$47.99

$

Usually ships in 2-12 days

0

3066

Subaru Robin 277-36911-03

TENTIONER

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$6.99

$

In Stock, only 2 left!

0

3067

Subaru Robin 277-37101-03

SPRING(TENTIONER)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$

$

Not available

3068

Subaru Robin 277-36902-03

PIN(TENTIONER)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$4.99

$

In Stock, only 2 left!

0

3070

Subaru Robin 277-36913-13

CHAIN GUIDE

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$3.49

$

Usually ships in 2-12 days

0

3102

Subaru Robin 276-30101-J1

MUFFLER CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999.

$158.99

$

Usually ships in 2-12 days

0

3110

Subaru Robin 276-34201-21

MUFFLER COVER CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: .

$31.11

$

Usually ships in 2-12 days

0

3115

Subaru Robin 277-37001-H1

DEFLECTOR CP

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.8.

$19.99

$

Usually ships in 2-12 days

0

3118

Subaru Robin 015-00400-60

TAPPING SCREW

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: D4XL6 .

$

$

Not available

3120

Subaru Robin 277-35201-13

GASKET(MUFFLER)

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: T=0.2 .

$3.49

$

In Stock, only 3 left!

0

3122

Subaru Robin 015-20600-90

TAPPING BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M6X1.0X10L MUF.COVER .

$1.99

$

In Stock, only 2 left!

0

3123

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M6X1.0,L=8 MUF.COVER .

$2.49

$

In Stock, only 2 left!

0

3124

Subaru Robin 980-20082-80

FLANGE NUT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M8X1.25X6.5H MUFFLER .

$1.99

$

In Stock, only 4 left!

0

3125

Subaru Robin 011-00803-20

FLANGE BOLT

Note: Start Date: 1/21/2009. Start Date: 12/31/9999. Remarks: M8X1.25X12L MUFFLER .

$1.49

$

In Stock, only 1 left!

0
