EX1000 A2 (EA4) - Honda Generator, Made in Japan (SN: EA4-1236196 - EA4-9999999) RECOIL STARTER (2) Parts Diagram

Generator, Made in Japan

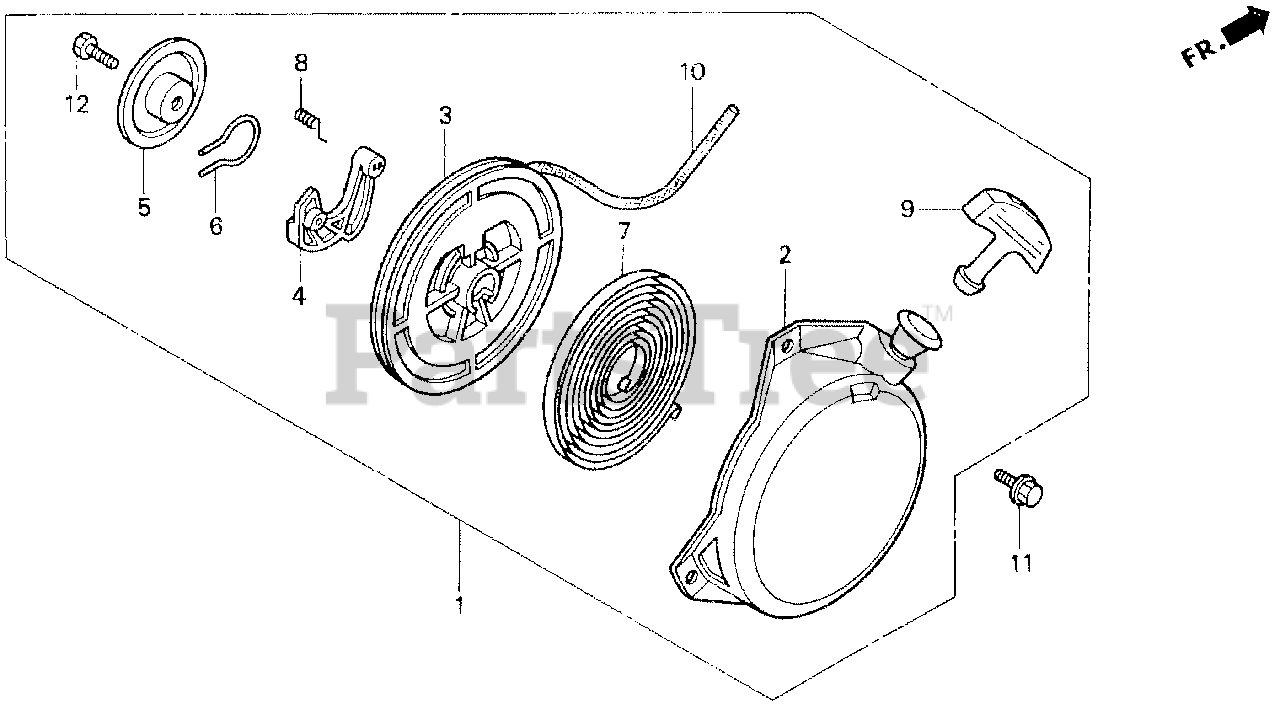

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZC0-004

STARTER ASSY., RECOIL

$

$

Not available

2

Honda 28410-ZC0-004

CASE, RECOIL STARTER

$

$

Not available

3

Honda 28420-ZA8-014

REEL, RECOIL STARTER

$36.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

RATCHET, STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZA8-902

KNOB, STARTER

$12.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER
(Superseded to 28462-ZE6-T02)

$5.99

$

In Stock, Qty 10

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

$5.99

$

In Stock, Qty 10

0

11

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0

12

Honda 92101-06012-0H

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0
