EX1000 A (EA4) - Honda Generator, Made in Japan (SN: EA4-1000001 - EA4-1236195) RECOIL STARTER (1) Parts Diagram

Generator, Made in Japan

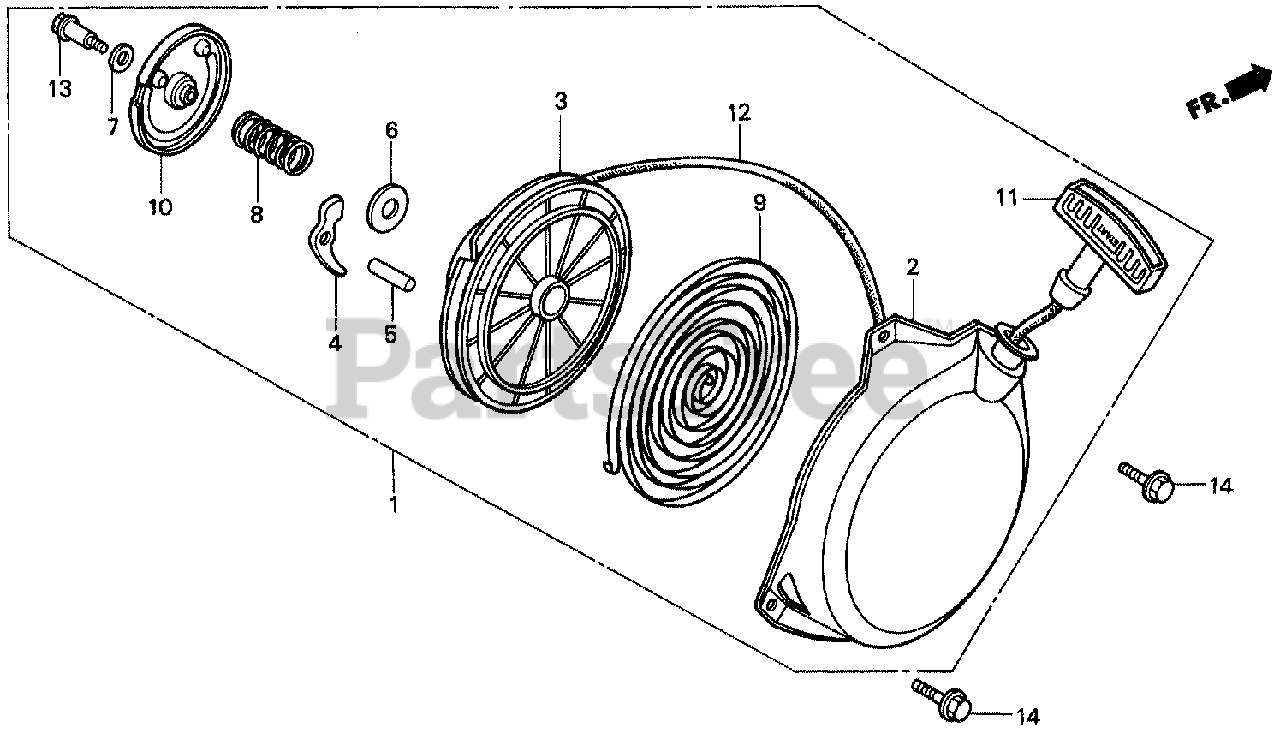

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZC0-003

STARTER ASSY., RECOIL

Note: Use up to Engine SN 1186838.

$

$

Not available

2

Honda 28410-ZC0-003

CASE, STARTER

Note: Use up to Engine SN 1186838.

$

$

Not available

3

Honda 28420-ZG0-003

SEE PART DETAILS - SUP; REEL, STARTER
(Superseded to 28421-Z1B-D10)

Note: Use up to Engine SN 1186838.

$35.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-003

SEE PART DETAILS - SUP; RATCHET, STARTER
(Superseded to 28422-Z1B-D10)

Note: Use up to Engine SN 1186838.

$7.99

$

In Stock, only 1 left!

0

4

Honda 28422-Z1B-D10

SEE PART DETAILS - PRI; RATCHET, STARTER

Note: Use up to Engine SN 1186838.

$7.99

$

In Stock, only 1 left!

0

5

Honda 28423-ZG0-003

SEE PART DETAILS - SUP; SHAFT, RATCHET
(Superseded to 28423-Z1B-D10)

Note: Use up to Engine SN 1186838.

$7.49

$

Usually ships in 3-6 days

0

6

Honda 28431-ZG0-003

SEE PART DETAILS - SUP; PLATE A, FRICTION
(Superseded to 28431-Z1B-D10)

Note: Use up to Engine SN 1186838.

$7.49

$

Usually ships in 3-6 days

0

7

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

Note: Use up to Engine SN 1186838.

$3.49

$

Usually ships in 3-6 days

0

7

Honda 28432-ZG0-004

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 1186838.

$3.49

$

Usually ships in 3-6 days

0

8

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

Note: Use up to Engine SN 1186838.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 28442-ZA8-003

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28443-Z1B-D10)

Note: Use up to Engine SN 1186838.

$30.99

$

Usually ships in 3-6 days

0

10

Honda 28443-ZG0-003

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-Z1B-D10)

Note: Use up to Engine SN 1186838.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 28474-Z1B-D10

SEE PART DETAILS - PRI; COVER, REEL STARTER

Note: Use up to Engine SN 1186838.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 28461-ZC0-751

SEE PART DETAILS - SUP; GRIP, STARTER

Note: Use up to Engine SN 1186838.

$10.99

$

Usually ships in 3-6 days

0

12

Honda 28462-ZA8-003

ROPE, STARTER (N/A: USE ALTERNATE P/N 08555-ZG921-11)

Note: Use up to Engine SN 1186838.

$

$

Currently unavailable

13

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 1186838.

$

$

Not available

14

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

Note: Use up to Engine SN 1186838.

$4.99

$

In Stock, Qty 20+

0
