EX1000 A (EA4) - Honda Generator, Made in Japan (SN: EA4-1000001 - EA4-1236195) FUEL TANK & HANDLE Parts Diagram

Generator, Made in Japan

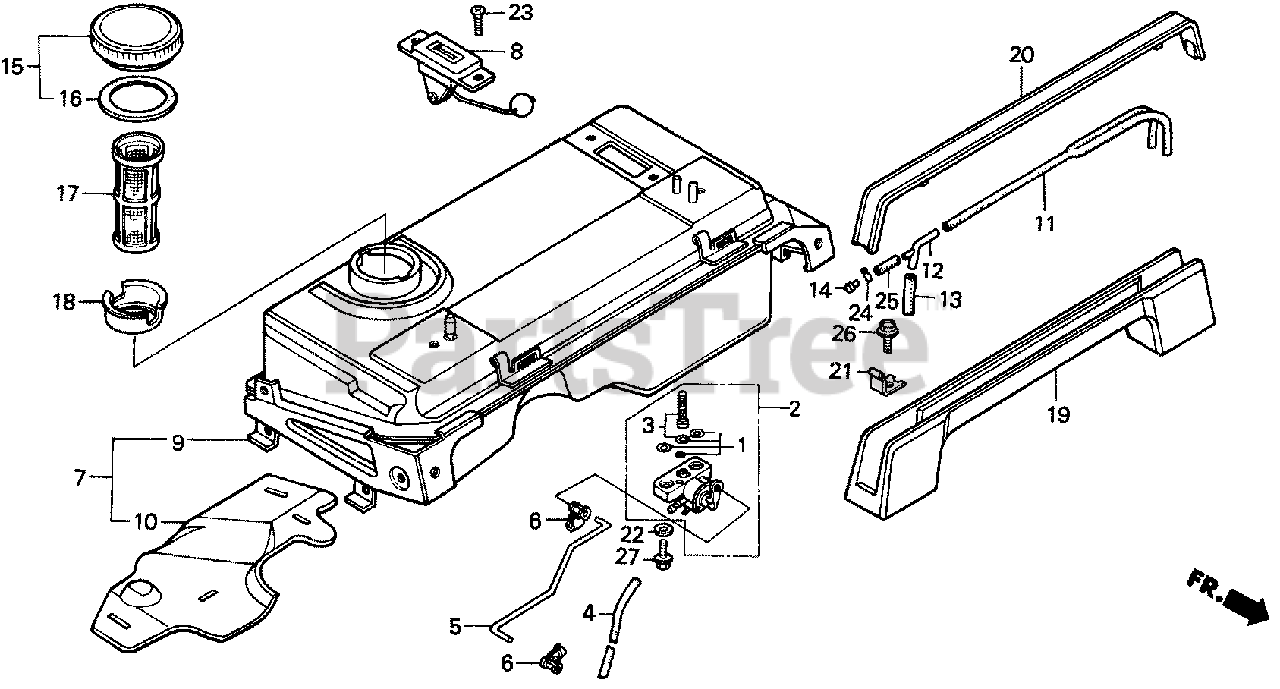

FUEL TANK & HANDLE Parts Diagram

  • Title
1

Honda 16080-892-003

GASKET SET, PETCOCK

$

$

Not available

2

Honda 16950-ZC0-005

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZC0-015)

Note: Use up to Frame SN 1098971.

$94.99

$

In Stock, only 2 left!

0

2

Honda 16950-ZC0-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$94.99

$

In Stock, only 2 left!

0

3

Honda 16952-892-003

SCREEN, FUEL STRAINER

$

$

Not available

4

Honda 16953-ZC0-000

TUBE, PETCOCK BREATHER

$

$

Not available

5

Honda 16955-ZC0-000

ROD, PETCOCK

$

$

Not available

6

Honda 16956-ZA7-000

JOINT, ROD

$6.49

$

In Stock, only 2 left!

0

7

Honda 17500-ZC0-010ZB

SEE PART DETAILS - PRI; TANK ASSY., FUEL *NH151M* (JAZZY GRAY METALLIC)

$

$

Not available

7

Honda 17500-ZC0-010ZJ

TANK ASSY., FUEL *R280* (POWER RED)

$

$

Not available

8

Honda 17505-ZC0-003

METER ASSY., FUEL

$36.99

$

Usually ships in 3-6 days

0

9

Honda 17500-ZC0-010ZB

SEE PART DETAILS - PRI; TANK ASSY., FUEL *NH151M* (JAZZY GRAY METALLIC)

$

$

Not available

9

Honda 17500-ZC0-010ZJ

TANK ASSY., FUEL *R280* (POWER RED)

$

$

Not available

10

Honda 17530-ZC0-000

INSULATOR, HEAT

$32.99

$

Usually ships in 3-6 days

0

11

Honda 17601-892-000

TUBE, HANDLE BREATHER

$

$

Not available

12

Honda 17602-ZC0-000

JOINT, BREATHER

$

$

Not available

13

Honda 17603-ZC0-000

TUBE B, HANDLE

$

$

Not available

14

Honda 17604-ZC0-003

FILTER, GASOLINE

$7.99

$

Usually ships in 3-6 days

0

15

Honda 17620-ZA7-003

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

16

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

17

Honda 17670-ZC0-630

FILTER, FUEL

$

$

Not available

18

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

$9.99

$

In Stock, only 4 left!

0

19

Honda 68110-ZC0-000

HANDLE, CARRYING

$

$

Not available

20

Honda 68121-ZA7-000

SEE PART DETAILS - PRI; COVER, HANDLE

$

$

Not available

20

Honda 68121-ZC0-000

SEE PART DETAILS - SUP; COVER, HANDLE

Note: Use up to Frame SN 1169997.

$

$

Currently unavailable

21

Honda 68125-892-000

HOOK, HANDLE COVER

$

$

Not available

22

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

23

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 10

0

24

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

25

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X19)

$14.99

$

Usually ships in 3-6 days

0

26

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

27

Honda 96001-06020-00

BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0
