EX1000 A (EA4) - Honda Generator, Made in Japan (SN: EA4-1000001 - EA4-1236195) CYLINDER + IGNITION COIL Parts Diagram

Generator, Made in Japan

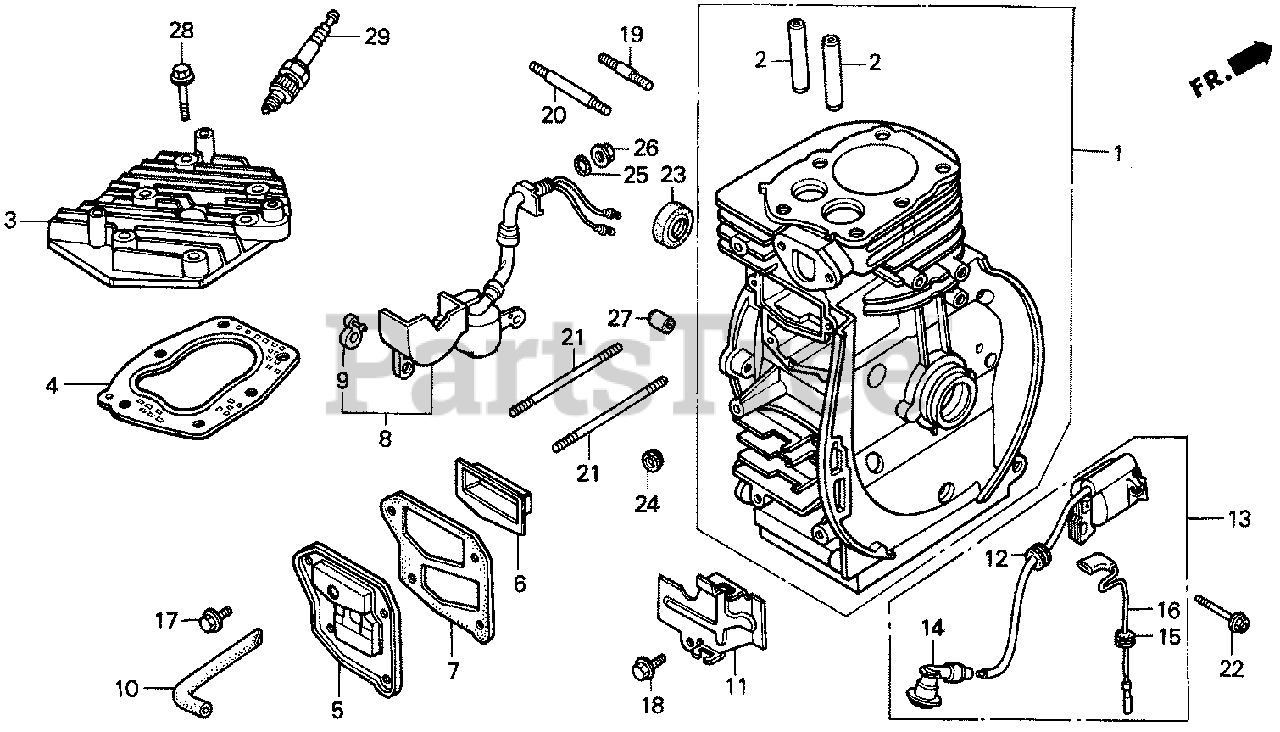

CYLINDER + IGNITION COIL Parts Diagram

  • Title

1

Honda 12000-ZC0-405

CYLINDER ASSY. (000)

$441.99

$

Usually ships in 3-6 days

0

2

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 12134-896-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE) Use up to Engine SN 1175298.

$

$

Currently unavailable

3

Honda 12221-ZC0-000

CYLINDER HEAD

$49.99

$

Usually ships in 3-6 days

0

4

Honda 12281-ZC0-003

GASKET, CYLINDER HEAD

$19.99

$

Usually ships in 3-6 days

0

5

Honda 12361-ZG0-000

COVER, TAPPET ROOM

$

$

Not available

6

Honda 12370-ZG0-000

SEPARATOR (INNER)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 12375-ZG0-000

SEE PART DETAILS - SUP; GASKET, TAPPET COVER

Note: Use up to Engine SN 1190713.

$

$

Not available

7

Honda 12375-ZG0-010

SEE PART DETAILS - PRI; GASKET, TAPPET COVER

$6.99

$

In Stock, only 1 left!

0

8

Honda 15510-ZC0-003

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL (TOYO DENSO)
(Superseded to 15510-ZC0-023)

Note: Use up to Engine SN 1056113.

$

$

Not available

8

Honda 15510-ZC0-013

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL (TOYO DENSO)

Note: Use up to Engine SN 1179748.

$

$

Currently unavailable

8

Honda 15510-ZC0-023

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL (TOYO DENSO)

$

$

Not available

9

Honda 15512-ZC0-000

BUSH, LEVEL SWITCH

$2.99

$

Usually ships in 3-6 days

0

10

Honda 15721-896-010

TUBE, BREATHER

$8.99

$

Usually ships in 3-6 days

0

11

Honda 16105-ZC0-000

HOLDER, TUBE

$

$

Not available

12

Honda 19613-ZA8-000

GROMMET, CORD

$3.99

$

Usually ships in 3-6 days

0

13

Honda 30500-ZC0-013

COIL ASSY., IGNITION

Note: Use up to Engine SN 1227387.

$

$

Not available

13

Honda 30500-ZC0-023

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZC0-033)

Note: Use from Engine SN 1227388 to 1426590.

$

$

Not available

13

Honda 30500-ZC0-033

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

Note: Use from Engine SN 1227388.

$

$

Not available

14

Honda 30700-ZC0-013

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

15

Honda 31486-898-700

GROMMET, SWITCH WIRE

$

$

Not available

16

Honda 36101-ZC0-003

WIRE, STOP SWITCH

Note: Use from Engine SN 1227388.

$

$

Not available

17

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

19

Honda 90033-399-000

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90034-ZC0-000

BOLT, STUD (6X63)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90041-892-000

BOLT, STUD (5X85)

$4.99

$

In Stock, only 2 left!

0

22

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

23

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 91231-816-000

OIL SEAL (5X10X4)

$

$

Not available

25

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 17

0

26

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

28

Honda 95801-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$1.49

$

In Stock, Qty 10

0

29

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.49

$

In Stock, Qty 5

0

29

Honda 98076-54757

SPARK PLUG (W14FR-U)

$3.49

$

Usually ships in 3-6 days

0
