EX1000 A (EA4) - Honda Generator, Made in Japan (SN: EA4-1000001 - EA4-1236195) CARBURETOR Parts Diagram

Generator, Made in Japan

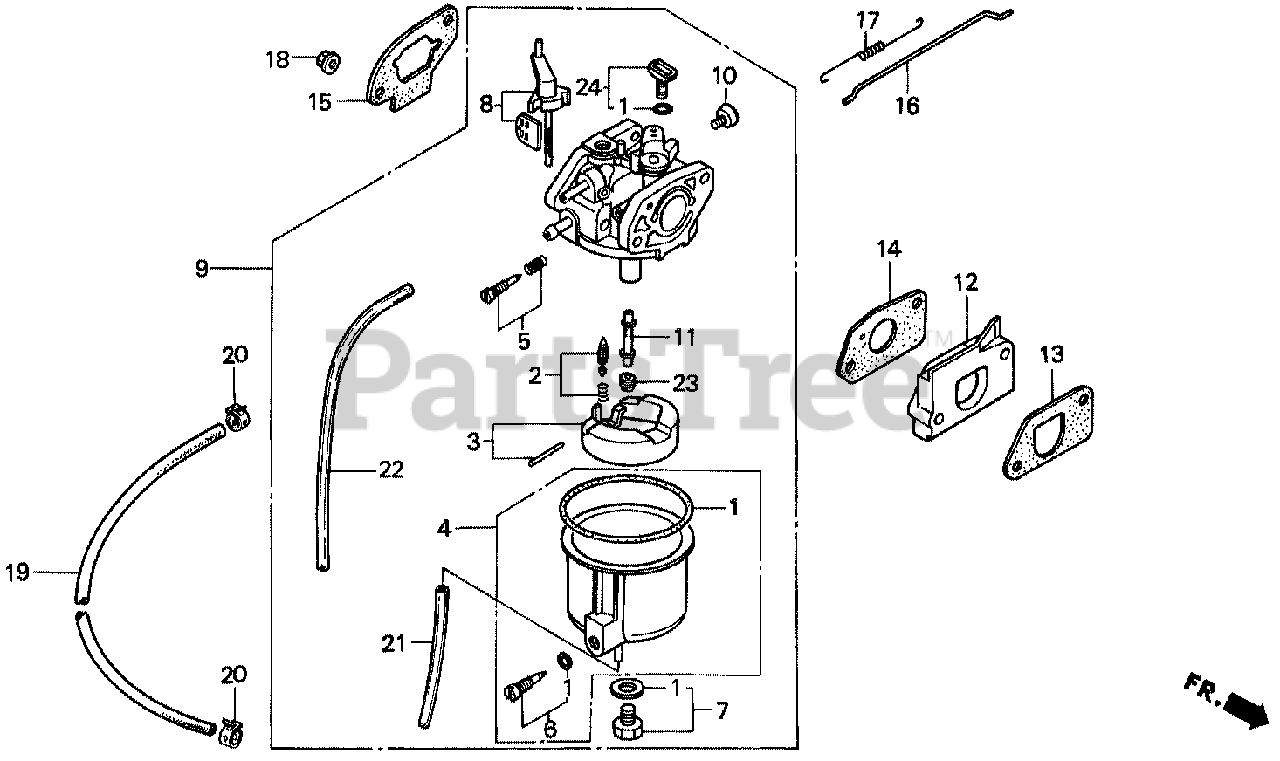

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZC0-005

GASKET SET

$25.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZC0-005

CHAMBER SET, FLOAT

$

$

Not available

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZC0-005

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZC0-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZC0-005

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF03A A)
(Superseded to 16100-ZC0-015)

Note: Use up to Engine SN 1095877.

$156.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZC0-015

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF03A B/C)

$156.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZC0-005

NOZZLE, MAIN

$32.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZC0-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZC0-010)

$15.99

$

In Stock, only 1 left!

0

12

Honda 16211-ZC0-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 10

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16269-ZG0-800

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 10

0

16

Honda 16555-ZG0-000

ROD, GOVERNOR

$3.49

$

In Stock, only 1 left!

0

17

Honda 16562-ZA7-000

SPRING, THROTTLE RETURN

$

$

Not available

18

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95001-45003-20M

SEE PART DETAILS - SUP; BULK HOSE, FUEL (4.5X3000) (4.5X470)

$

$

Currently unavailable

20

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 7

0

21

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X160)

$28.99

$

In Stock, only 1 left!

0

22

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X250)

$28.99

$

In Stock, only 1 left!

0

23

Honda 99101-187-0500

SEE PART DETAILS - SUP; JET, MAIN (#50)
(Superseded to 99101-ZG0-0500)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0520

SEE PART DETAILS - SUP; JET, MAIN (#52)

$

$

Not available

23

Honda 99101-187-0550

SEE PART DETAILS - SUP; JET, MAIN (#55)
(Superseded to 99101-ZG0-0550)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0580

JET, MAIN (#58)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0600

JET, MAIN (#60)

$10.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 1 left!

0
