EX-RMS - RedMax Maxtreme Sweeper Attachment (SN: 000101 & Above) (2006-11) 003 - UNIT PARTS Parts Diagram

Maxtreme Sweeper Attachment

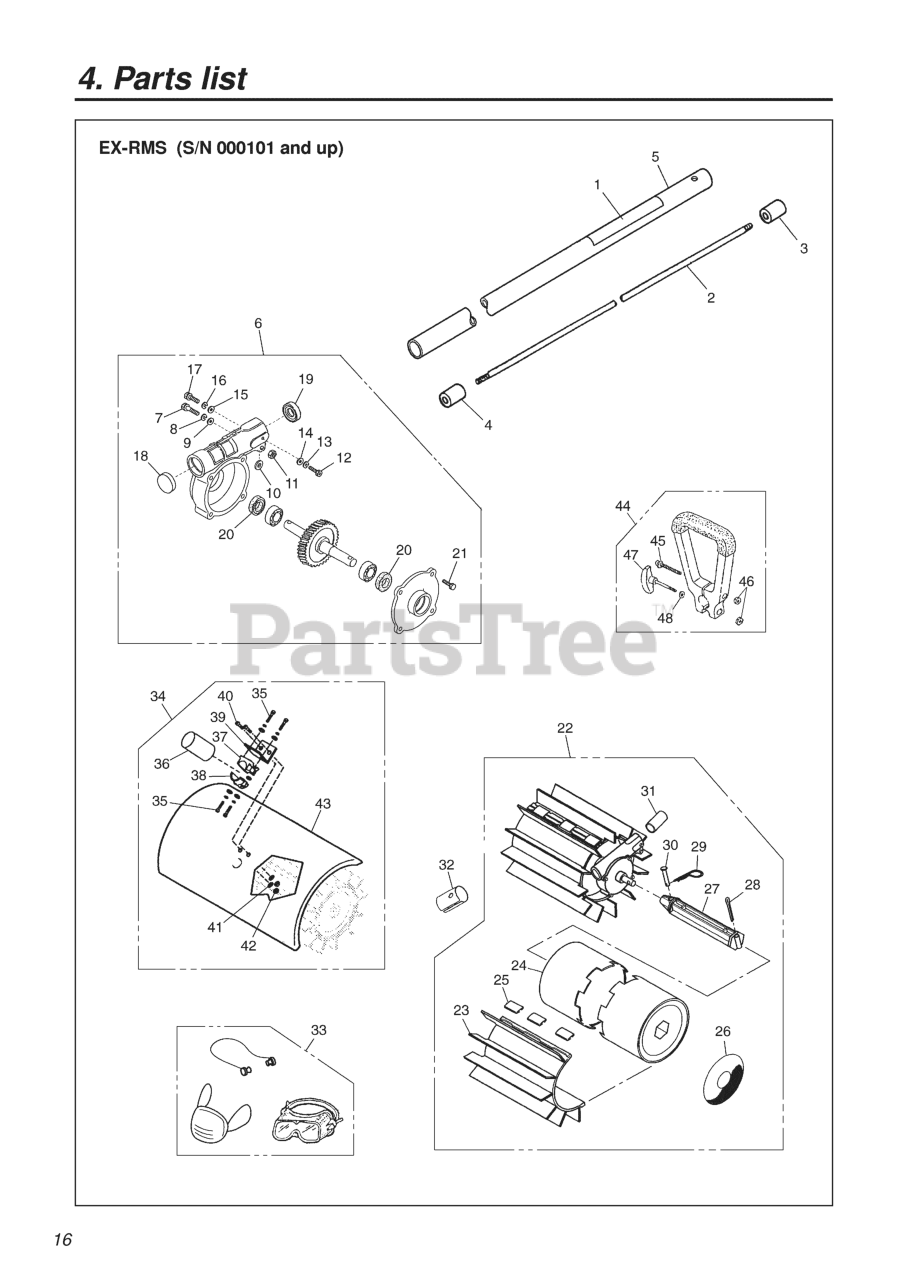

003 - UNIT PARTS Parts Diagram

  • Title
1

RedMax 848AF05820

PIPE COMP
(Superseded to 510994501)

$74.99

$

Usually ships in 3-10 days

0

2

RedMax T310212210

SHAFT
(Superseded to 521813601)

$28.99

$

Usually ships in 3-10 days

0

3

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$26.99

$

In Stock, only 2 left!

0

4

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

5

RedMax 848AF090R0

PLATE-NAME

$3.61

$

Usually ships in 3-10 days

0

6

$217.05

$

Usually ships in 3-10 days

0

7

RedMax 0125230630

BOLT, M6 x 30
(Superseded to 522655401)

$3.49

$

Usually ships in 3-10 days

0

8

RedMax 0160120619

SPRING WASHER

$0.11

$

Usually ships in 3-10 days

0

9

RedMax 50509

WASHER, FLAT
(Superseded to 574044401)

$

$

Not available

10

RedMax 50509

WASHER, FLAT
(Superseded to 574044401)

$

$

Not available

11

RedMax 0158010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

12

RedMax 0125230512

BOLT, M5 x 12
(Superseded to 516070401)

$

$

Not available

13

RedMax 0160120513

WASHER, SPRING M4 x 1.3
(Superseded to 516076301)

$3.49

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

$

$

Not available

16

RedMax 0160120513

WASHER, SPRING M4 x 1.3
(Superseded to 516076301)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 80008

SCREW
(Superseded to 574044901)

$

$

Not available

18

RedMax 50502

PLUG, HOUSING
(Superseded to 574044101)

$

$

Not available

19

RedMax 50514

50522

$

$

Not available

20

RedMax 50515

50523

$

$

Not available

21

RedMax 50508

SCREW
(Superseded to 574044301)

$

$

Not available

22

RedMax RMS-A

SWEEPER ASSY

$

$

Not available

$

$

Not available

$18.08

$

Usually ships in 3-10 days

0

25

RedMax 9990933007

CLIP, BELT

$

$

Not available

26

RedMax 61739

LABEL, REDMAX
(Superseded to 574044801)

$

$

Not available

27

RedMax 9990933116

AXLE, DRUM (RPLS -33016)

$

$

Not available

28

RedMax 9990933020

PIN, COTTER

$0.38

$

Usually ships in 3-10 days

0

29

RedMax 9990933008

PIN, HITCH

$

$

Not available

30

RedMax 9990933118

PIN, CLEVIS (RPLS -33018)

$0.60

$

Usually ships in 3-10 days

0

31

RedMax 9990933034

PROTECTOR, TUBE

$5.50

$

Usually ships in 3-10 days

0

32

$10.45

$

Usually ships in 3-10 days

0

33

RedMax 999096771

SAFETY KIT

$9.57

$

Usually ships in 3-10 days

0

34

RedMax 9990933021

DEBRIS SHIELD ASSEMBLY

$

$

Not available

$0.95

$

Usually ships in 3-10 days

0

36

$3.82

$

Usually ships in 3-10 days

0

37

RedMax 7205114110

BRACKET, HANDLE

$14.30

$

Usually ships in 3-10 days

0

38

RedMax 7205114120

CAP, LOWER

$8.13

$

Usually ships in 3-10 days

0

39

RedMax 9990922023

BRACKET, SHIELD

$

$

Not available

$0.22

$

Usually ships in 3-10 days

0

41

$0.08

$

Usually ships in 3-10 days

0

$0.35

$

Usually ships in 3-10 days

0

43

RedMax 9990933022

99909-33023

$

$

Not available

44

RedMax 7295114100

HANDLE ASSY (RPLS 99909-33009)

$

$

Not available

$1.12

$

Usually ships in 3-10 days

0

46

RedMax 0218010605

01500-06051

$

$

Not available

$

$

Not available

48

$0.38

$

Usually ships in 3-10 days

0
