EX 75-R (866070) - Briggs & Stratton Rammer Cylinder Guide Group (80003879) Parts Diagram

Rammer

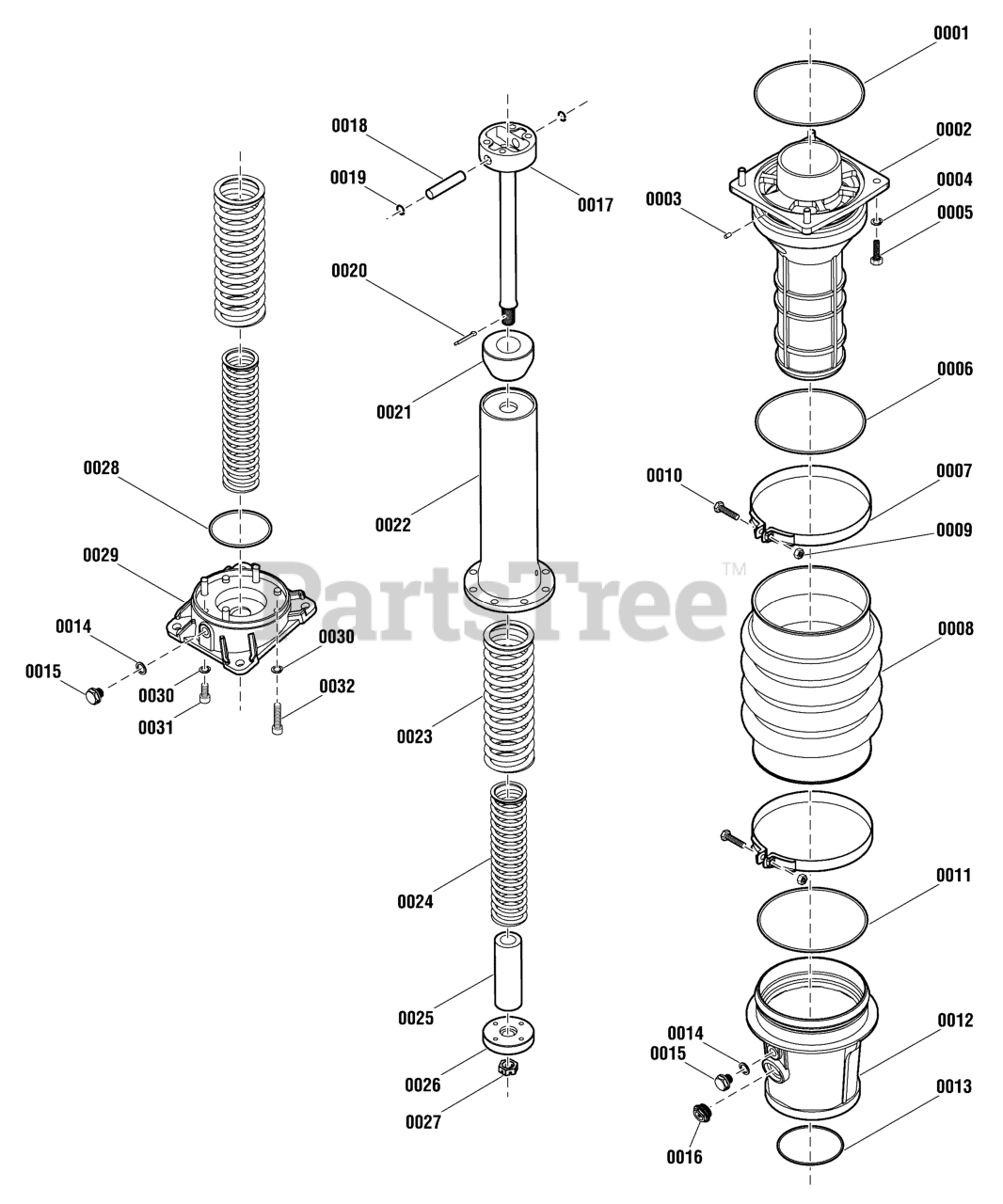

Cylinder Guide Group (80003879) Parts Diagram

  • Title
0001

Murray 702893

O-RING

$

$

Currently unavailable

0002

Murray 702885

CYLINDER GUIDE

$

$

Currently unavailable

0003

Murray 702889

PIN, Rubber Stretch

$

$

Currently unavailable

0004

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

0005

Murray 702732

BOLT, Hex, M10 x 35

$

$

Currently unavailable

0006

Murray 702892

O-RING

$

$

Currently unavailable

0007

$

$

Currently unavailable

0008

Murray 702886

STRETCH TUBE, Rubber

$

$

Currently unavailable

0009

Murray 700637

NUT, M8

$

$

Not available

0010

Murray 700621

BOLT, Hex, M8 x 40

$

$

Currently unavailable

0011

Murray 702892

O-RING

$

$

Currently unavailable

0012

Murray 702890

CYLINDER GUIDE, Lower

$

$

Currently unavailable

0013

Murray 702896

O-RING

$

$

Currently unavailable

0014

Murray 702891

GASKET, CU

$

$

Currently unavailable

0015

Murray 702894

PLUG SCREW

$

$

Currently unavailable

0016

Murray 702895

OIL LEVELER ASSEMBLY

$

$

Currently unavailable

0017

Murray 702909

GUIDE, Hammer Rod

$

$

Currently unavailable

0018

Murray 702910

PIN, Hammer Rod

$

$

Currently unavailable

0019

Murray 702923

CIRCLIP

$

$

Currently unavailable

0020

Murray 702937

SPLIT PIN

$

$

Currently unavailable

0021

Murray 702906

RUBBER HEAD

$

$

Currently unavailable

0022

Murray 702900

GUIDE TUBE, Lower

$

$

Currently unavailable

0023

Murray 702908

SPRING, Outer

$

$

Currently unavailable

0024

Murray 702907

SPRING, Inner

Note: (4 HP)

$

$

Currently unavailable

0025

Murray 702905

SLEEVE, Rubber

$

$

Currently unavailable

0026

Murray 702904

GUIDE, Hammer

$

$

Currently unavailable

0027

Murray 702903

SLOT SCREW , M18 x 1.5

$

$

Currently unavailable

0028

Murray 702899

O-RING

$

$

Currently unavailable

0029

Murray 702898

GUIDEHOLDER

$

$

Currently unavailable

0030

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

0031

Murray 702921

CAPSCREW, Hex Socket Head, M10 x 20

$

$

Currently unavailable

0032

Murray 702922

CAPSCREW, Hex Socket Head, M10 x 40

$

$

Currently unavailable
