EX 436-T (866056) - Briggs & Stratton Power Trowel Reduction Gearbox Group (80003061) Parts Diagram

Power Trowel

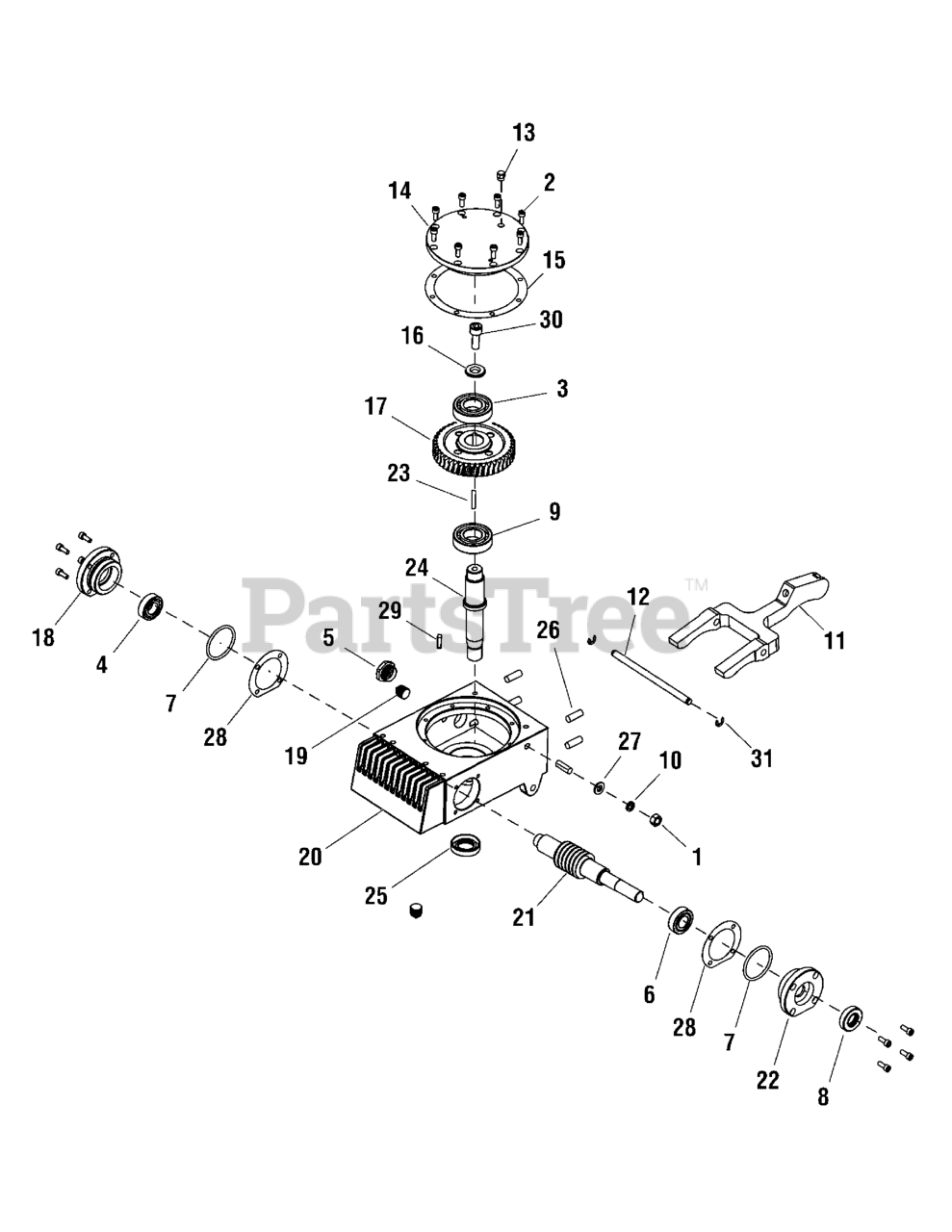

Reduction Gearbox Group (80003061) Parts Diagram

  • Title
1

Murray 700700

NUT, Hex, M10

$

$

Currently unavailable

2

Murray 700712

SCREW, Hex Socket Head, M6 x 16

$

$

Currently unavailable

3

Murray 700717

TAPERED ROLLER BEARING

$

$

Currently unavailable

4

Murray 700720

BALL BEARING, Deep Groove

$

$

Currently unavailable

5

Murray 700721

OIL PLUG

$

$

Currently unavailable

6

Murray 700727

TAPERED ROLLER BEARING

$

$

Currently unavailable

7

Murray 700729

O-RING

$

$

Currently unavailable

8

Murray 700731

OIL SEAL

$

$

Currently unavailable

9

Murray 700735

BALL BEARING, Deep Groove

$

$

Not available

10

Murray 700742

WASHER, Spring

$

$

Currently unavailable

11

Murray 702452

SHIFTING YOKE

$

$

Currently unavailable

12

Murray 702457

SHAFT, Shifting Yoke

$

$

Currently unavailable

13

Murray 702462

RELIEF VALVE

$

$

Currently unavailable

14

Murray 702468

COVER, Gearbox

$

$

Currently unavailable

15

Murray 702472

GASKET, Plastic

$

$

Currently unavailable

16

Murray 702476

CLAMPING RING

$

$

Currently unavailable

17

Murray 702479

WORM WHEEL

$2.99

$

Usually ships in 3-10 days

0

18

Murray 702483

BEARING BLOCK, Right

$2.49

$

Usually ships in 3-10 days

0

19

Murray 702491

SOCKET Hexagonal

$

$

Currently unavailable

20

Murray 702494

GEAR BOX

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Murray 702502

BEARING BLOCK, Left

$

$

Not available

23

Murray 702504

KEY, Woodruff, 6 x 10 x 25

$

$

Currently unavailable

24

Murray 702506

SHAFT, Worm Wheel

$

$

Currently unavailable

25

Murray 702510

OIL SEAL

$

$

Not available

26

Murray 702514

STUD, Double End, M10 x 28-40

$

$

Not available

27

Murray 702515

WASHER, Plain

$

$

Currently unavailable

28

Murray 702578

GASKET, Plastic

$

$

Currently unavailable

29

Murray 702580

KEY B6 x 25

$

$

Currently unavailable

30

Murray 702581

SCREW, Socket Head, M10 x 25

$2.49

$

Usually ships in 3-10 days

0

31

Murray 702717

CIRCLIP

$

$

Currently unavailable
