EX 436-T (866056) - Briggs & Stratton Power Trowel Handle Group (80003059) Parts Diagram

Power Trowel

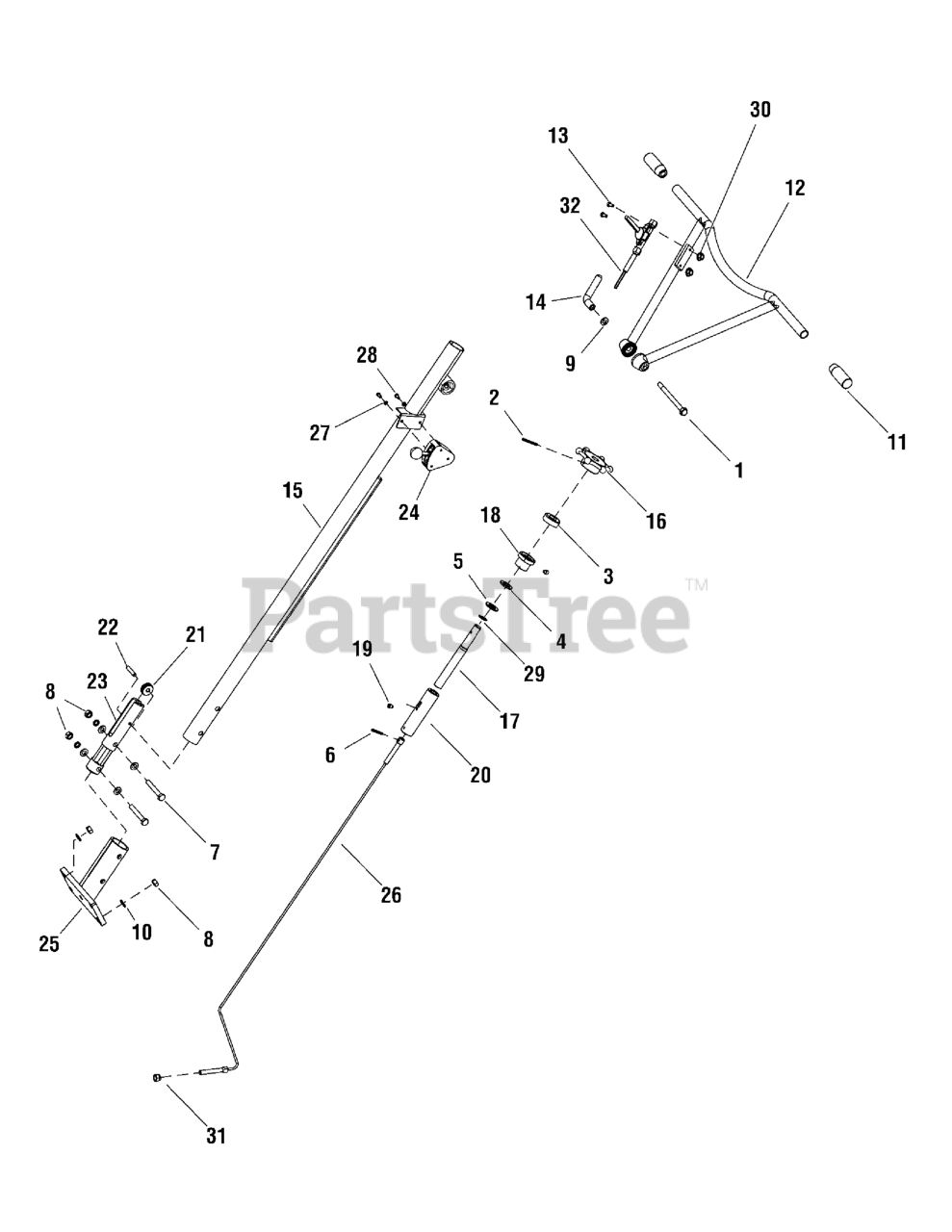

Handle Group (80003059) Parts Diagram

  • Title

1

Murray 700672

BOLT, Hex Head, M10 x 120

$

$

Currently unavailable

2

Murray 700677

PIN, Parallel, 5 x 50

$

$

Currently unavailable

3

Murray 700679

THRUST BALL BEARING

$

$

Currently unavailable

4

Murray 700683

WASHER, Wave

$

$

Currently unavailable

5

Murray 700684

WASHER, Plain

$

$

Currently unavailable

6

Murray 700688

PIN, Spring Type, 5 x 35

$

$

Currently unavailable

7

Murray 700698

BOLT, Hex, M10 x 70

$

$

Currently unavailable

8

Murray 700700

NUT, Hex, M10

$

$

Currently unavailable

9

Murray 700724

WASHER, Plain

$

$

Currently unavailable

10

Murray 700742

WASHER, Spring

$

$

Currently unavailable

11

Murray 702455

HANDLE, Rubber

$

$

Currently unavailable

12

Murray 702459

HANDLE

$

$

Currently unavailable

13

Murray 702465

THROTTLE ASSEMBLY

$2.49

$

Usually ships in 3-10 days

0

14

Murray 702470

LOCKING HANDLE

$

$

Currently unavailable

15

Murray 702474

CENTER JOINTING PIPE

$

$

Currently unavailable

16

Murray 702477

KNOB

$

$

Currently unavailable

17

Murray 702481

ADJUST SCREW ROD

$

$

Currently unavailable

18

Murray 702486

BUSHING

$2.49

$

Usually ships in 3-10 days

0

19

Murray 702489

SCREW, Hex Socket Head, M6 x 8

$

$

Not available

20

Murray 702493

ADJUST SCREW PIPE

$

$

Currently unavailable

21

Murray 702497

ROLLER WHEEL

$

$

Currently unavailable

22

Murray 702498

PIN, Taper, Internal Thread, 6 x 30

$

$

Currently unavailable

23

Murray 702499

SHAFT, Roller Wheel

$2.49

$

Usually ships in 3-10 days

0

24

Murray 702051

STOPPING DEVICE

$227.99

$

Usually ships in 2-12 days

0

25

Murray 702503

HANDLE LINK PART

$

$

Not available

26

Murray 702505

ADJUSTABLE WIRE

$

$

Not available

27

Murray 702507

WASHER, Plain

$2.49

$

Usually ships in 3-10 days

0

28

Murray 702509

SCREW, Pan Head, Cross Recessed, M5 x 10

$

$

Not available

29

Murray 702511

CIRCLIP

$

$

Not available

30

Murray 702576

NUT, Hex, Prevailing Torque, M10

$

$

Currently unavailable

32

Murray 702715

SCREW, Hex Socket Head, Countersunk, M6 x 16

$

$

Currently unavailable
