EX 436-T (866056) - Briggs & Stratton Power Trowel Engine Group (80003060) Parts Diagram

Power Trowel

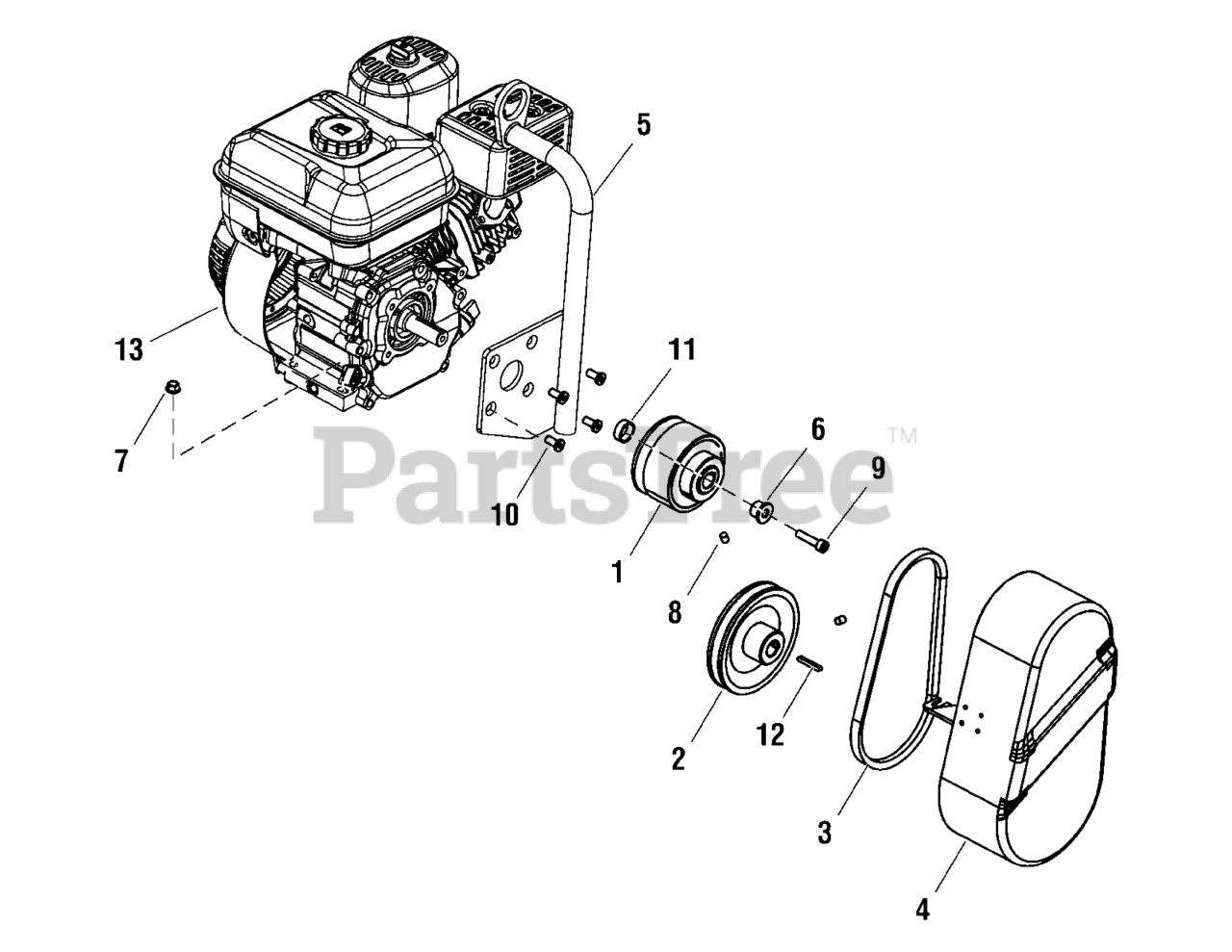

Engine Group (80003060) Parts Diagram

  • Title

1

Murray 702449

CLUTCH ASSEMBLY

$

$

Currently unavailable

2

Murray 702451

PULLEY

$6.49

$

Usually ships in 3-10 days

0

3

Murray 702456

BELT, A-26

$

$

Currently unavailable

4

Murray 702460

BELT COVER

$2.49

$

Usually ships in 3-10 days

0

5

Murray 702466

HOOK, Lifting

$

$

Currently unavailable

6

Murray 702467

LOCATING BUSHSHING

$

$

Currently unavailable

7

Murray 702475

NUT, Hex Flange, M8

$2.49

$

Usually ships in 3-10 days

0

8

Murray 702482

SETSCREW, Hex Socket Head, M8 x 10

$

$

Currently unavailable

9

Murray 702579

BOLT, Hex Socket Head, M8 x 35

$

$

Currently unavailable

10

Murray 702538

SCREW, Hex Socket Head, Countersunk, M8 x 20

$

$

Currently unavailable

11

Murray 702584

BUSHING, Clutch Spacer

$

$

Currently unavailable

12

Murray 702716

KEY, B5 x 35

$

$

Currently unavailable

13

Murray 702485

ENGINE

Note: (Engine Model: 106232-0154-H7)

$

$

Currently unavailable
