EX 436-T (866056) - Briggs & Stratton Power Trowel Cross Blade Group (80003062) Parts Diagram

Power Trowel

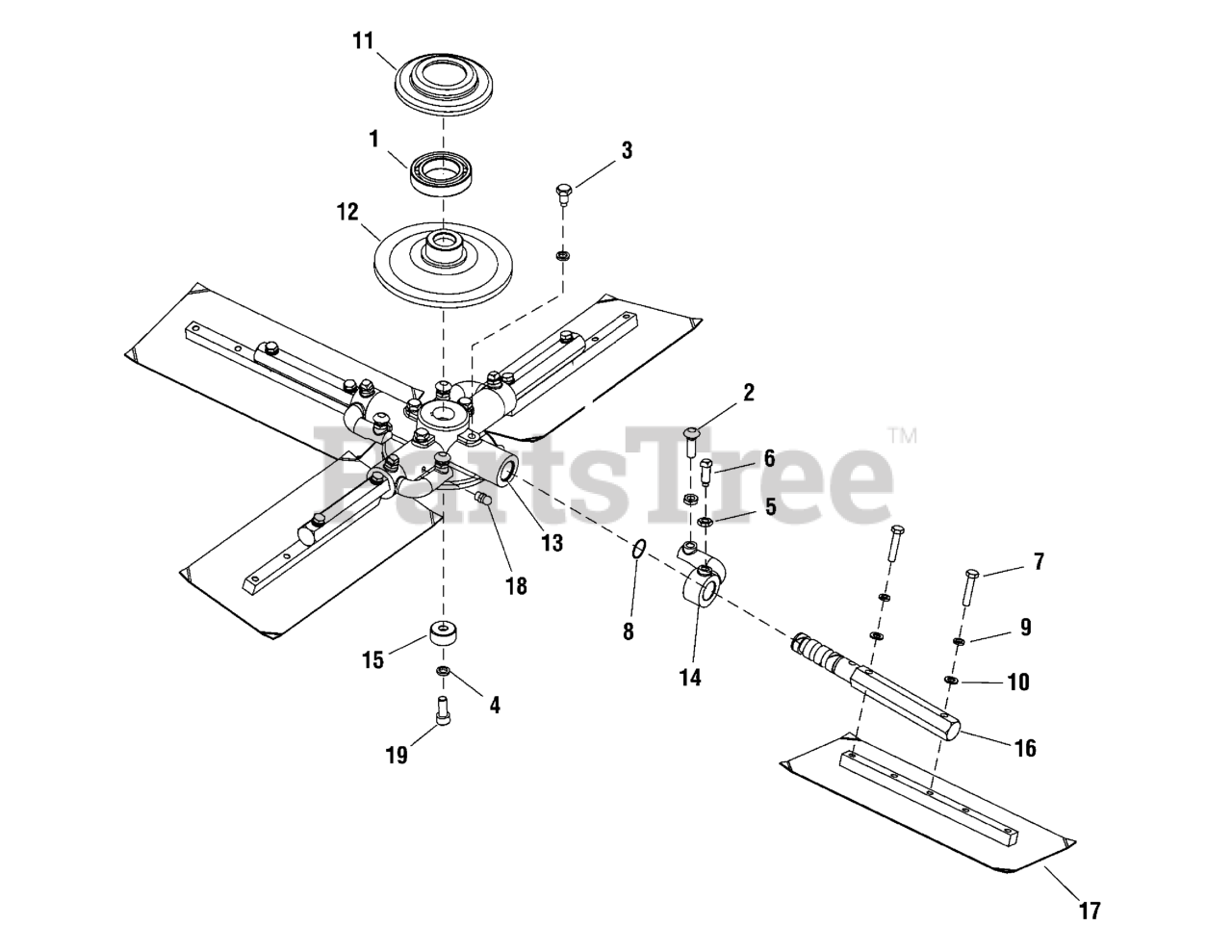

Cross Blade Group (80003062) Parts Diagram

  • Title
1

Murray 700738

BALL BEARING, Deep Groove

$

$

Currently unavailable

2

Murray 700740

BOLT, Cup Head, M10 x 35

$

$

Currently unavailable

3

Murray 700741

BOLT, Hex, M10 x 20

$

$

Currently unavailable

4

Murray 700742

WASHER, Spring

$

$

Currently unavailable

5

Murray 700743

NUT, M10

$

$

Currently unavailable

6

Murray 700744

BOLT, Hex Head, M8 x 40

$

$

Currently unavailable

7

Murray 700745

O-RING

$

$

Not available

8

Murray 700748

WASHER, Spring

$

$

Currently unavailable

9

Murray 700756

WASHER, Spring

$

$

Currently unavailable

10

Murray 700757

WASHER, Plain

$

$

Currently unavailable

11

Murray 702453

COVER, Platen

$2.99

$

Usually ships in 3-10 days

0

12

Murray 702463

PLATEN

$

$

Currently unavailable

13

Murray 702480

CROSS BASE

$

$

Not available

14

$

$

Currently unavailable

15

Murray 702488

PACKING SET

$

$

Currently unavailable

16

Murray 702492

BRACKET, Blade

$

$

Currently unavailable

17

Murray 702495

BLADE ASSEMBLY

$

$

Currently unavailable

18

Murray 702500

OIL PLUG, M10 x 1

$119.99

$

Usually ships in 3-10 days

0

19

Murray 702581

SCREW, Hex Socket Head, M10 x 25

$2.49

$

Usually ships in 3-10 days

0
