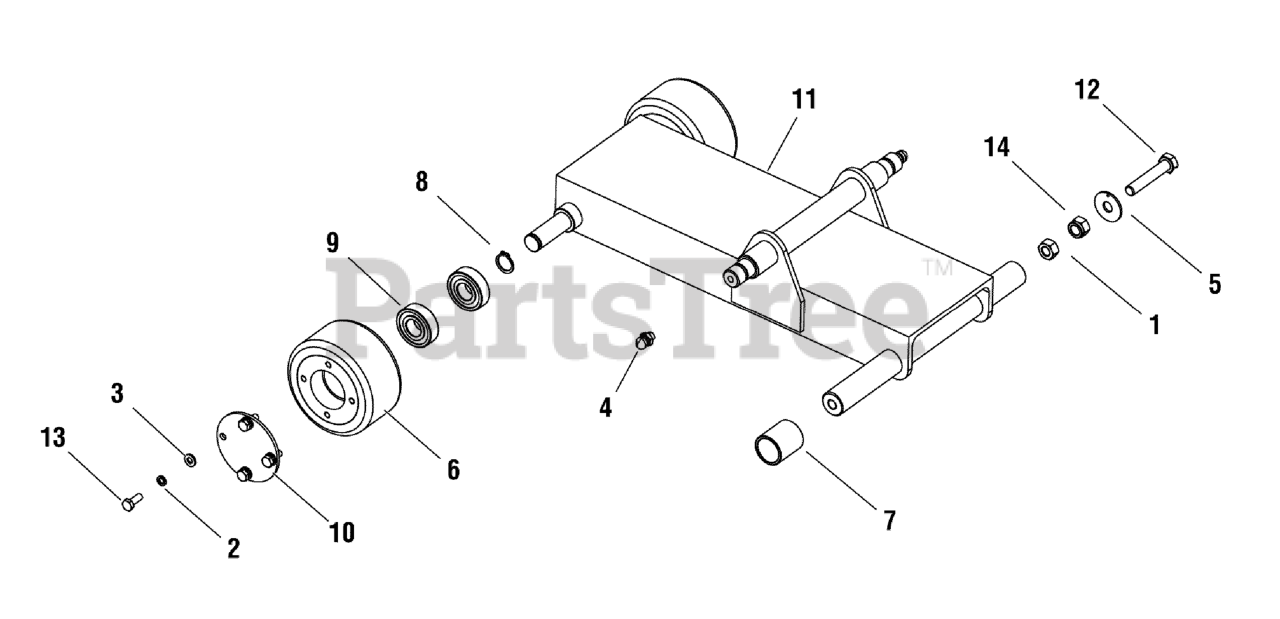

EX 20-S (866057) - Briggs & Stratton Concrete Floor Walk-Behind Saw Wheel Frame Group (80003341) Parts Diagram

Concrete Floor Walk-Behind Saw

Wheel Frame Group (80003341) Parts Diagram

  • Title
1

Murray 700608

NUT, Hex, M10

$

$

Currently unavailable

2

Murray 700666

WASHER, Spring

$

$

Currently unavailable

3

Murray 700667

WASHER, Flat

$

$

Currently unavailable

4

Murray 702651

NOZZLE, Grease

$

$

Currently unavailable

5

Murray 702662

WASHER, Flat

$2.49

$

Usually ships in 3-10 days

0

6

Murray 702663

WHEEL, Front

$

$

Currently unavailable

7

Murray 702664

BUSHING

$

$

Currently unavailable

8

Murray 702665

CIRCLIP

$

$

Currently unavailable

9

Murray 702666

BEARING

$

$

Currently unavailable

10

Murray 702667

COVER, Dustproof

$

$

Currently unavailable

11

Murray 702668

FRAME, Wheel

$

$

Currently unavailable

12

Murray 702707

BOLT, Hex, M10 x 55

$

$

Currently unavailable

13

Murray 702710

BOLT, Hex, M6 x 16

$

$

Not available

14

Murray 702749

NUT, Hex, Prevailing Torque, M10

$2.49

$

Usually ships in 3-10 days

0
