EX 20-S (866057) - Briggs & Stratton Concrete Floor Walk-Behind Saw Rear Wheel Group (80003335) Parts Diagram

Concrete Floor Walk-Behind Saw

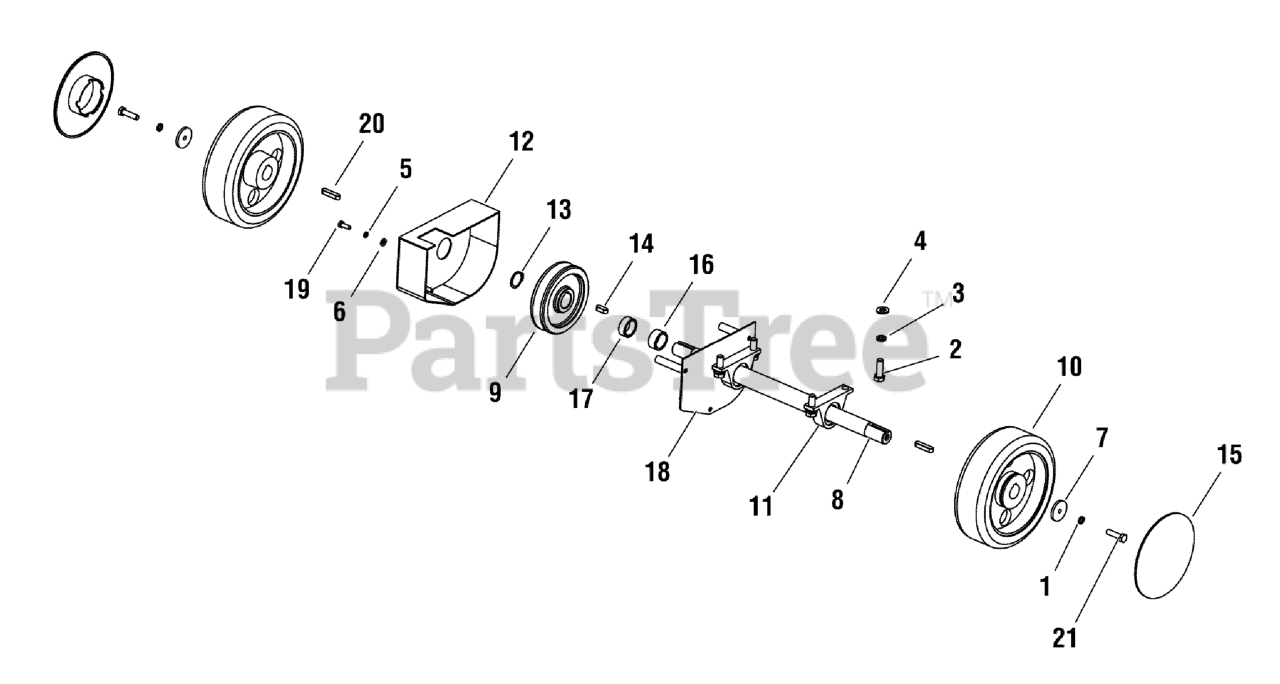

Rear Wheel Group (80003335) Parts Diagram

  • Title
1

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

2

Murray 700604

WASHER, Spring, 8

$

$

Currently unavailable

3

Murray 700605

WASHER, Flat

$

$

Currently unavailable

4

Murray 700654

BOLT, Hex, M10 x 30

$

$

Not available

5

Murray 700666

WASHER, Spring

$

$

Currently unavailable

6

Murray 700667

WASHER, Flat

$

$

Currently unavailable

7

Murray 702531

WASHER, Flat

$2.49

$

Usually ships in 3-10 days

0

8

Murray 702682

SHAFT, Rear Wheel

$

$

Currently unavailable

9

Murray 702683

WORM WHEEL

$

$

Currently unavailable

10

Murray 702684

WHEEL, Rear

$

$

Currently unavailable

11

Murray 702685

BEARING

$

$

Currently unavailable

12

Murray 702686

SHUCK SEAM, Worm Wheel

$

$

Currently unavailable

13

Murray 702687

CIRCLIP

$136.99

$

Usually ships in 3-10 days

0

14

$

$

Currently unavailable

15

Murray 702690

COVER, Rear Wheel

$

$

Currently unavailable

16

Murray 702691

BUSHING

$

$

Currently unavailable

17

Murray 702692

BUSHING

$

$

Currently unavailable

18

Murray 702693

COVER, Worm Wheel

$

$

Currently unavailable

19

Murray 702710

BOLT, Hex, M6 x 16

$

$

Not available

20

$

$

Currently unavailable

21

Murray 702730

BOLT, Hex, M8 x 30

$

$

Not available
