EX 20-S (866057) - Briggs & Stratton Concrete Floor Walk-Behind Saw Main Unit (866057) Parts Diagram

Concrete Floor Walk-Behind Saw

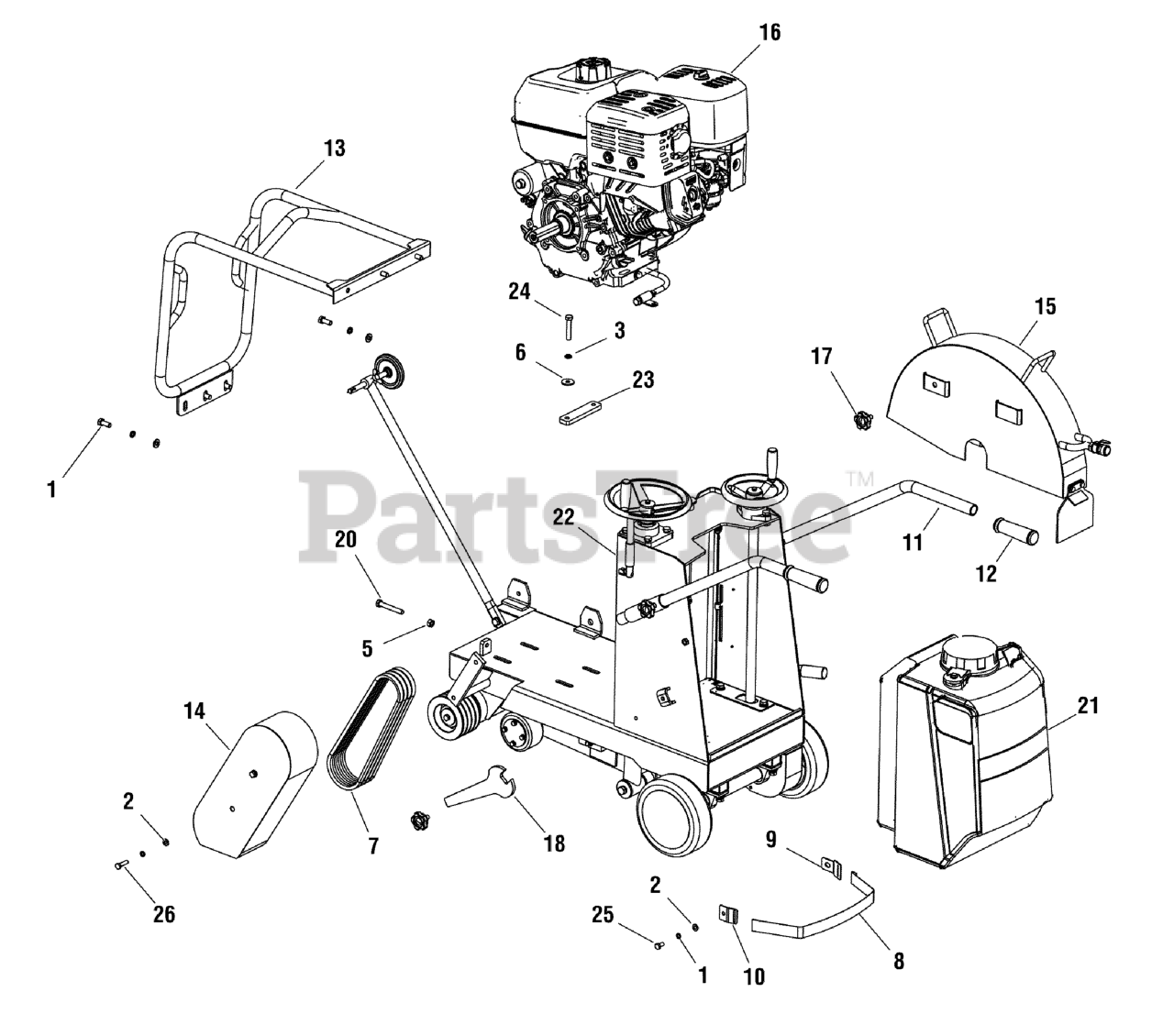

Main Unit (866057) Parts Diagram

  • Title

1

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

2

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

3

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

4

Murray 700605

WASHER, Flat, 10

$

$

Currently unavailable

5

Murray 700608

NUT, Hex, M10

$

$

Currently unavailable

6

Murray 702552

WASHER, Flat, Large

$

$

Currently unavailable

7

Murray 702588

V-BELT

$2.49

$

Usually ships in 3-10 days

0

8

Murray 702589

ELASTIC BANDAGE

$

$

Currently unavailable

9

Murray 702590

BANDAGE HOOK

$

$

Currently unavailable

10

Murray 702591

BANDAGE FIXED PLATE

$

$

Currently unavailable

11

Murray 702592

SHEATH, Handle

$5.99

$

Usually ships in 3-10 days

0

12

Murray 702593

HANDLE

$

$

Currently unavailable

13

Murray 702594

FRAME, Lifting

$

$

Currently unavailable

14

Murray 702595

COVER, Belt

$

$

Currently unavailable

15

Murray 702596

BLADE COVER ASSEMBLY

$3.49

$

Usually ships in 3-10 days

0

16

Murray 702597

ENGINE ASSEMBLY

$

$

Currently unavailable

17

Murray 702598

KNOB, Bolt, M10

$2.49

$

Usually ships in 3-10 days

0

18

Murray 702599

SPANNER

$2.49

$

Usually ships in 3-10 days

0

19

Murray 702600

BOLT, Hex, M10 x 25

$

$

Currently unavailable

20

Murray 702602

BOLT, Hex, M10 x 70

$

$

Currently unavailable

21

Murray 702603

WATER TANK ASSEMBLY

$

$

Not available

22

Murray 702604

FRAME ASSEMBLY, Water Tank

$

$

Currently unavailable

23

Murray 702605

ENGINE RETAINER PLATE

$

$

Currently unavailable

24

Murray 702707

BOLT, Hex, M10 x 55

$

$

Currently unavailable

25

Murray 702729

BOLT, Hex, M8 x 16

$

$

Not available

26

Murray 702730

BOLT, Hex, M8 x 30

$

$

Not available
