EX 20-S (866057) - Briggs & Stratton Concrete Floor Walk-Behind Saw Blade Shaft Group (80003304) Parts Diagram

Concrete Floor Walk-Behind Saw

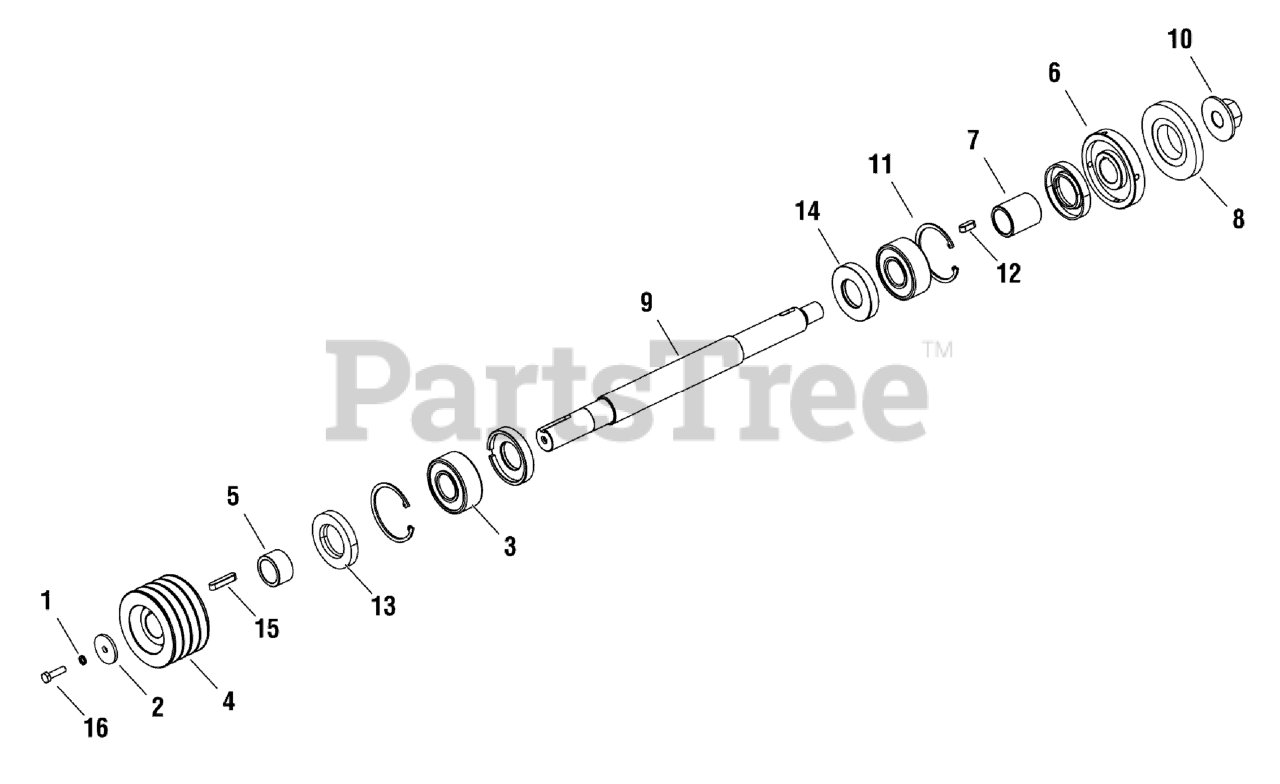

Blade Shaft Group (80003304) Parts Diagram

  • Title
1

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

2

Murray 702606

WASHER, Flat, 8

$

$

Currently unavailable

3

Murray 702694

BEARING

$

$

Currently unavailable

4

Murray 702695

PULLEY, Big

$

$

Currently unavailable

5

Murray 702696

BUSHING

$

$

Currently unavailable

6

Murray 702697

PLATE, Blade Mounting

$

$

Currently unavailable

7

Murray 702698

BUSHING

$

$

Currently unavailable

8

Murray 702699

PLATE, Blade Pressing

$

$

Currently unavailable

9

Murray 702700

SHAFT, Blade

$

$

Currently unavailable

10

Murray 702701

NUT, Hex, Left, M24

$

$

Currently unavailable

11

Murray 702702

CIRCLIP

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Murray 702705

OIL SEAL

$

$

Currently unavailable

14

Murray 702706

SEAL RING

$

$

Currently unavailable

15

Murray 702713

KEY, 10 x 45

$

$

Currently unavailable

16

Murray 702730

BOLT, Hex, M8 x 30

$

$

Not available
