EX 14-S (866055) - Briggs & Stratton Concrete Floor Walk-Behind Saw Water Tank Group (80003068) Parts Diagram

Concrete Floor Walk-Behind Saw

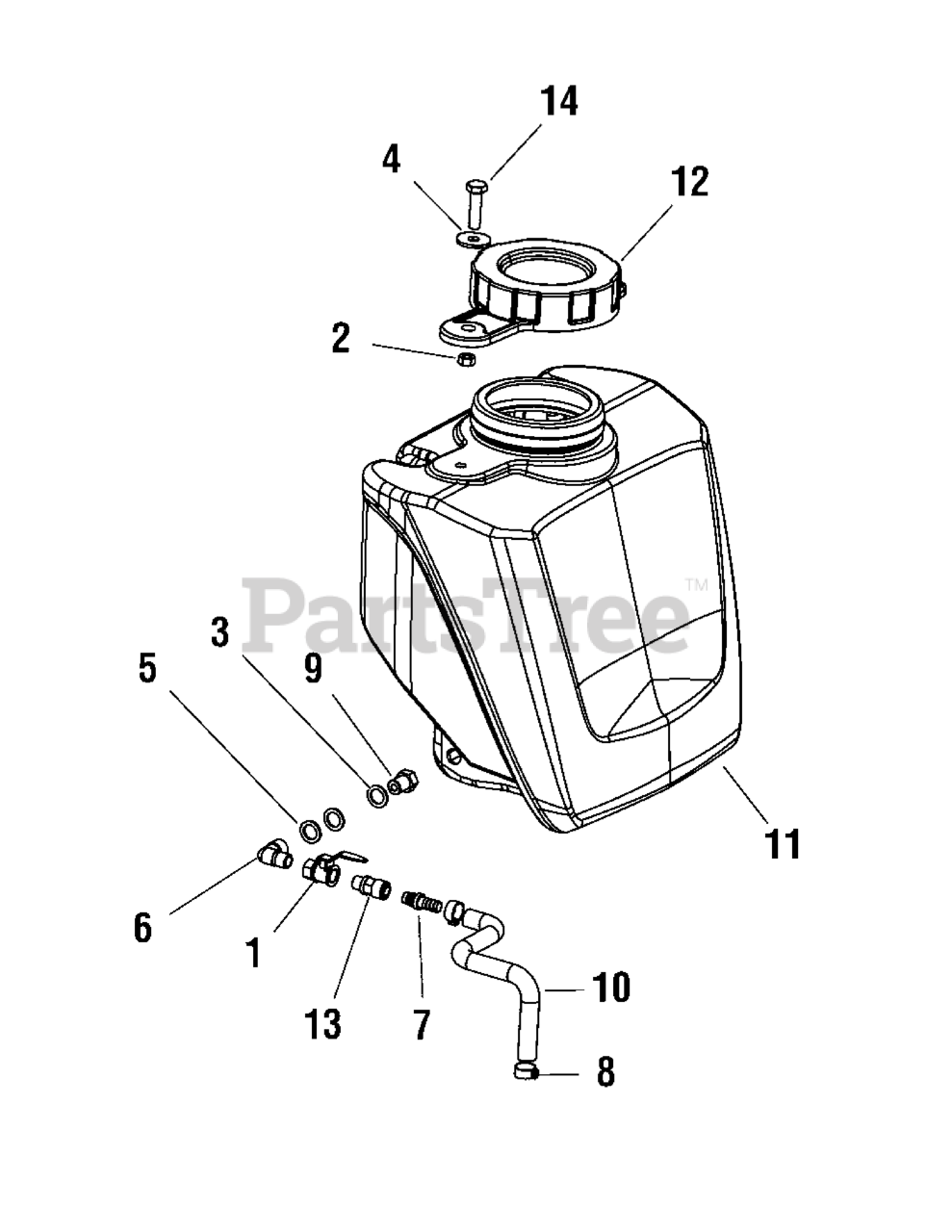

Water Tank Group (80003068) Parts Diagram

  • Title
1

Murray 700611

VALVE, Brass Ball

$

$

Not available

2

Murray 700637

NUT, Hex, M8

$

$

Not available

3

Murray 702551

WASHER, Asbestos

$2.49

$

Usually ships in 3-10 days

0

4

Murray 702552

WASHER, Flat, Large

$

$

Currently unavailable

5

Murray 702553

WASHER, Flat

$2.49

$

Usually ships in 3-10 days

0

6

Murray 702554

PIPE JOINT, L-Type

$

$

Currently unavailable

7

Murray 702555

QUICK CONNECTOR, Male Joint

$6.99

$

Usually ships in 3-10 days

0

8

Murray 702556

CLAMP, Spring

$

$

Not available

9

Murray 702557

PIPE JOINT, T-Type

$

$

Currently unavailable

10

Murray 702558

WATER HOSE

$

$

Currently unavailable

11

Murray 702559

WATER TANK

$

$

Not available

12

Murray 702560

COVER, Water Tank

$2.49

$

Usually ships in 3-10 days

0

13

Murray 702561

QUICK CONNECTOR, Female Joint

$

$

Currently unavailable

14

Murray 702732

BOLT, Hex, M10 x 35

$

$

Currently unavailable
