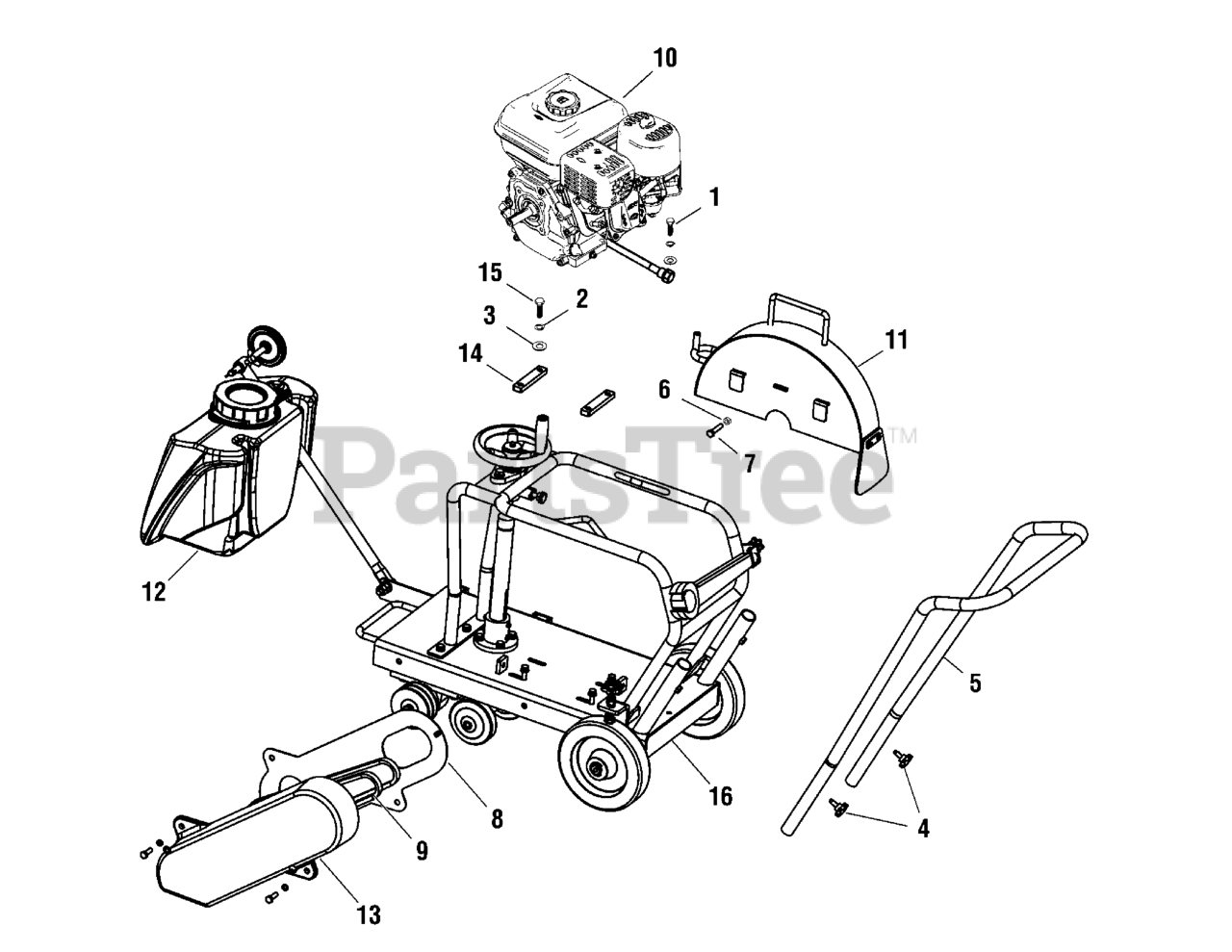

EX 14-S (866055) - Briggs & Stratton Concrete Floor Walk-Behind Saw Main Unit (866055) Parts Diagram

Concrete Floor Walk-Behind Saw

Main Unit (866055) Parts Diagram

  • Title
1

Murray 700597

BOLT, Hex, M8 x 25

$

$

Not available

2

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

3

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

4

Murray 700616

KNOB, Bolt, M10

$

$

Not available

5

Murray 700621

BOLT, Hex, M8 x 40

$

$

Currently unavailable

6

Murray 700631

HANDLE

$

$

Currently unavailable

7

Murray 700637

NUT, Hex, M8

$

$

Not available

8

Murray 700660

COVER, Belt, Inner

$

$

Currently unavailable

9

Murray 700662

BELT, XPA882

$

$

Currently unavailable

10

Murray 702521

ENGINE ASSEMBLY

$

$

Currently unavailable

11

Murray 702522

BLADE COVER ASSEMBLY

$

$

Currently unavailable

12

Murray 702525

WATER TANK ASSEMBLY

$

$

Currently unavailable

13

Murray 702526

COVER, Belt, Outer

$2.49

$

Usually ships in 3-10 days

0

14

Murray 702527

PLATE, Engine Locking

$

$

Not available

15

Murray 702743

BOLT, Hex, M8 x 50

$6.99

$

Usually ships in 3-10 days

0

16

Murray 702745

WATER TANK FRAME ASSEMBLY

$5.99

$

Usually ships in 3-10 days

0
