EX 135 WT-C (866052) - Briggs & Stratton Plate Compactor Water Tank Group Parts Diagram

Plate Compactor

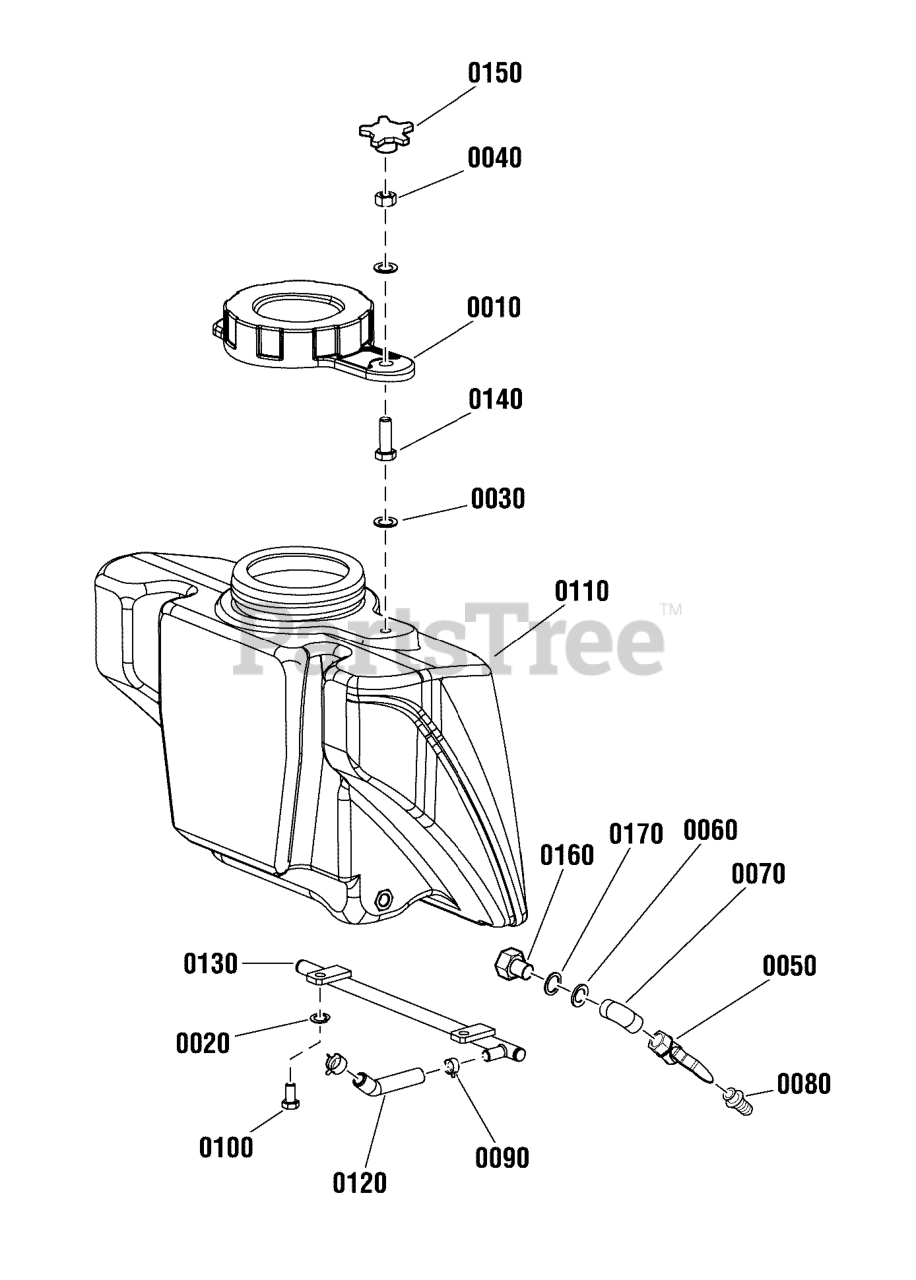

Water Tank Group Parts Diagram

  • Title
0010

Murray 700592

COVER, Water Tank

$

$

Currently unavailable

0020

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

0030

Murray 700605

WASHER, Flat, D10

$

$

Currently unavailable

0040

Murray 700608

NUT, Hex, M10

$

$

Currently unavailable

0050

Murray 700611

BRASS BALL VALVE, PT 1/4

$

$

Not available

0060

Murray 702553

WASHER, Flat, D13

$2.49

$

Usually ships in 3-10 days

0

0070

Murray 702554

PIPE JOINT, L-Type

$

$

Currently unavailable

0080

Murray 702555

JOINT, Connector

$6.99

$

Usually ships in 3-10 days

0

0090

$

$

Not available

0100

Murray 702729

BOLT, Hex, M8 x 16

$

$

Not available

0110

Murray 702805

WATER TANK

$

$

Currently unavailable

0120

Murray 702985

WATER PIPE, Rubber

$

$

Currently unavailable

0130

Murray 702986

DRAIN HOSE, Water

$

$

Currently unavailable

0140

Murray 703239

BOLT, Hex, M10 x 45

$

$

Currently unavailable

0150

Murray 703240

NUT, Knob, M10

$

$

Currently unavailable

0160

Murray 703241

PIPE JOINT, T-Type

$

$

Currently unavailable

0170

Murray 703242

O-RING

$

$

Currently unavailable
