EX 135 WT-C (866052) - Briggs & Stratton Plate Compactor Tank Guard Group Parts Diagram

Plate Compactor

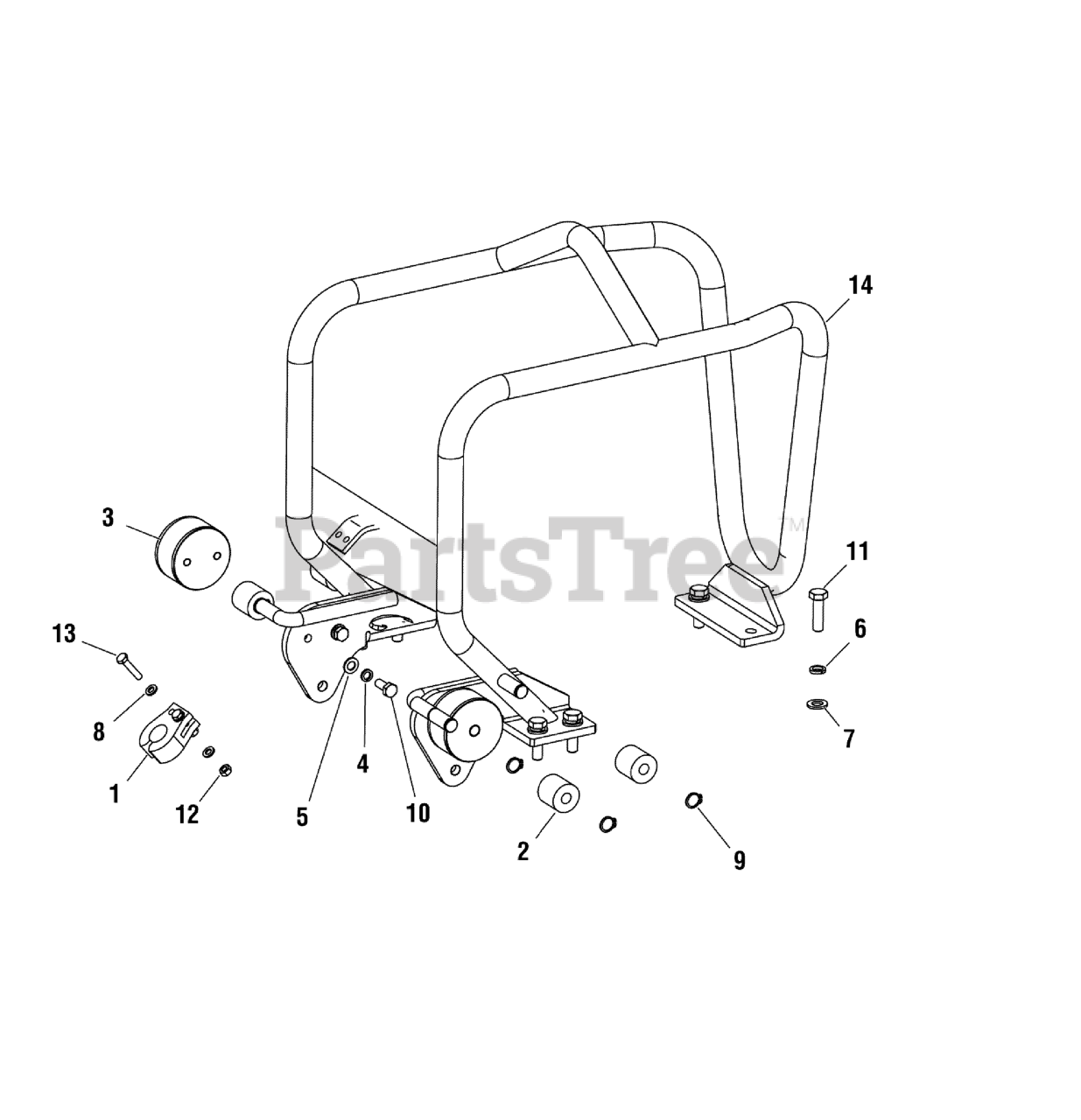

Tank Guard Group Parts Diagram

  • Title
1

Murray 700553

CLIP, Rubber

$

$

Currently unavailable

2

Murray 700555

COLLAR, Rubber

$

$

Currently unavailable

3

Murray 700559

VIBRATION MOUNT, Rubber

$

$

Not available

4

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

5

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

6

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

7

Murray 700605

WASHER, Flat, 10

$

$

Currently unavailable

8

Murray 700667

WASHER, Flat, 6

$

$

Currently unavailable

9

Murray 701500

CIRCLIP

$

$

Currently unavailable

10

Murray 701541

BOLT, Hex, M8 x 20

$

$

Currently unavailable

11

Murray 702732

BOLT, Hex, M10 x 35

$

$

Currently unavailable

12

Murray 702807

NUT, Hex, M6

$

$

Currently unavailable

13

Murray 702808

BOLT, Hex, M6 x 30

$

$

Not available

14

Murray 702987

GUARD HOOK

$

$

Currently unavailable
