EX 135 WT-C (866052) - Briggs & Stratton Plate Compactor Eccentric Box Group (80000180) Parts Diagram

Plate Compactor

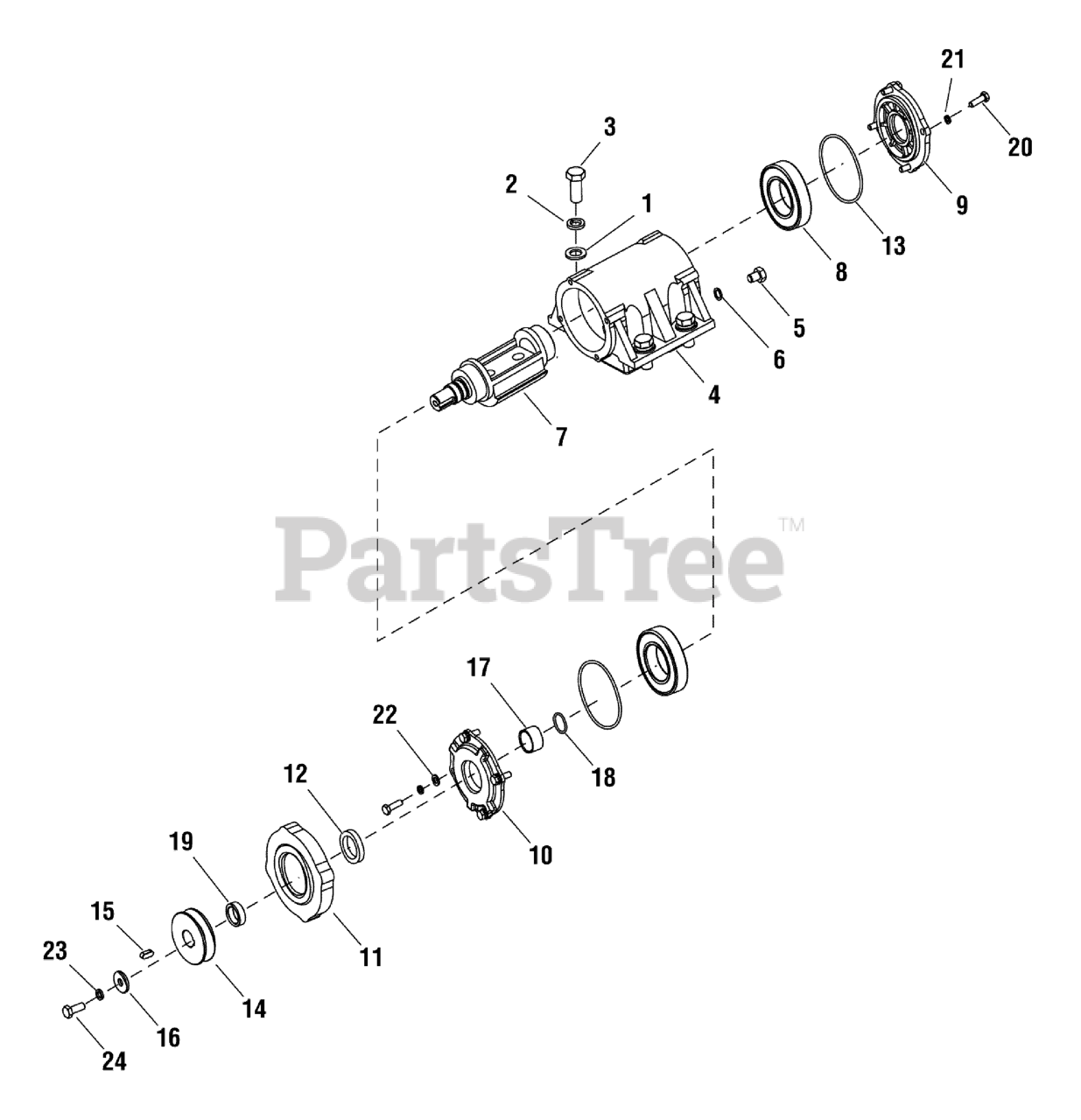

Eccentric Box Group (80000180) Parts Diagram

  • Title
1

Murray 700534

WASHER, Flat

$

$

Currently unavailable

2

Murray 700535

WASHER, Spring

$

$

Currently unavailable

3

Murray 700536

BOLT, Hex, M16 x 40

$

$

Not available

4

Murray 700568

VIBRATION BOX

$

$

Currently unavailable

5

Murray 700569

SCREW, Plug

$

$

Not available

6

Murray 700570

PACKING PIECE

$

$

Currently unavailable

7

Murray 700571

ECCENTRIC ROTATOR ASSEMBLY

$

$

Currently unavailable

8

Murray 700572

BEARING

$

$

Currently unavailable

9

Murray 700573

COVER, Case, RH

$

$

Not available

10

Murray 700574

COVER, Case, LH

$

$

Currently unavailable

11

Murray 700575

PROTECTIVE COVER

$

$

Currently unavailable

12

Murray 700576

OIL SEAL 35 x 8

$

$

Currently unavailable

13

Murray 700577

O-RING

$

$

Currently unavailable

14

Murray 700579

PULLEY

$

$

Currently unavailable

15

Murray 700580

KEY 8 x 20

$

$

Currently unavailable

16

Murray 700581

WASHER, Pulley

$

$

Currently unavailable

17

Murray 700582

BEARING

$

$

Currently unavailable

18

Murray 700583

O-RING

$14.99

$

Usually ships in 3-10 days

0

19

Murray 700584

BUSHING, Shaft

$

$

Currently unavailable

20

Murray 700597

BOLT, Hex, M8 x 25

$

$

Not available

21

Murray 700598

WASHER, Spring, 8

$

$

Currently unavailable

22

Murray 700599

WASHER, Flat, 8

$

$

Currently unavailable

23

Murray 700604

WASHER, Spring, 10

$

$

Currently unavailable

24

Murray 702600

BOLT, Hex, M10 x 25

$

$

Currently unavailable
