EW171 K1 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1100001 - EB1-1119999) REAR HOUSING Parts Diagram

Generator, Made in Japan

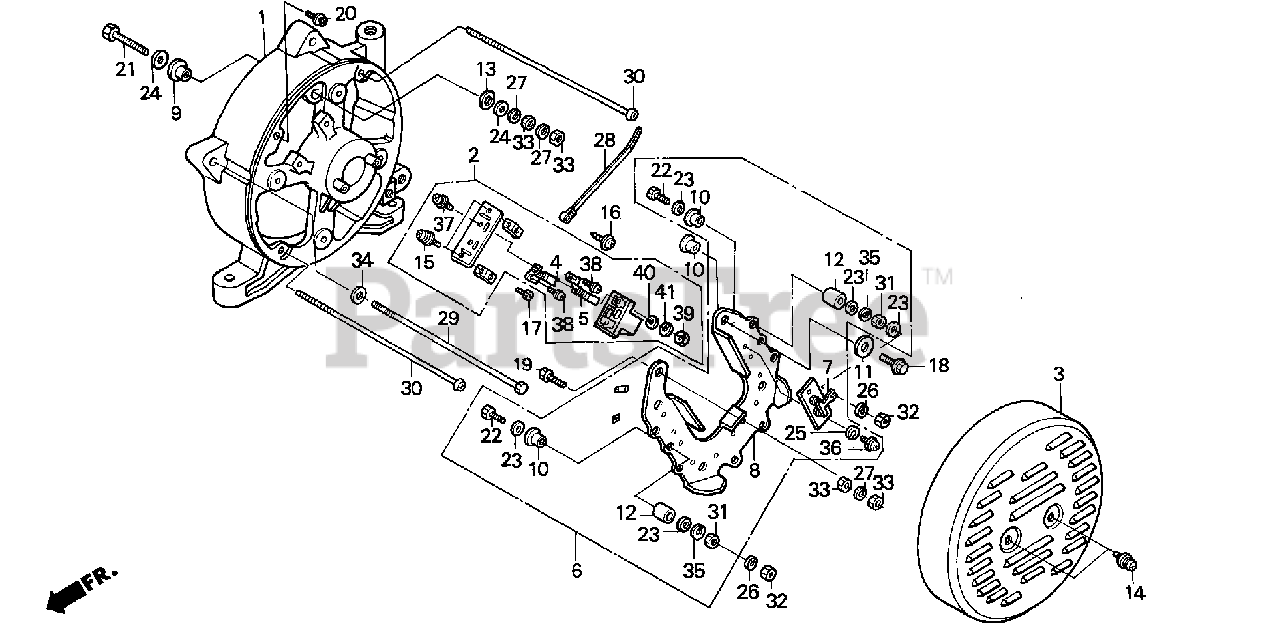

REAR HOUSING Parts Diagram

  • Title

1

Honda 31108-ZB4-831

HOUSING, RR. (311A0-ZB4-831)

$302.99

$

Usually ships in 3-6 days

0

2

Honda 31106-ZB4-811

HOLDER ASSY., BRUSH

$120.99

$

Usually ships in 3-6 days

0

3

Honda 31113-ZB4-811

SEE PART DETAILS - PRI; COVER, GENERATOR END

$114.99

$

Usually ships in 3-6 days

0

4

Honda 31122-ZB4-811

BRUSH (A)

$36.99

$

Usually ships in 3-6 days

0

5

Honda 31128-ZB4-811

BRUSH (B)

$36.99

$

Usually ships in 3-6 days

0

6

Honda 31135-ZB4-811

DIODE ASSY.

$1565.99

$

Usually ships in 3-6 days

0

7

Honda 31136-ZA1-811

DIODE

$

$

Not available

8

Honda 31137-ZB4-811

PLATE, HEAT SINK

$156.99

$

Usually ships in 3-6 days

0

9

Honda 31706-ZA1-812

BUSH, INSULATING (6MM)

$9.99

$

Usually ships in 3-6 days

0

10

Honda 31706-ZA1-831

BUSH, INSULATING (5MM)

$9.99

$

Usually ships in 3-6 days

0

11

Honda 31707-ZA1-811

WASHER, INSULATING

$4.99

$

Usually ships in 3-6 days

0

12

Honda 31707-ZA1-831

INSULATOR (5MM)

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31707-ZA1-871

WASHER, INSULATING

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90031-ZB4-811

SCREW, TAPPING (5X8)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90032-ZB4-811

SCREW, TAPPING (4X10)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90033-875-003

SCREW, TAPPING (5X16)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90102-ZB4-811

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90102-899-003

SCREW, PAN (5X12)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90103-ZA1-811

BOLT, HEX. (6X30)

$5.49

$

Usually ships in 3-6 days

0

22

Honda 92101-05035-1H

BOLT, HEX. (5X35)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

24

Honda 90502-ZA1-811

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90503-ZA1-811

WASHER, SPRING (4MM)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90504-ZA1-811

WASHER, SPRING (5MM)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90505-ZA1-811

WASHER, SPRING (6MM)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90673-ZB4-003

TIE, CABLE

$5.99

$

Usually ships in 3-6 days

0

29

Honda 90157-ZD1-E31

BOLT, FLANGE (6X175)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 90091-ZC2-811

BOLT, HEX. (5X215)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 94002-05080-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 94002-06390-0S

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93891-04016-08

SCREW-WASHER (4X16)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93892-04006-08

SCREW-WASHER (4X6)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0
