EW171 K1 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1100001 - EB1-1119999) EW171K1 CONTROL BOX (FROM EB1-1115969) Parts Diagram

Generator, Made in Japan

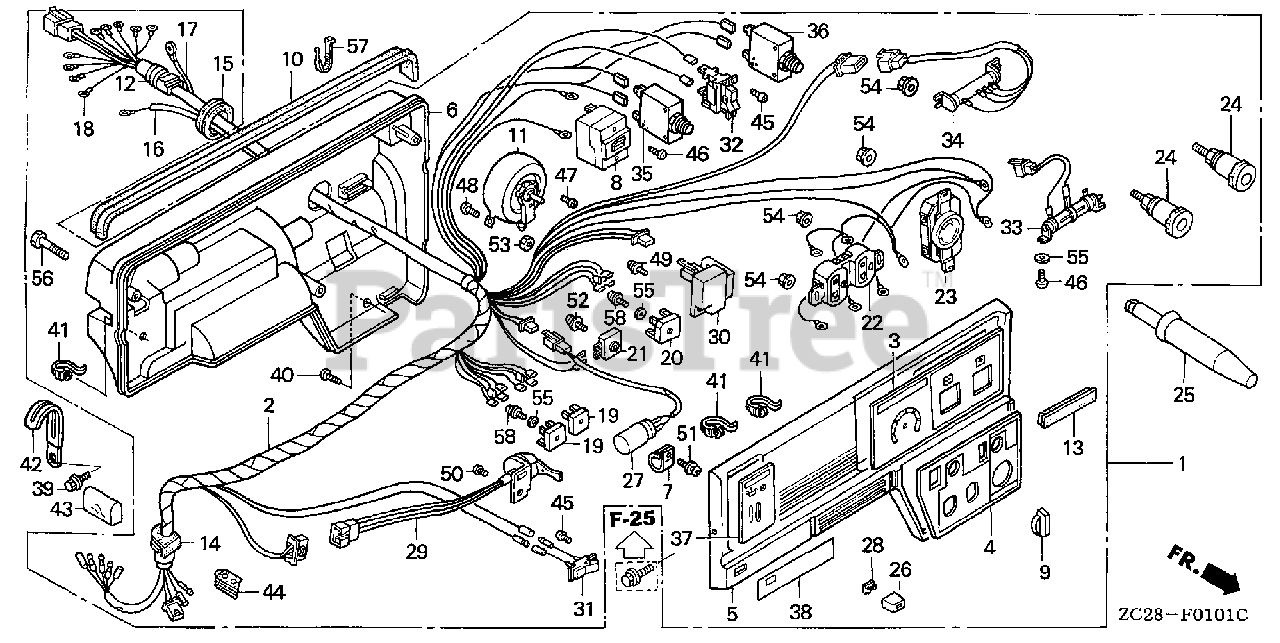

EW171K1 CONTROL BOX (FROM EB1-1115969) Parts Diagram

  • Title

1

Honda 31400-ZC2-J34ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1115969.

$

$

Currently unavailable

2

Honda 31404-ZC2-J33

WIRE HARNESS ASSY. (EW-A)

Note: Use from Frame SN 1115969.

$

$

Not available

3

Honda 31407-ZC2-J31

MARK, CURRENT CONTROL

Note: Use from Frame SN 1115969.

$

$

Not available

4

Honda 31408-ZC2-J40

MARK, A.C. OUT (EW-A)

Note: Use from Frame SN 1115969.

$

$

Not available

5

Honda 31421-ZC2-833ZA

SEE PART DETAILS - SUP; PANEL, CONTROL *R8* (EW-A) (BRIGHT RED)

Note: Use from Frame SN 1115969.

$

$

Currently unavailable

5

Honda 31421-ZC2-833ZB

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (EW-A) (POWER RED)

Note: Use from Frame SN 1115969.

$

$

Not available

6

Honda 31425-ZB4-010ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)
(Superseded to 31425-ZB4-010ZD)

Note: Use from Frame SN 1115969.

$

$

Not available

6

Honda 31425-ZB4-010ZD

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

Note: Use from Frame SN 1115969.

$

$

Not available

7

Honda 31427-ZB4-811

HOLDER, CONDENSER

Note: Use from Frame SN 1115969.

$6.49

$

Usually ships in 3-6 days

0

8

Honda 31430-ZB4-610

BREAKER, CIRCUIT (33.5A)

Note: Use from Frame SN 1115969.

$261.99

$

Usually ships in 3-6 days

0

9

Honda 31461-ZA1-811

KNOB, ADJUSTING

Note: Use from Frame SN 1115969.

$22.99

$

Usually ships in 3-6 days

0

10

Honda 31462-ZB4-000

RUBBER, CONTROL

Note: Use from Frame SN 1115969.

$20.99

$

In Stock, only 1 left!

0

11

Honda 31466-ZB4-811

RESISTOR, VARIABLE

Note: Use from Frame SN 1115969.

$265.99

$

Usually ships in 3-6 days

0

12

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

Note: Use from Frame SN 1115969.

$14.99

$

Usually ships in 3-6 days

0

13

Honda 31482-ZB4-811

GROMMET, COVER

Note: Use from Frame SN 1115969.

$

$

Not available

14

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

Note: Use from Frame SN 1115969.

$12.99

$

Usually ships in 3-6 days

0

15

Honda 31484-ZB4-811

GROMMET, MAIN WIRE

Note: Use from Frame SN 1115969.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 31596-ZC2-831

WIRE A, WELDER TERMINAL (L=930MM 8X6) (+)

Note: Use from Frame SN 1115969.

$

$

Not available

17

Honda 31597-ZC2-811

WIRE B, WELDER TERMINAL (L=700MM 6X6) (+)

Note: Use from Frame SN 1115969.

$89.99

$

Usually ships in 3-6 days

0

18

Honda 31598-ZC2-831

WIRE C, WELDER TERMINAL (L=520MM 8X6) (-)

Note: Use from Frame SN 1115969.

$

$

Not available

19

Honda 31710-ZA0-003

STACK, DIODE

Note: Use from Frame SN 1115969.

$70.99

$

Usually ships in 3-6 days

0

20

Honda 31710-ZA1-811

DIODE

Note: Use from Frame SN 1115969.

$88.99

$

Usually ships in 3-6 days

0

21

Honda 31710-ZB4-811

STACK, DIODE

Note: Use from Frame SN 1115969.

$75.99

$

Usually ships in 3-6 days

0

22

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

Note: Use from Frame SN 1115969.

$50.99

$

In Stock, only 1 left!

0

23

Honda 32332-Z04-C31

RECEPTACLE (30A/125V)

Note: Use from Frame SN 1115969.

$56.99

$

Usually ships in 3-6 days

0

24

Honda 32335-ZA1-830

RECEPTACLE, PANEL

Note: Use from Frame SN 1115969.

$134.99

$

In Stock, only 2 left!

0

25

Honda 32336-ZA1-831

CONNECTOR, MALE

Note: Use from Frame SN 1115969.

$85.99

$

Usually ships in 3-6 days

0

26

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, VALVE LEVER

Note: Use from Frame SN 1115969.

$13.99

$

Usually ships in 3-6 days

0

27

Honda 32380-ZB4-811

CAPACITOR ASSY.

Note: Use from Frame SN 1115969.

$

$

Not available

28

Honda 36106-892-003

BUSH, CONTROL KNOB

Note: Use from Frame SN 1115969.

$6.49

$

Usually ships in 3-6 days

0

29

Honda 36110-ZB4-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36110-ZB4-702)

Note: Use from Frame SN 1115969.

$33.99

$

Usually ships in 3-6 days

0

30

Honda 36210-ZB4-811

THROTTLE UNIT ASSY., AUTO

Note: Use from Frame SN 1115969.

$271.99

$

Usually ships in 3-6 days

0

31

Honda 36214-ZB4-003

SEE PART DETAILS - SUP; SWITCH ASSY., AUTO THROTTLE
(Superseded to 36214-ZB4-013)

Note: Use from Frame SN 1115969.

$

$

Not available

32

Honda 36222-ZB4-811

SWITCH ASSY.

Note: Use from Frame SN 1115969.

$100.99

$

Usually ships in 3-6 days

0

33

Honda 37503-ZB4-811

RESISTOR, ADJUSTABLE

Note: Use from Frame SN 1115969.

$

$

Not available

34

Honda 37505-ZB4-811

RESISTOR

Note: Use from Frame SN 1115969.

$193.99

$

Usually ships in 3-6 days

0

35

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

Note: Use from Frame SN 1115969.

$77.99

$

Usually ships in 3-6 days

0

36

Honda 38241-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (30A)
(Superseded to 38241-ZC6-E31)

Note: Use from Frame SN 1115969.

$77.99

$

Usually ships in 3-6 days

0

37

Honda 87501-ZB4-E32

MARK, ENGINE SWITCH

Note: Use from Frame SN 1115969.

$13.99

$

Usually ships in 3-6 days

0

38

Honda 87524-ZB4-E31

MARK, AUTO-THROTTLE

Note: Use from Frame SN 1115969.

$8.49

$

Usually ships in 3-6 days

0

39

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Frame SN 1115969.

$1.99

$

In Stock, Qty 20+

0

40

Honda 90101-692-000

SCREW, GLOVE BOX

Note: Use from Frame SN 1115969.

$1.99

$

Usually ships in 3-6 days

0

41

Honda 90672-ZB4-003

TIE, CABLE

Note: Use from Frame SN 1115969.

$5.99

$

Usually ships in 3-6 days

0

42

Honda 91406-671-000

CLIP, WIRE HARNESS

Note: Use from Frame SN 1115969.

$21.99

$

Usually ships in 3-6 days

0

43

Honda 91406-ZB3-740

TUBE, WIRE

Note: Use from Frame SN 1115969.

$4.99

$

Usually ships in 3-6 days

0

44

Honda 91601-ZB4-003

GROMMET, TUBE

Note: Use from Frame SN 1115969.

$3.99

$

Usually ships in 3-6 days

0

45

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Frame SN 1115969.

$1.49

$

In Stock, Qty 5

0

46

Honda 93500-04006-0H

SCREW, PAN (4X6)

Note: Use from Frame SN 1115969.

$1.49

$

In Stock, Qty 8

0

47

Honda 93500-04008-0H

SCREW, PAN (4X8)

Note: Use from Frame SN 1115969.

$1.49

$

Usually ships in 3-6 days

0

48

Honda 93500-04010-3C

SCREW, PAN (4X10)

Note: Use from Frame SN 1115969.

$1.99

$

Usually ships in 3-6 days

0

49

Honda 93892-05012-08

SCREW-WASHER (5X12)

Note: Use from Frame SN 1115969.

$1.49

$

In Stock, only 3 left!

0

50

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

Note: Use from Frame SN 1115969.

$1.99

$

In Stock, Qty 6

0

50

Honda 93893-04010-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X10)

Note: Use from Frame SN 1115969.

$

$

Currently unavailable

51

Honda 93893-05014-08

SCREW-WASHER (5X14)

Note: Use from Frame SN 1115969.

$1.99

$

Usually ships in 3-6 days

0

52

Honda 93893-05020-18

SCREW-WASHER (5X20)

Note: Use from Frame SN 1115969.

$1.49

$

Usually ships in 3-6 days

0

53

Honda 94002-04330-0S

NUT, HEX. (4MM)

Note: Use from Frame SN 1115969.

$0.99

$

Usually ships in 3-6 days

0

54

Honda 94050-04080

NUT, FLANGE (4MM)

Note: Use from Frame SN 1115969.

$1.99

$

In Stock, Qty 8

0

55

Honda 94101-04800

WASHER, PLAIN (4MM)

Note: Use from Frame SN 1115969.

$1.49

$

Usually ships in 3-6 days

0

56

Honda 95701-06040-08

BOLT, FLANGE (6X40)

Note: Use from Frame SN 1115969.

$2.49

$

Usually ships in 3-6 days

0

57

Honda 90672-ZB4-811

TIE, CABLE

Note: Use from Frame SN 1115969.

$4.49

$

Usually ships in 3-6 days

0

58

Honda 93892-04020-08

SCREW-WASHER (4X20)

Note: Use from Frame SN 1115969.

$

$

Not available
