EW171 AR (EB1) - Honda Generator, Made in Japan (SN: EB1-1000001 - EB1-1099999) FUEL TANK Parts Diagram

Generator, Made in Japan

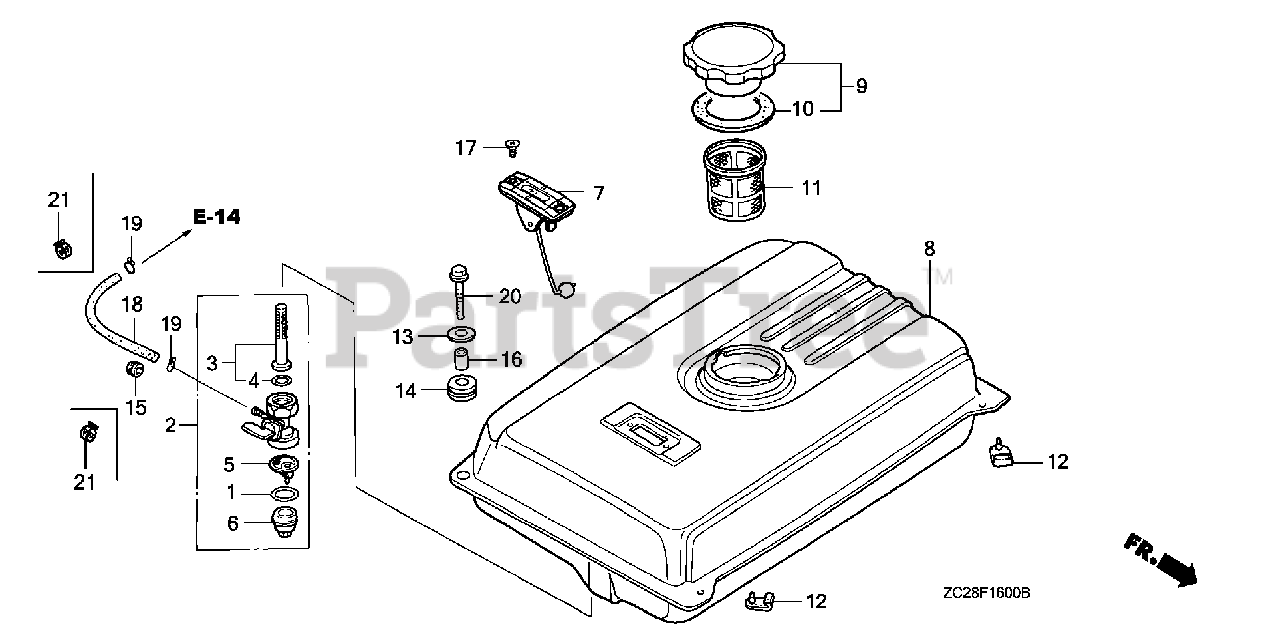

FUEL TANK Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

2

Honda 16950-ZB4-005

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZB4-015)

Note: Use up to Frame SN 1003726.

$103.99

$

In Stock, only 3 left!

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$103.99

$

In Stock, only 3 left!

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$46.99

$

Usually ships in 3-6 days

0

4

Honda 16958-397-771

O-RING (9X1.3)

$7.99

$

In Stock, only 4 left!

0

5

Honda 16959-471-831

FILTER, CUP

$12.99

$

In Stock, Qty 8

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$31.99

$

Usually ships in 3-6 days

0

7

Honda 17505-ZB2-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

$27.99

$

In Stock, only 1 left!

0

8

Honda 17510-ZC2-000ZJ

SEE PART DETAILS - PRI; TANK, FUEL *R280* (POWER RED)

$288.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL TANK
(Superseded to 17620-899-023)

$42.99

$

Usually ships in 3-6 days

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.49

$

In Stock, only 2 left!

0

11

Honda 17672-899-000

FILTER, FUEL

$18.99

$

In Stock, only 3 left!

0

12

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90503-898-000

WASHER, TANK RUBBER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90851-898-000

CUSHION, TANK RUBBER

$5.99

$

In Stock, only 1 left!

0

15

Honda 90854-ZB2-000

RUBBER, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

16

Honda 91551-898-000

COLLAR, TANK RUBBER

$5.99

$

Usually ships in 3-6 days

0

17

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 10

0

18

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X150)

$54.99

$

In Stock, only 1 left!

0

19

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

Note: Use from Frame SN 1001975.

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

Note: Use up to Frame SN 1001974.

$2.49

$

In Stock, Qty 8

0
