EW171 AR (EB1) - Honda Generator, Made in Japan (SN: EB1-1000001 - EB1-1099999) EW171/K1CONTROL BOX (TO EB1-1115968) Parts Diagram

Generator, Made in Japan

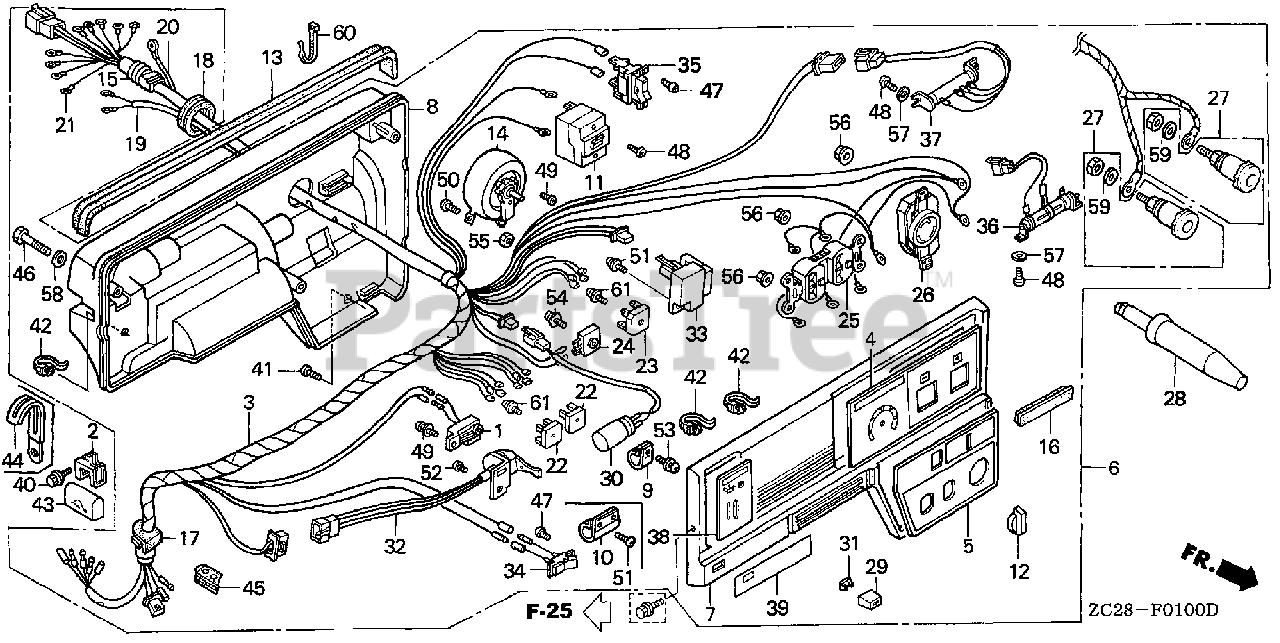

EW171/K1CONTROL BOX (TO EB1-1115968) Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL

Note: Use from Frame SN 1003255.

$

$

Not available

1

Honda 15520-ZC2-003

ALERT UNIT, OIL

Note: Use up to Frame SN 1003254.

$

$

Not available

2

Honda 30561-ZB4-000

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

3

Honda 31405-ZC2-831

WIRE HARNESS ASSY.

Note: Use up to Frame SN 1003254.

$

$

Not available

3

Honda 31405-ZC2-832

WIRE HARNESS ASSY.

Note: Use from Frame SN 1003255.

$

$

Not available

4

Honda 31407-ZC2-830

MARK, CURRENT CONTROL

$

$

Currently unavailable

5

Honda 31409-ZC2-831

MARK, A.C. OUT (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31410-ZC2-831ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1003254.

$

$

Not available

6

Honda 31410-ZC2-832ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1003255.

$

$

Not available

7

Honda 31421-ZC2-832ZA

SEE PART DETAILS - SUP; PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Currently unavailable

8

Honda 31425-ZB4-010ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)
(Superseded to 31425-ZB4-010ZD)

$

$

Not available

8

Honda 31425-ZB4-010ZD

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$

$

Not available

9

Honda 31427-ZB4-811

HOLDER, CONDENSER

$6.99

$

Usually ships in 3-6 days

0

11

Honda 31430-ZB4-610

BREAKER, CIRCUIT (33.5A)

$298.99

$

Usually ships in 3-6 days

0

12

Honda 31461-ZA1-811

KNOB, ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

13

Honda 31462-ZB4-000

RUBBER, CONTROL

$22.99

$

In Stock, only 1 left!

0

14

Honda 31466-ZB4-811

RESISTOR, VARIABLE

$303.99

$

Usually ships in 3-6 days

0

16

Honda 31482-ZB4-811

GROMMET, COVER

$

$

Not available

17

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

$13.99

$

Usually ships in 3-6 days

0

18

Honda 31484-ZB4-811

GROMMET, MAIN WIRE

$13.99

$

Usually ships in 3-6 days

0

19

Honda 31596-ZC2-831

WIRE A, WELDER TERMINAL (L=930MM 8X6) (+)

$

$

Not available

20

Honda 31597-ZC2-811

WIRE B, WELDER TERMINAL (L=700MM 6X6) (+)

$97.99

$

Usually ships in 3-6 days

0

21

Honda 31598-ZC2-831

WIRE C, WELDER TERMINAL (L=520MM 8X6) (-)

$

$

Not available

22

Honda 31710-ZA0-003

STACK, DIODE

$80.99

$

Usually ships in 3-6 days

0

23

Honda 31710-ZA1-811

DIODE

$101.99

$

Usually ships in 3-6 days

0

24

Honda 31710-ZB4-811

STACK, DIODE

$85.99

$

Usually ships in 3-6 days

0

25

Honda 32330-ZA1-631

RECEPTACLE (20A-125V)
(Superseded to 32330-Z03-C31)

$55.99

$

In Stock, only 1 left!

0

26

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

27

Honda 32335-ZA1-830

RECEPTACLE, PANEL

$145.99

$

In Stock, only 2 left!

0

28

Honda 32336-ZA1-831

CONNECTOR, MALE

$92.99

$

Usually ships in 3-6 days

0

29

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, VALVE LEVER

$14.99

$

Usually ships in 3-6 days

0

30

Honda 32380-ZB4-811

CAPACITOR ASSY.

$

$

Not available

31

Honda 36106-892-003

BUSH, CONTROL KNOB

$7.49

$

Usually ships in 3-6 days

0

32

Honda 36110-ZB4-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36110-ZB4-702)

$36.99

$

Usually ships in 3-6 days

0

33

Honda 36210-ZB4-811

THROTTLE UNIT ASSY., AUTO

$309.99

$

Usually ships in 3-6 days

0

34

Honda 36214-ZB4-003

SEE PART DETAILS - SUP; SWITCH ASSY., AUTO THROTTLE
(Superseded to 36214-ZB4-013)

$

$

Not available

35

Honda 36222-ZB4-811

SWITCH ASSY.

$114.99

$

Usually ships in 3-6 days

0

36

Honda 37503-ZB4-811

RESISTOR, ADJUSTABLE

$

$

Not available

37

Honda 37505-ZB4-811

RESISTOR

$220.99

$

Usually ships in 3-6 days

0

38

Honda 87501-ZB4-E31

MARK, ENGINE SWITCH

$9.49

$

Usually ships in 0 days

0

39

Honda 87524-ZB4-830

MARK, AUTO-THROTTLE (EB-A)

$

$

Not available

41

Honda 90101-692-000

SCREW, GLOVE BOX

$1.99

$

Usually ships in 3-6 days

0

42

Honda 90672-ZB4-811

TIE, CABLE

$4.99

$

Usually ships in 3-6 days

0

43

Honda 91406-ZB4-000

TUBE, WIRE

$12.99

$

Usually ships in 3-6 days

0

45

Honda 91601-ZB4-003

GROMMET, TUBE

$4.49

$

Usually ships in 3-6 days

0

46

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.99

$

Usually ships in 3-6 days

0

47

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

48

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

49

Honda 93500-04008-0H

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 93500-04010-3C

SCREW, PAN (4X10)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 11

0

52

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

52

Honda 93893-04010-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X10)

$

$

Currently unavailable

53

Honda 93893-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

54

Honda 93893-05020-18

SCREW-WASHER (5X20)

$1.99

$

Usually ships in 3-6 days

0

55

Honda 94002-04330-0S

NUT, HEX. (4MM)

$0.99

$

Usually ships in 3-6 days

0

56

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

57

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

58

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

59

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.99

$

In Stock, only 3 left!

0

61

Honda 93892-04020-08

SCREW-WASHER (4X20)

$

$

Not available
