EW171 AR (EB1) - Honda Generator, Made in Japan (SN: EB1-1000001 - EB1-1099999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

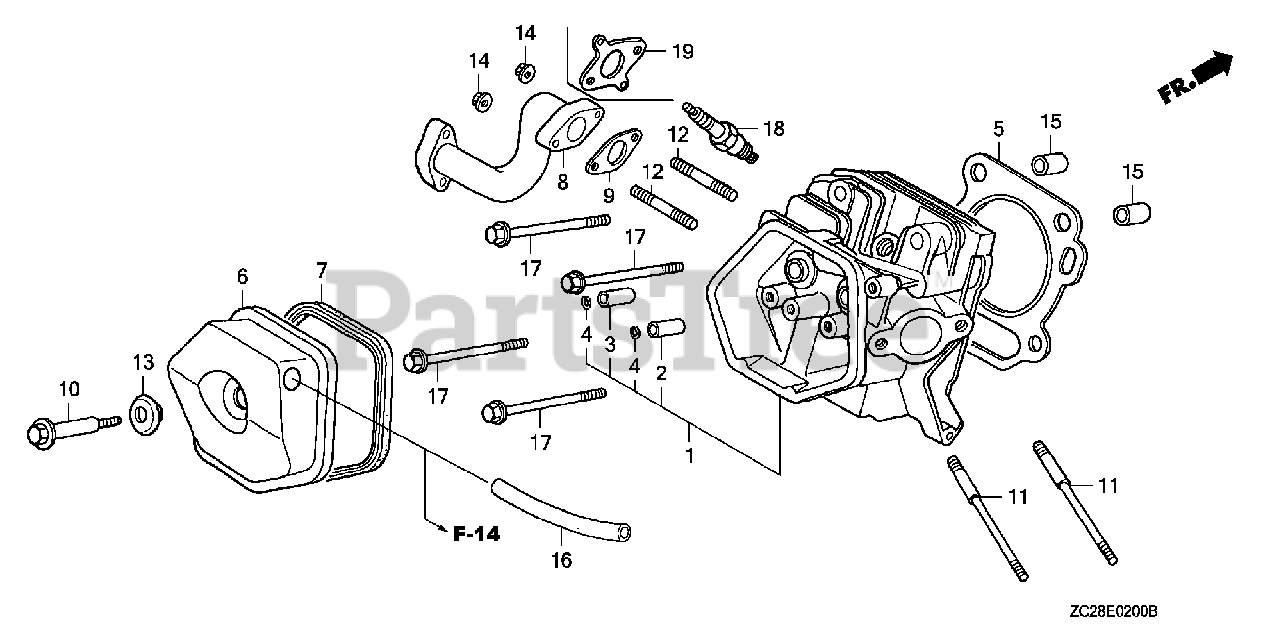

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE3-010

CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE3-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE3-W01)

$19.99

$

In Stock, only 1 left!

0

5

Honda 12251-ZE3-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE3-W00)

$19.99

$

In Stock, only 1 left!

0

6

Honda 04108-ZE2-000

SEE PART DETAILS - PRI; COVER KIT, HEAD

$

$

Not available

7

Honda 12391-ZE2-000

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD COVER
(Superseded to 12391-ZE2-020)

$11.99

$

In Stock, Qty 9

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

$11.99

$

In Stock, Qty 9

0

8

Honda 18330-ZE3-710

PIPE, EX.

$76.99

$

Usually ships in 3-6 days

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

$4.99

$

In Stock, Qty 20+

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

11

Honda 90042-ZE3-700

BOLT, STUD (8X106)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32)

$2.99

$

In Stock, only 1 left!

0

13

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 6

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94301-12200

PIN A, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X105)

$38.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

18

Honda 98079-55145

SPARK PLUG (BPR5ES-11) (NGK) Use up to Engine SN 1253117.

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-55155

SPARK PLUG (W16EPR-U11) Use up to Engine SN 1253117.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

Note: Use from Engine SN 1253118.

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

Note: Use from Engine SN 1253118.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 98079-56145

SPARK PLUG (BPR6ES-11) (NGK)

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-56155

SEE PART DETAILS - PRI; SPARK PLUG (W20EPR-U11) (DENSO)

$3.99

$

Usually ships in 3-6 days

0
