EW171 A (EB1) - Honda Generator, Made in Japan (SN: EB1-1000001 - EB1-1099999) REACTOR Parts Diagram

Generator, Made in Japan

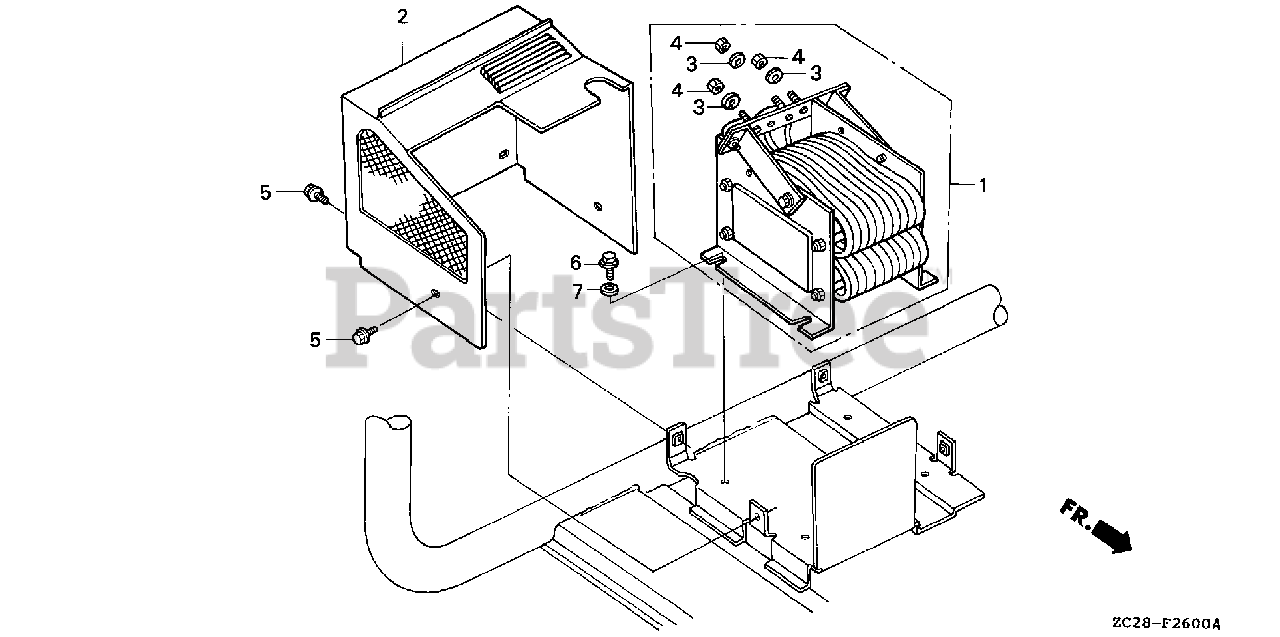

REACTOR Parts Diagram

  • Title

1

Honda 31160-ZC2-811

REACTOR ASSY.

$1574.99

$

Usually ships in 3-6 days

0

2

Honda 31195-ZC2-800

COVER, REACTOR

$

$

Not available

3

Honda 90505-ZA1-811

WASHER, SPRING (6MM)

Note: Use up to Frame SN 1003254.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 94111-06800

WASHER, SPRING (6MM)

Note: Use from Frame SN 1003255.

$1.49

$

Usually ships in 3-6 days

0

4

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 1003254.

$1.99

$

Usually ships in 3-6 days

0

4

Honda 94002-06080-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 1003255.

$1.99

$

Usually ships in 3-6 days

0

5

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

6

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

6

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
