EW170 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

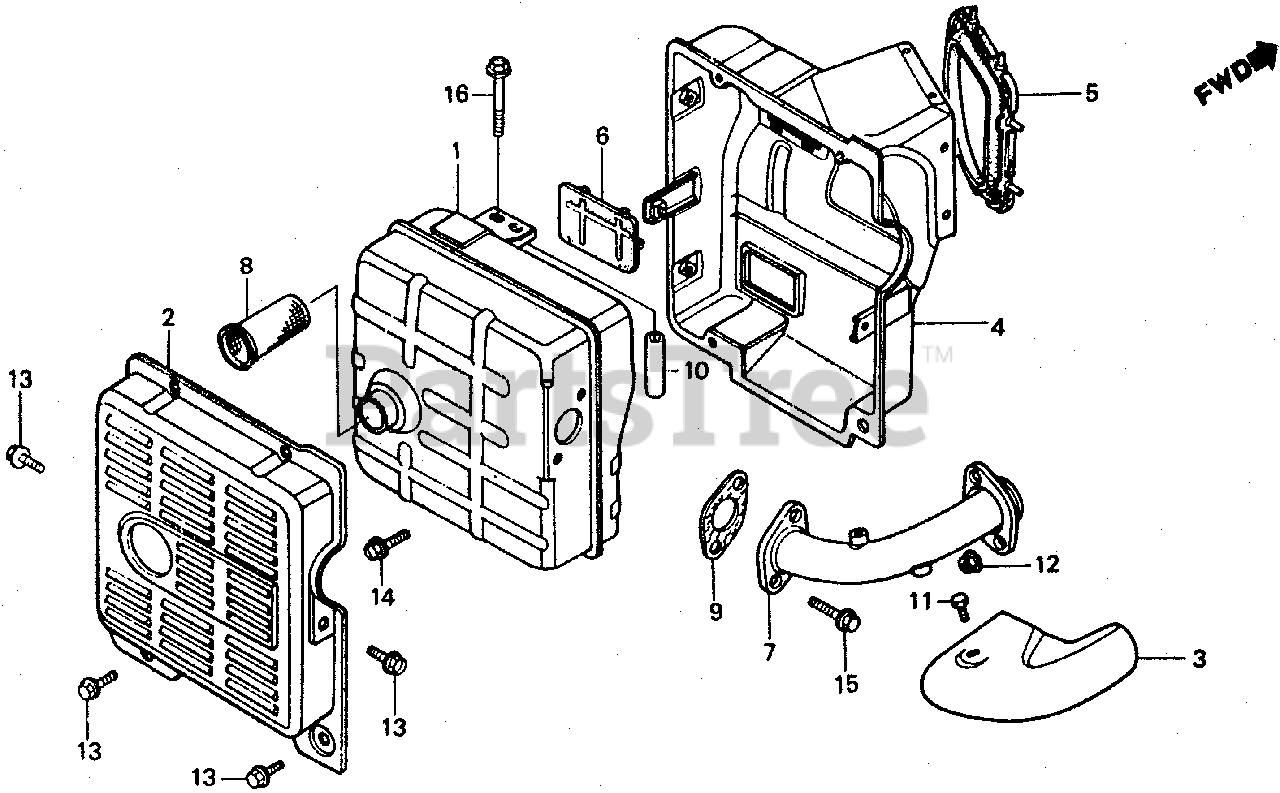

MUFFLER Parts Diagram

  • Title

1

Honda 183A1-899-631

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18320-899-000

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER (OUTER)

$

$

Not available

3

Honda 18323-ZA1-810

PROTECTOR, EX. PIPE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 18325-ZA1-810

PROTECTOR, MUFFLER (INNER)

$

$

Not available

5

Honda 18327-899-000

RUBBER, PROTECTOR (INNER)

$18.99

$

Usually ships in 3-6 days

0

6

Honda 18329-899-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

7

Honda 18330-ZA1-810

PIPE, EX. (NOT AVAILABLE)

$

$

Not available

8

Honda 18355-899-631

ARRESTER, SPARK

$

$

Not available

9

Honda 18333-ZB4-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE

$

$

Not available

10

Honda 91551-ZA1-000

COLLAR, MUFFLER

$

$

Currently unavailable

11

Honda 93101-06008-0A

BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

13

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

14

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

15

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 1 left!

0

15

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

16

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 14

0

16

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 14

0
