EW170 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CRANKCASE COVER + BALANCER WEIGHT Parts Diagram

Generator, Made in Japan

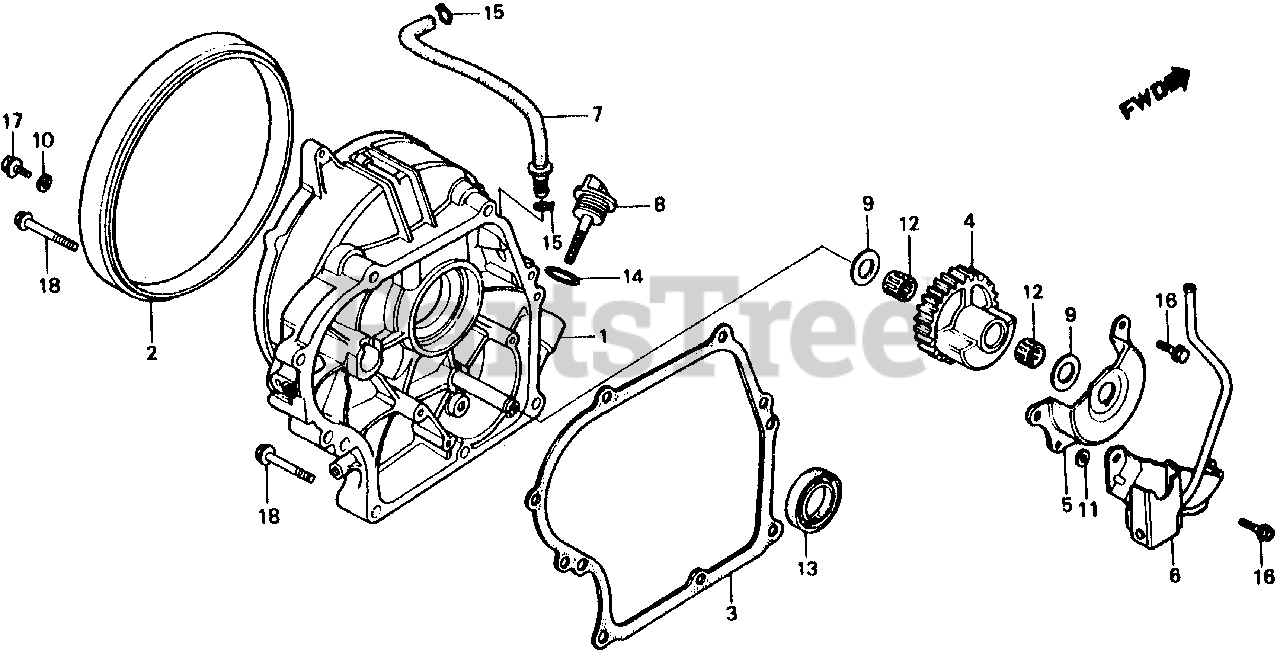

CRANKCASE COVER + BALANCER WEIGHT Parts Diagram

  • Title

1

Honda 113A0-ZA1-000

COVER, CRANKCASE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 11312-ZA1-610

RING, SPACER

$

$

Not available

3

Honda 11381-890-850

GASKET, CASE COVER

$

$

Not available

4

Honda 13350-890-010

WEIGHT, BALANCER

$127.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER

$

$

Currently unavailable

6

Honda 15525-890-893

CUP, OIL

$

$

Not available

7

Honda 15530-883-891

TUBE, OIL ALERT

$22.99

$

Usually ships in 3-6 days

0

8

Honda 15620-899-000

CAP, OIL FILLER

$

$

Not available

9

Honda 90451-166-000

SEE PART DETAILS - PRI; WASHER, THRUST (15MM)

$

$

Not available

9

Honda 90454-360-000

SEE PART DETAILS - SUP; WASHER, THRUST (15MM)

$

$

Currently unavailable

10

Honda 90488-700-000

WASHER A (8MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90545-044-000

WASHER, CRANK ARM

$2.49

$

Usually ships in 3-6 days

0

12

Honda 91021-890-000

BEARING, NEEDLE

$25.99

$

Usually ships in 3-6 days

0

13

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 13

0

16

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

17

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0

18

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 4 left!

0

18

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, only 4 left!

0
