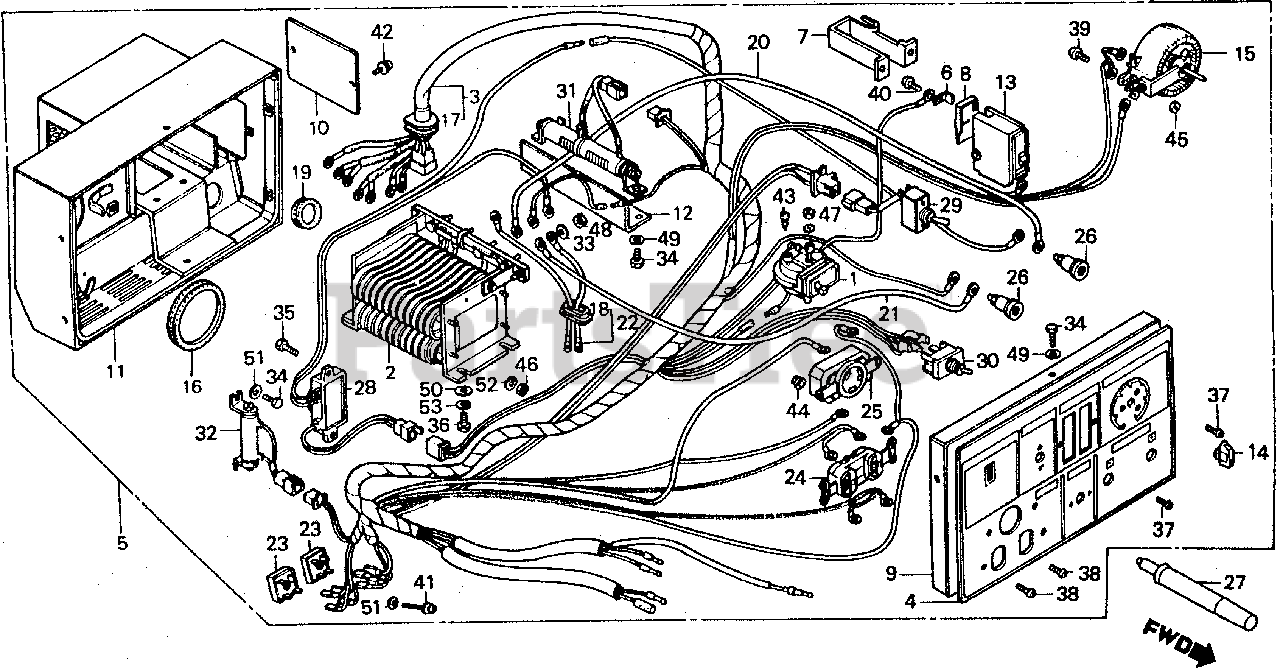

EW170 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CONTROL BOX ASSY. Parts Diagram

Generator, Made in Japan

CONTROL BOX ASSY. Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$117.99

$

Usually ships in 3-6 days

0

2

Honda 31160-ZA1-811

REACTOR ASSY.

$

$

Not available

3

Honda 31405-ZA1-832

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31408-ZA1-832

SEE PART DETAILS - PRI; PLATE, CONTROL BOX A (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

5

Honda 31410-ZA1-832H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

6

Honda 31414-ZA1-811

TERMINAL, BREAKER

$

$

Not available

7

Honda 31415-ZA1-870

SUPPORT, BREAKER

Note: Use up to Frame SN 1036386.

$

$

Not available

7

Honda 31415-ZA1-871

SUPPORT, BREAKER

Note: Use from Frame SN 1036387.

$

$

Not available

8

Honda 31416-ZA1-811

COVER, TERMINAL

$

$

Not available

9

Honda 31421-ZA1-832H

PANEL, CONTROL *R8* (A) (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31422-ZA1-811H

PLATE, SIDE *R8* (BRIGHT RED)

$

$

Not available

11

Honda 31425-ZA1-812H

CASE, CONTROL *R8* (BRIGHT RED)

$

$

Not available

12

Honda 31426-ZA1-811

PLATE, SEPARATOR

$

$

Not available

13

Honda 31431-ZA1-630

BREAKER, CIRCUIT (33.5A) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 31461-ZA1-811

KNOB, ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

15

Honda 31466-ZA1-811

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 31473-ZA1-811

GROMMET

$

$

Not available

17

Honda 31481-ZA1-811

GROMMET, A.C. WIRE

$

$

Not available

18

Honda 31481-880-000

GROMMET, A.C. WIRE

$7.99

$

Usually ships in 3-6 days

0

19

Honda 31482-ZA1-811

GROMMET, MAIN WIRE

$

$

Not available

20

Honda 31561-ZA1-831

WIRE W, TERMINAL A (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 31562-ZA1-811

WIRE, TERMINAL

$

$

Not available

22

Honda 31596-ZA1-831

WIRE HARNESS ASSY., D.C.

$

$

Not available

23

Honda 31710-ZA1-811

DIODE

$101.99

$

Usually ships in 3-6 days

0

24

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A)

$63.99

$

In Stock, only 3 left!

0

24

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

$63.99

$

In Stock, only 3 left!

0

25

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

26

Honda 32335-ZA1-830

RECEPTACLE, PANEL

$145.99

$

In Stock, only 2 left!

0

27

Honda 32336-ZA1-831

CONNECTOR, MALE

$92.99

$

Usually ships in 3-6 days

0

28

Honda 36210-ZA1-831

CONTROL UNIT ASSY., IDLE (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 36215-ZA1-811

SWITCH ASSY.

$

$

Currently unavailable

30

Honda 36221-ZA1-831

SWITCH ASSY.

$

$

Not available

31

Honda 37503-ZA1-811

RESISTOR, ADJUSTABLE

$

$

Not available

32

Honda 37505-ZA1-811

RESISTOR

$

$

Not available

33

Honda 90505-ZA1-811

WASHER, SPRING (6MM)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 92000-04010-0H

BOLT, HEX. (4X10)

$0.99

$

Usually ships in 3-6 days

0

35

Honda 92101-05014-0H

BOLT, HEX. (5X14)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 92101-08020-0H

BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

38

Honda 93500-04008-0H

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 93500-04010-3J

SCREW, PAN (4X10)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93892-04020-08

SCREW-WASHER (4X20)

$

$

Not available

42

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

43

Honda 93901-15110

SCREW, TAPPING (5X10) (NOT AVAILABLE)

$

$

Currently unavailable

44

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94001-04390-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

47

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

48

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

49

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.99

$

In Stock, only 3 left!

0

51

Honda 94103-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

52

Honda 94111-05800

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0

53

Honda 94111-08800

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
