EW170 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

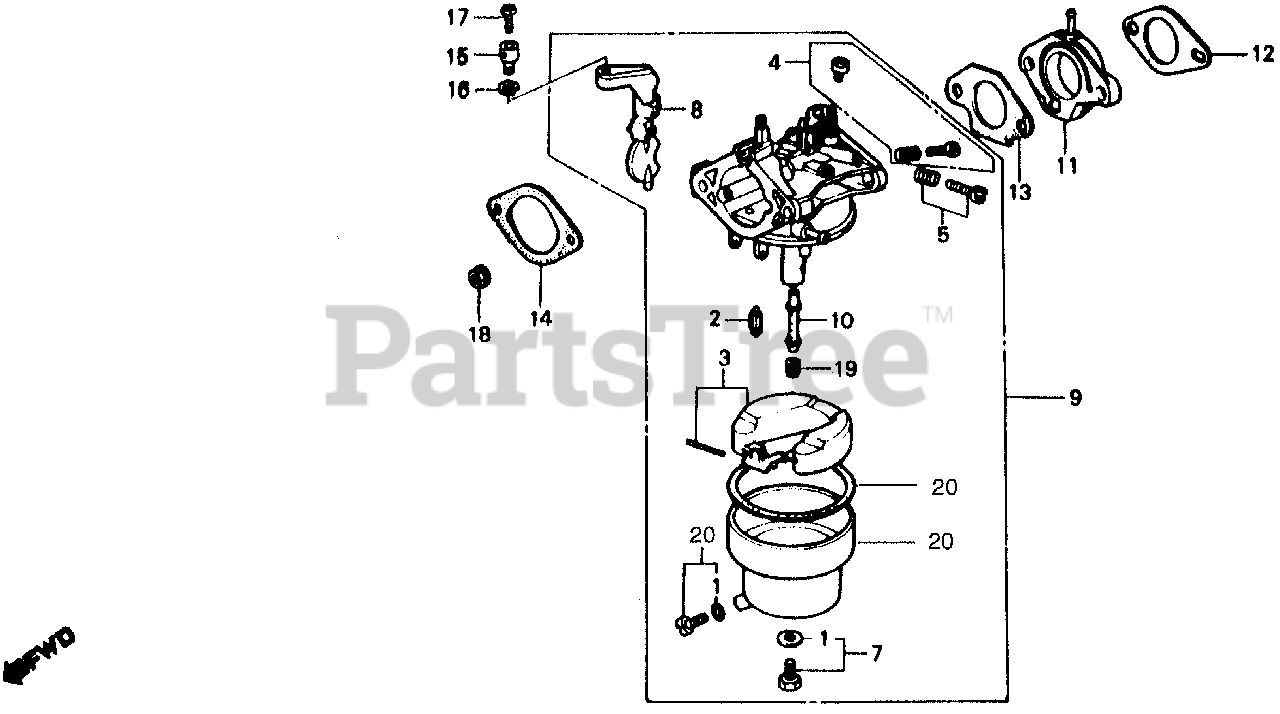

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-YA0-801

GASKET SET

$27.99

$

Usually ships in 3-6 days

0

2

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$48.99

$

In Stock, only 3 left!

0

3

Honda 16013-890-015

FLOAT SET

$42.99

$

Usually ships in 3-6 days

0

4

Honda 16016-YA0-801

SCREW SET A

Note: Use up to Engine SN BB35F E.

$23.99

$

Usually ships in 3-6 days

0

4

Honda 16016-YA0-801

SCREW SET A

Note: Use from Engine SN BB35F E.

$23.99

$

Usually ships in 3-6 days

0

5

Honda 16016-YA1-801

SEE PART DETAILS - PRI; SCREW SET A

$20.99

$

In Stock, only 1 left!

0

6

Honda 16024-890-731

SCREW SET, DRAIN

$

$

Not available

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB35F E.

$14.99

$

In Stock, Qty 8

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB35F E.

$14.99

$

In Stock, Qty 8

0

8

Honda 16044-890-005

CHOKE SET

$

$

Not available

9

Honda 16100-ZA1-604

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB35F E)

$

$

Not available

9

Honda 16100-ZA1-607

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Not available

10

Honda 16166-ZA1-015

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16211-893-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

12

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$1.49

$

Usually ships in 3-6 days

0

13

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

13

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

14

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

14

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

15

Honda 16617-890-010

HOLDER, CABLE

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90605-230-000

CIRCLIP (5MM)

$4.49

$

In Stock, only 2 left!

0

17

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 3 left!

0

18

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

19

Honda 99101-124-0920

JET, MAIN (#92)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0950

JET, MAIN (#95)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0980

JET, MAIN (#98)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 16015-896-505

CHAMBER SET, FLOAT

$43.99

$

Usually ships in 3-6 days

0
